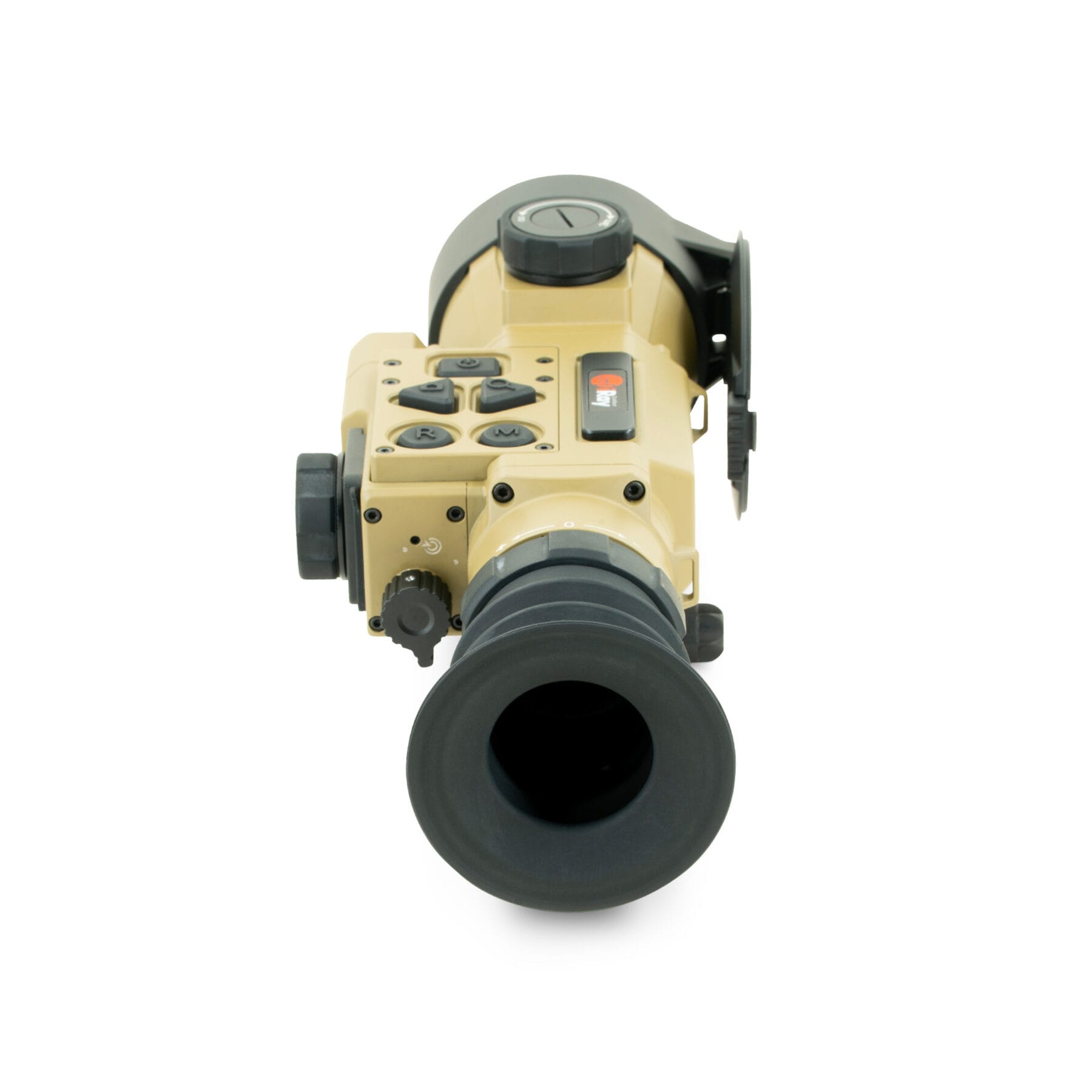

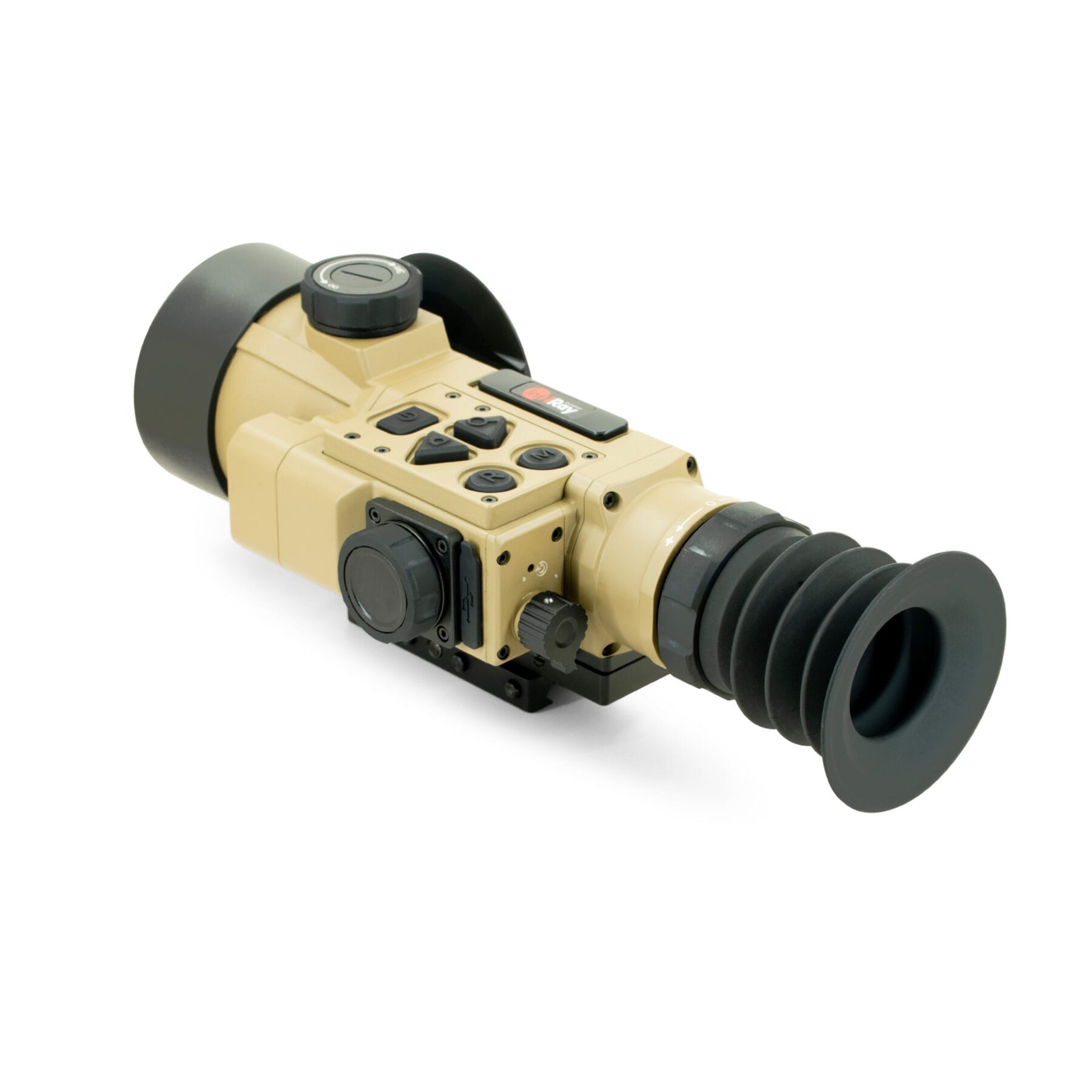

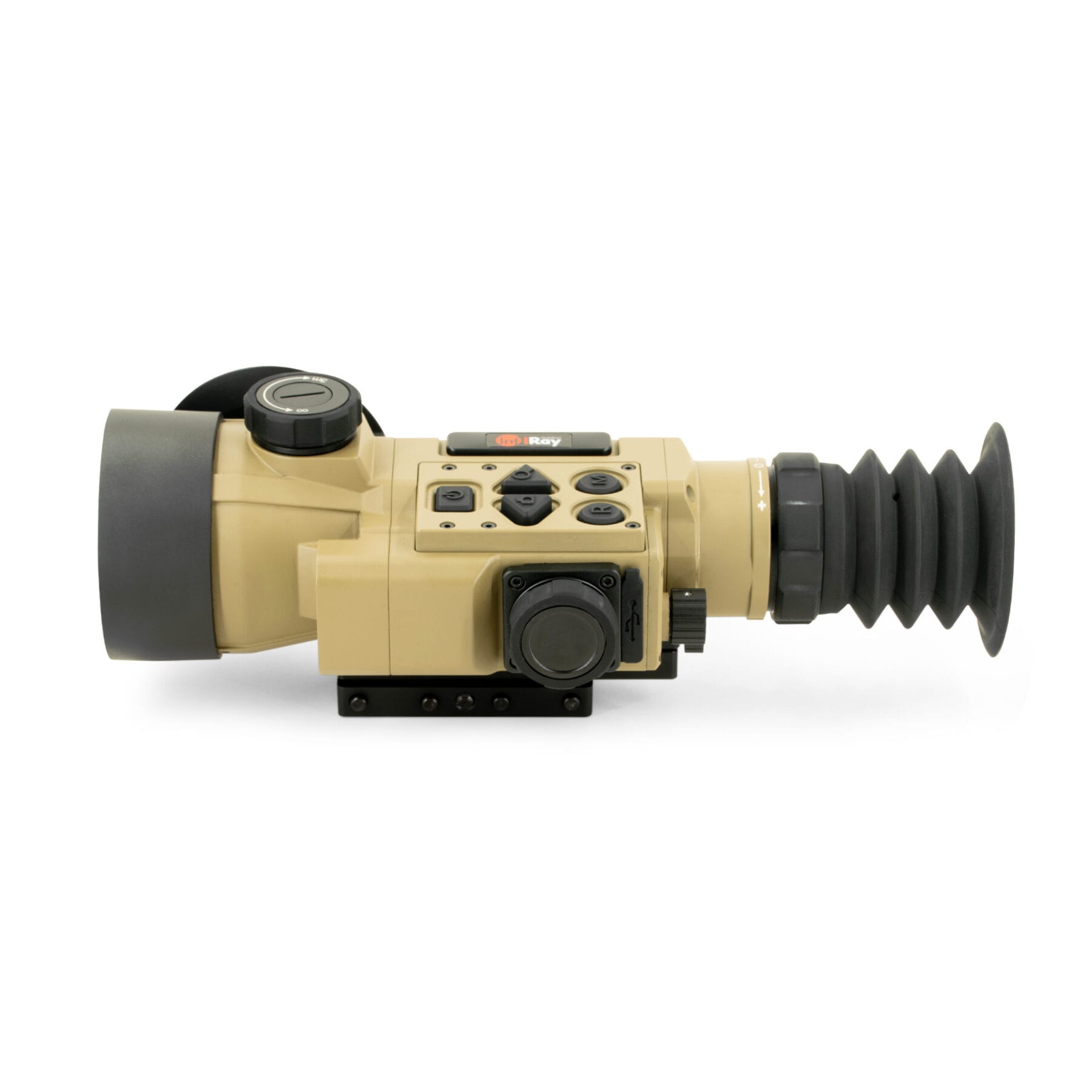

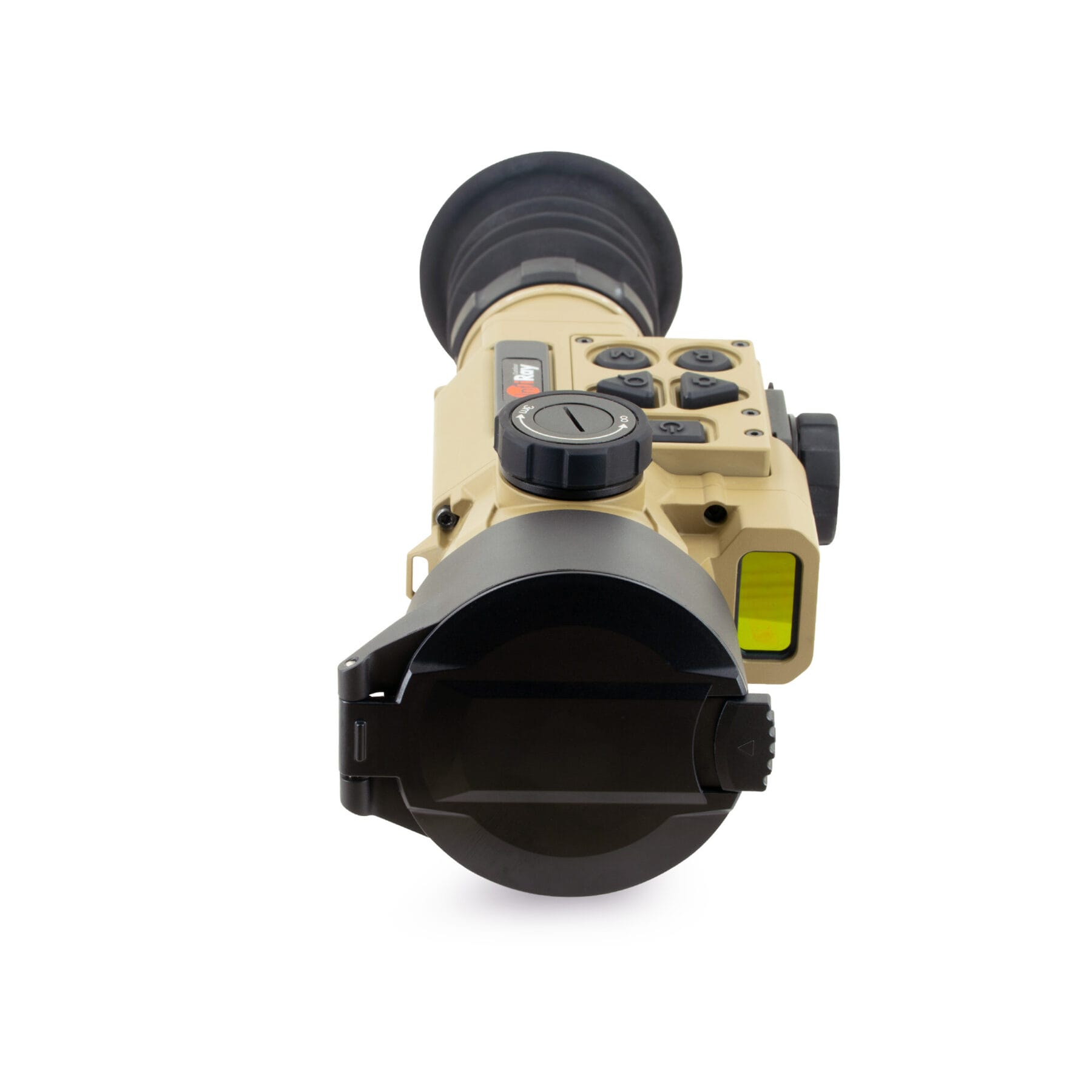

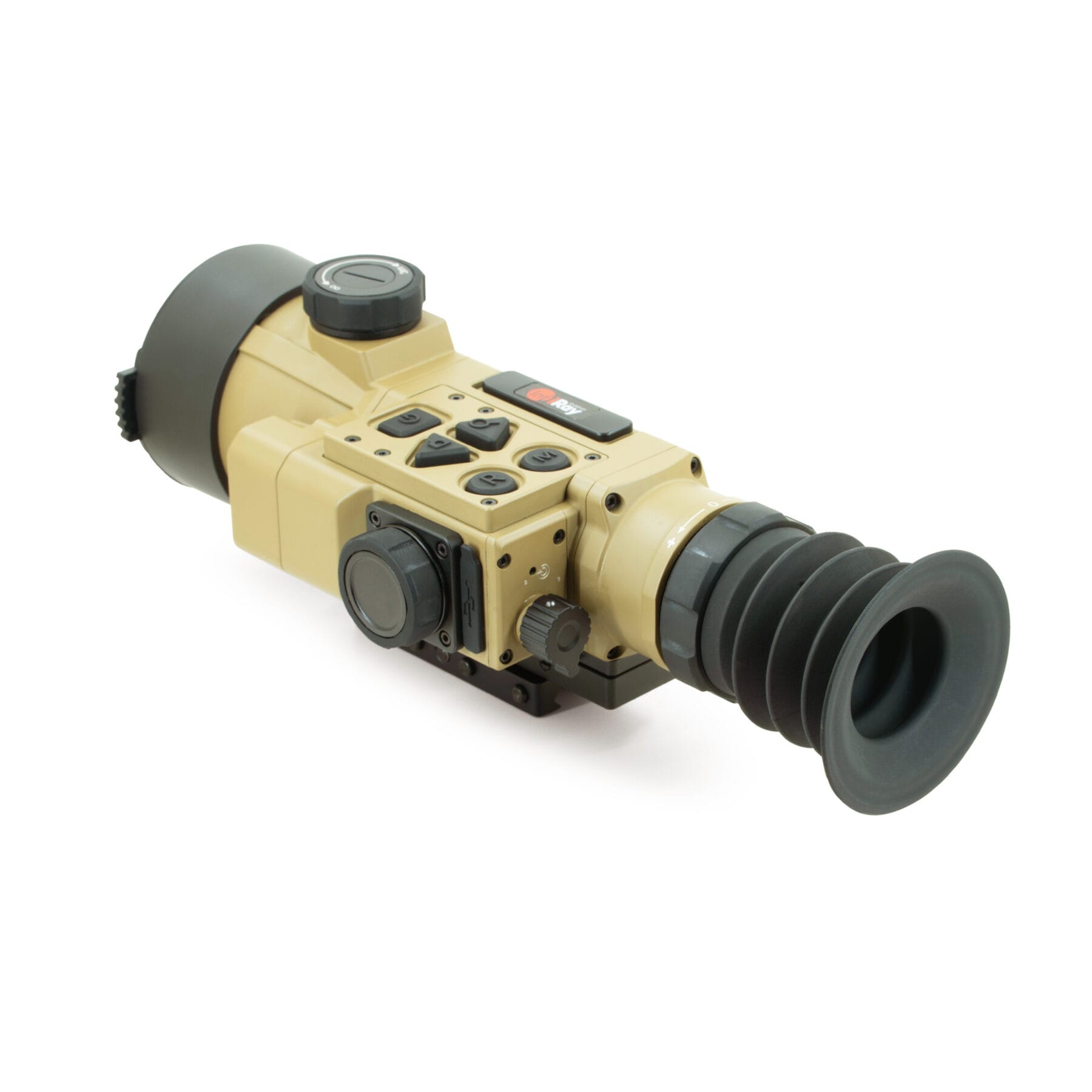

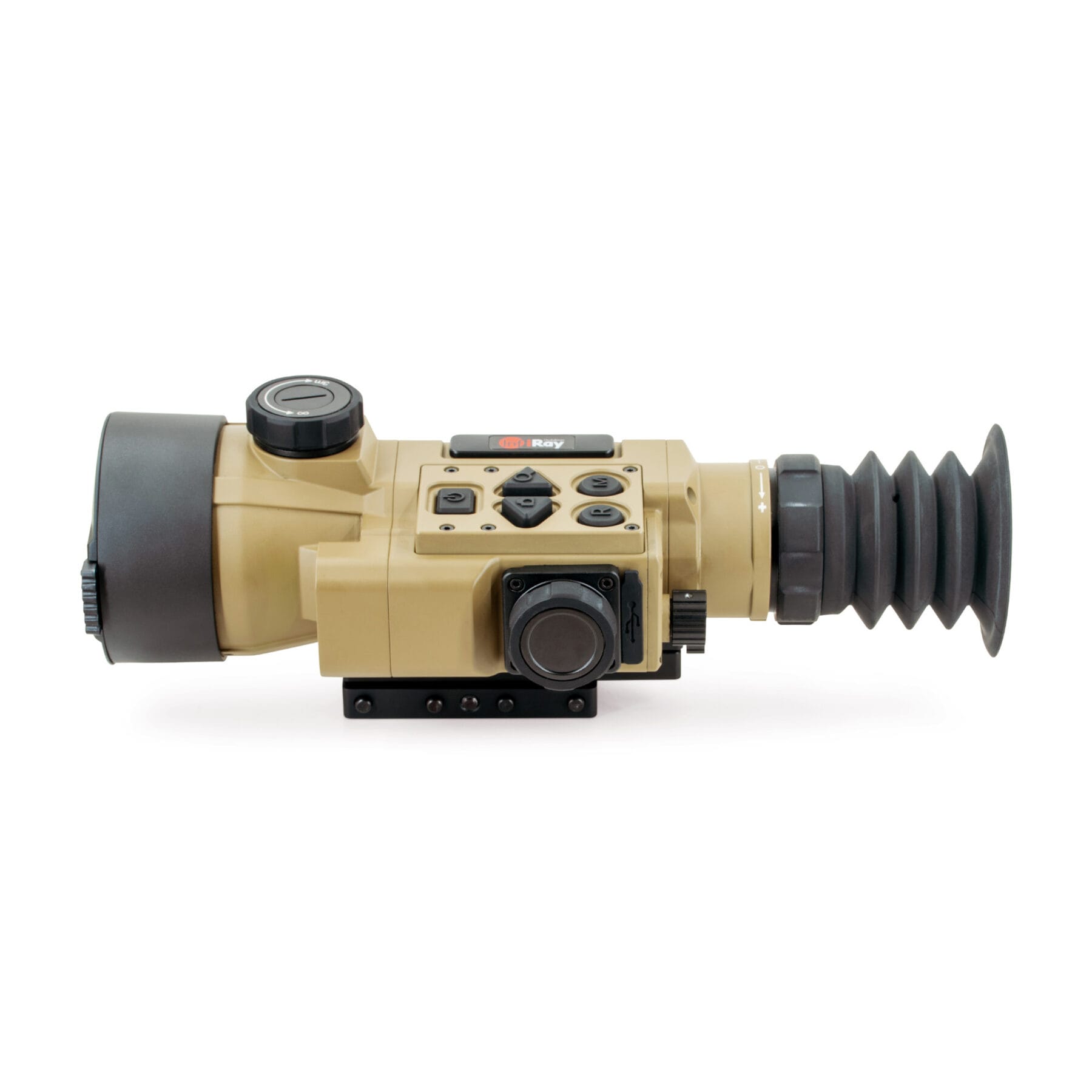

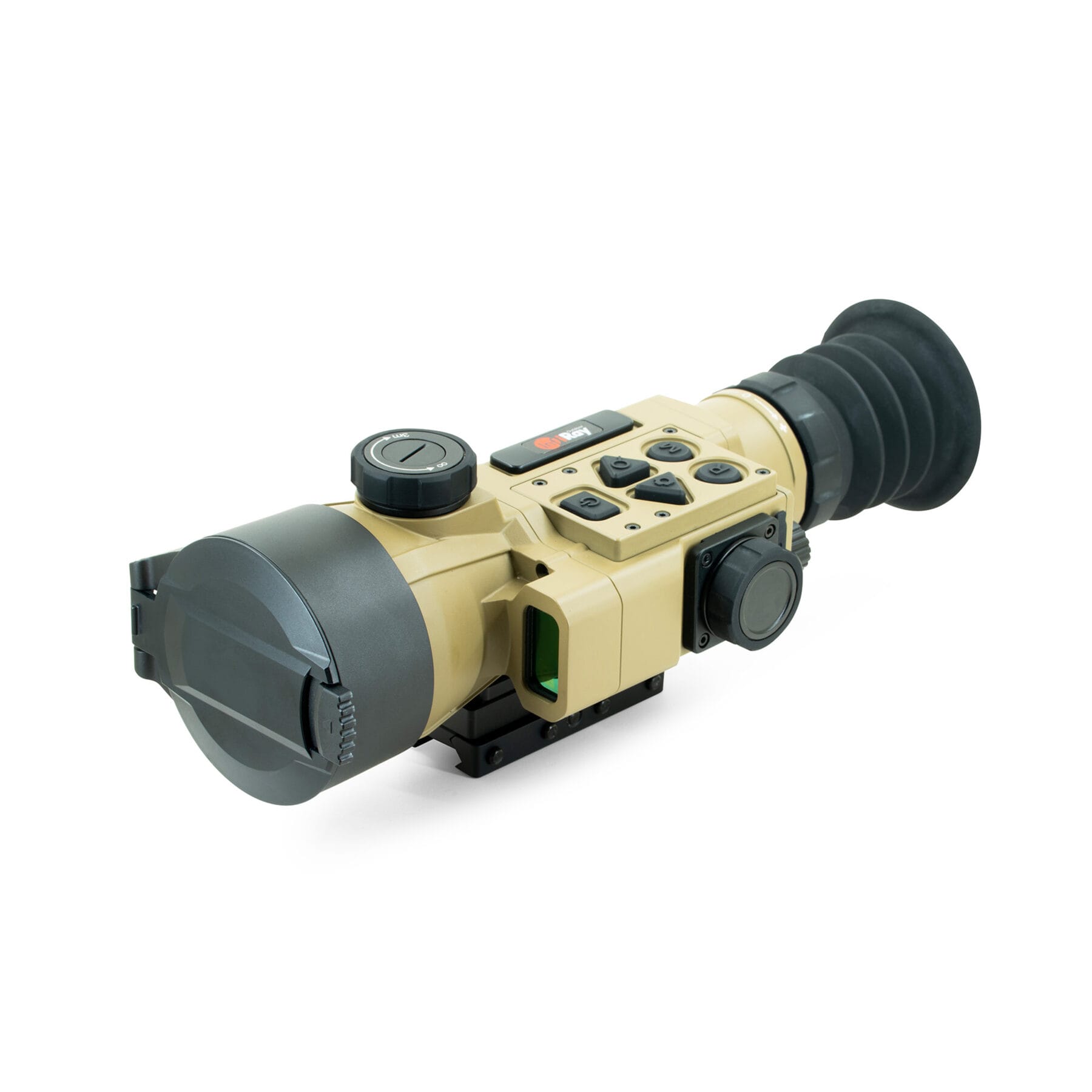

InfiRay Outdoor HCH50R Hybrid Compact 3.5x 640×480 LRF 50mm

Product Description

The Hybrid Compact (HCH50R) is the next evolution of the HYBRID series, combining advanced thermal performance with versatile functionality. It features a 50 mm F/0.9 lens and the industry’s first available 10 µm thermal sensor. The 640×480 InfiRay sensor with a ≤15 mK NETD rating delivers exceptional thermal sensitivity and clarity.

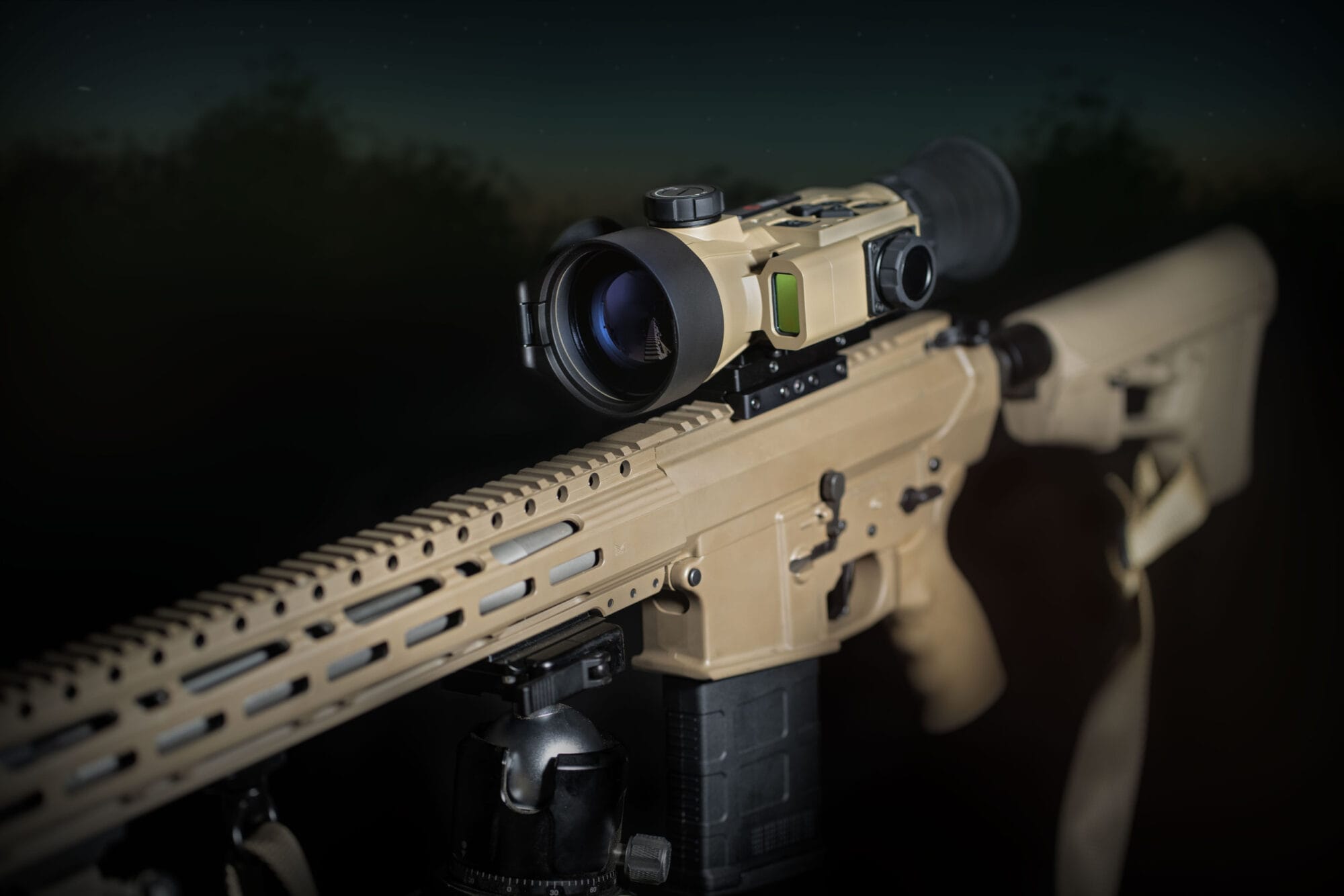

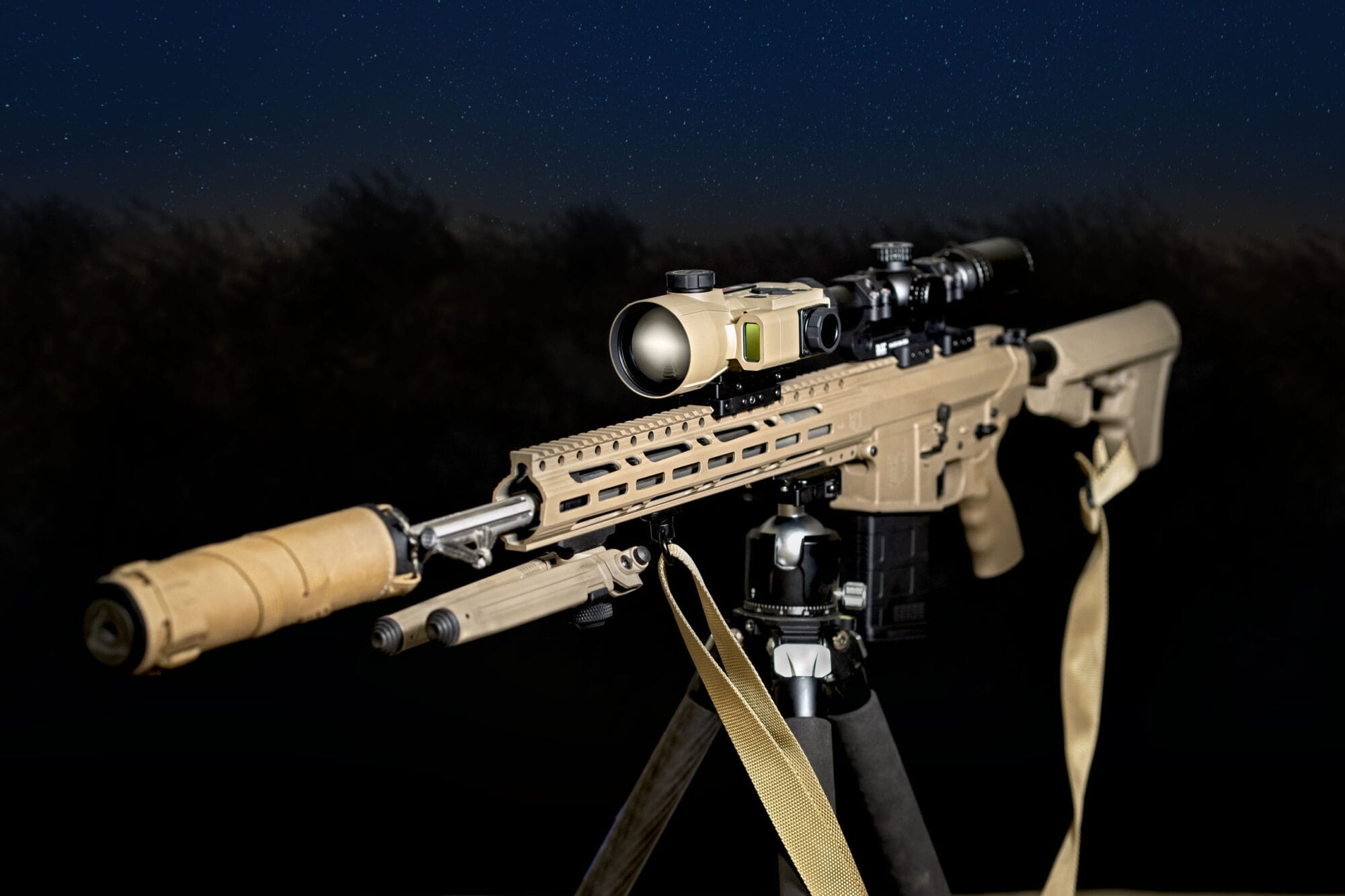

The Hybrid Compact functions as a weapon sight, thermal clip-on, or handheld monocular. Its 3.5x native magnification and 60 mm eye relief provide a comfortable, immersive view. The “Fast Engine” low-latency architecture (15 ms) and 60 Hz refresh rate ensure a smooth, life-like image, improving target tracking and accuracy. A 1440×1080 AMOLED display provides a crisp image, while the integrated laser rangefinder and ballistic calculator adjust for drop based on target distance. Built-in photo and video recording with 64GB of internal storage lets you capture every detail.

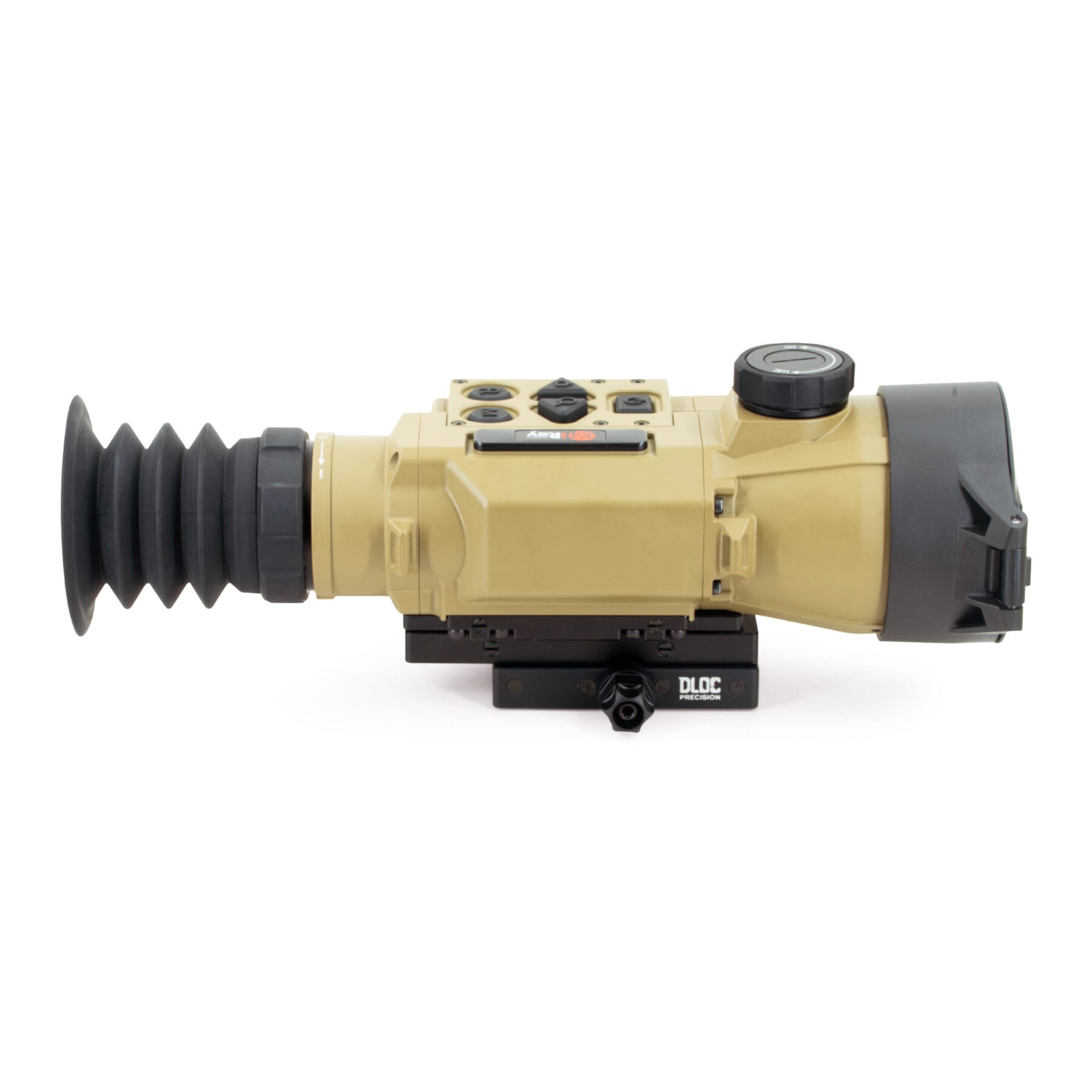

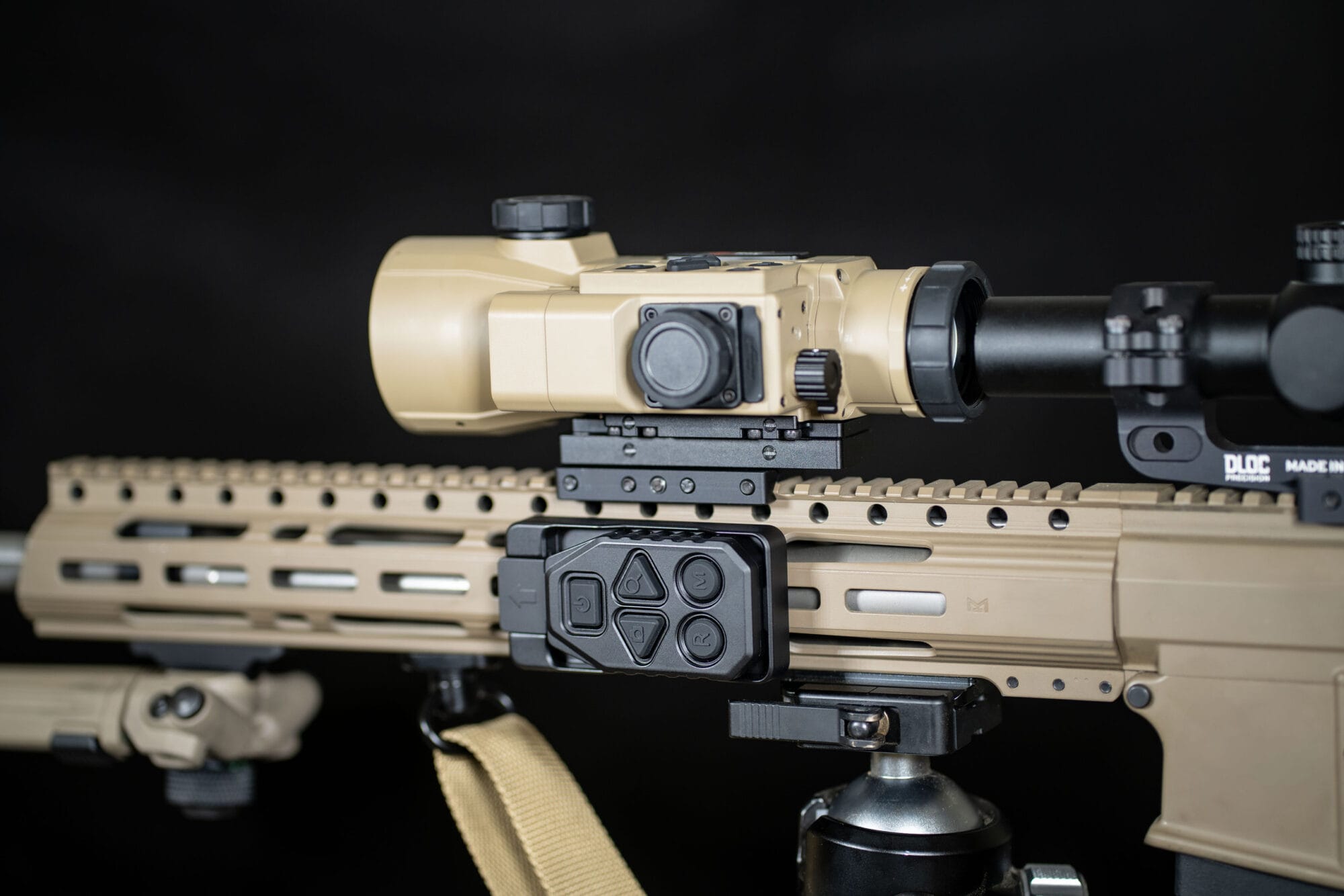

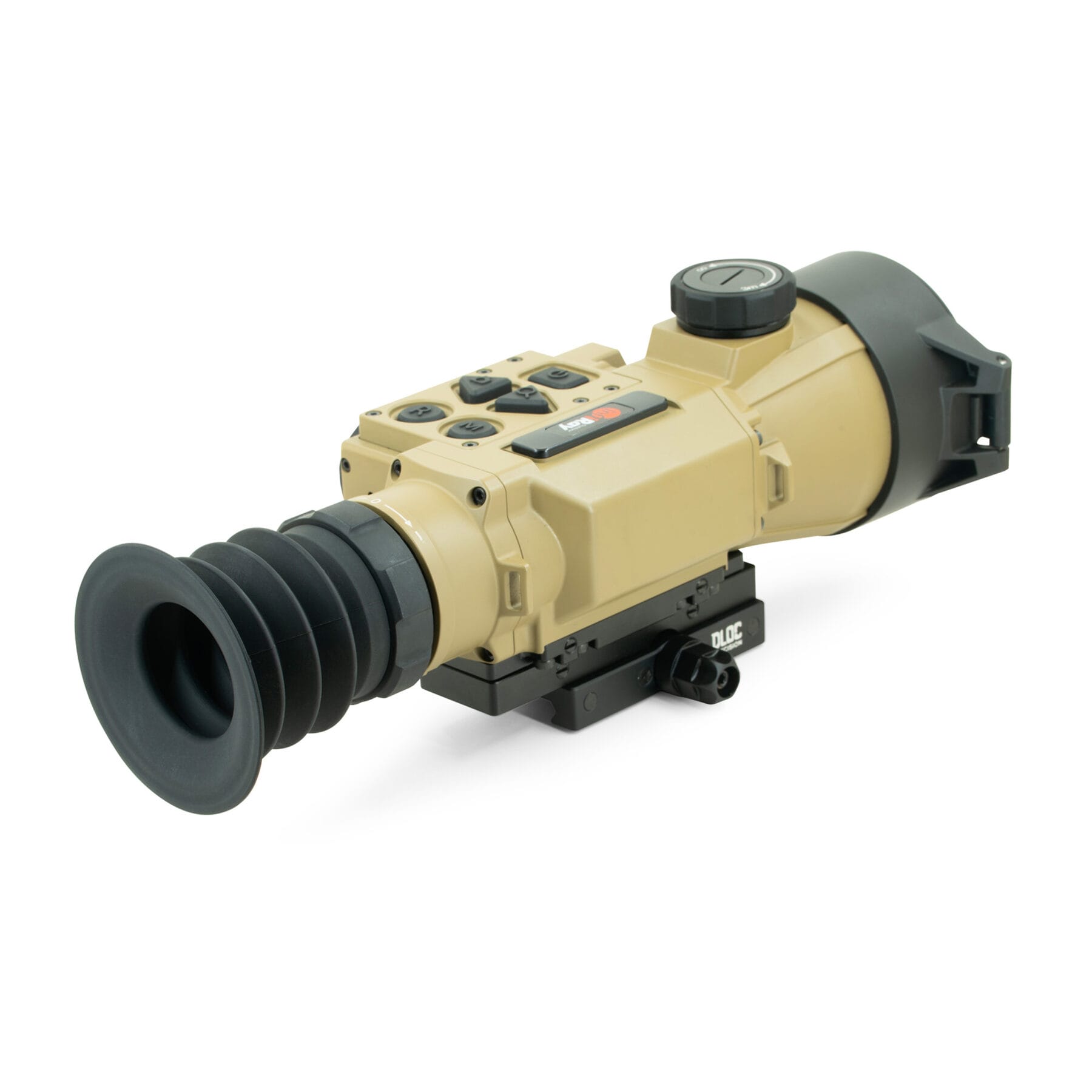

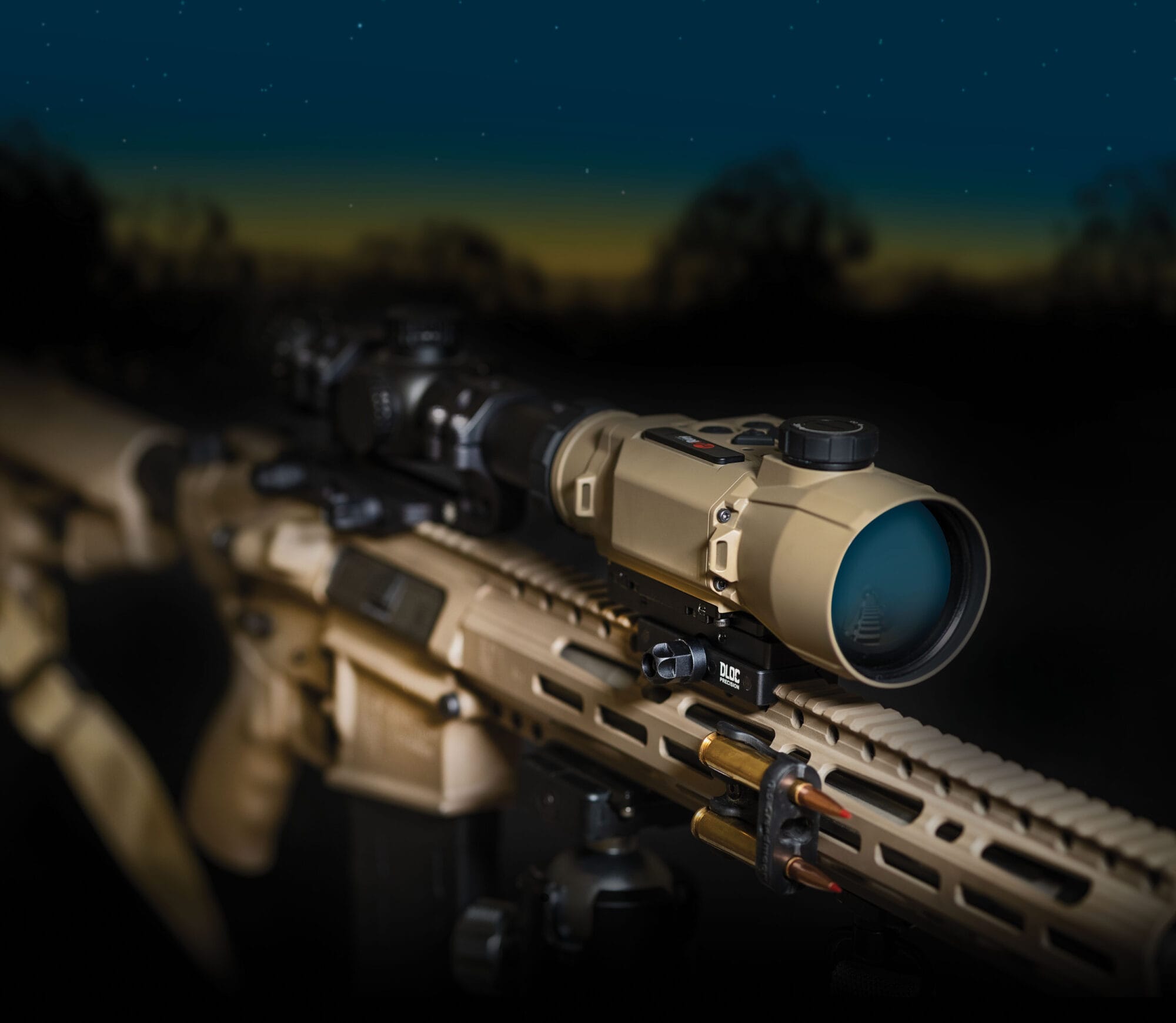

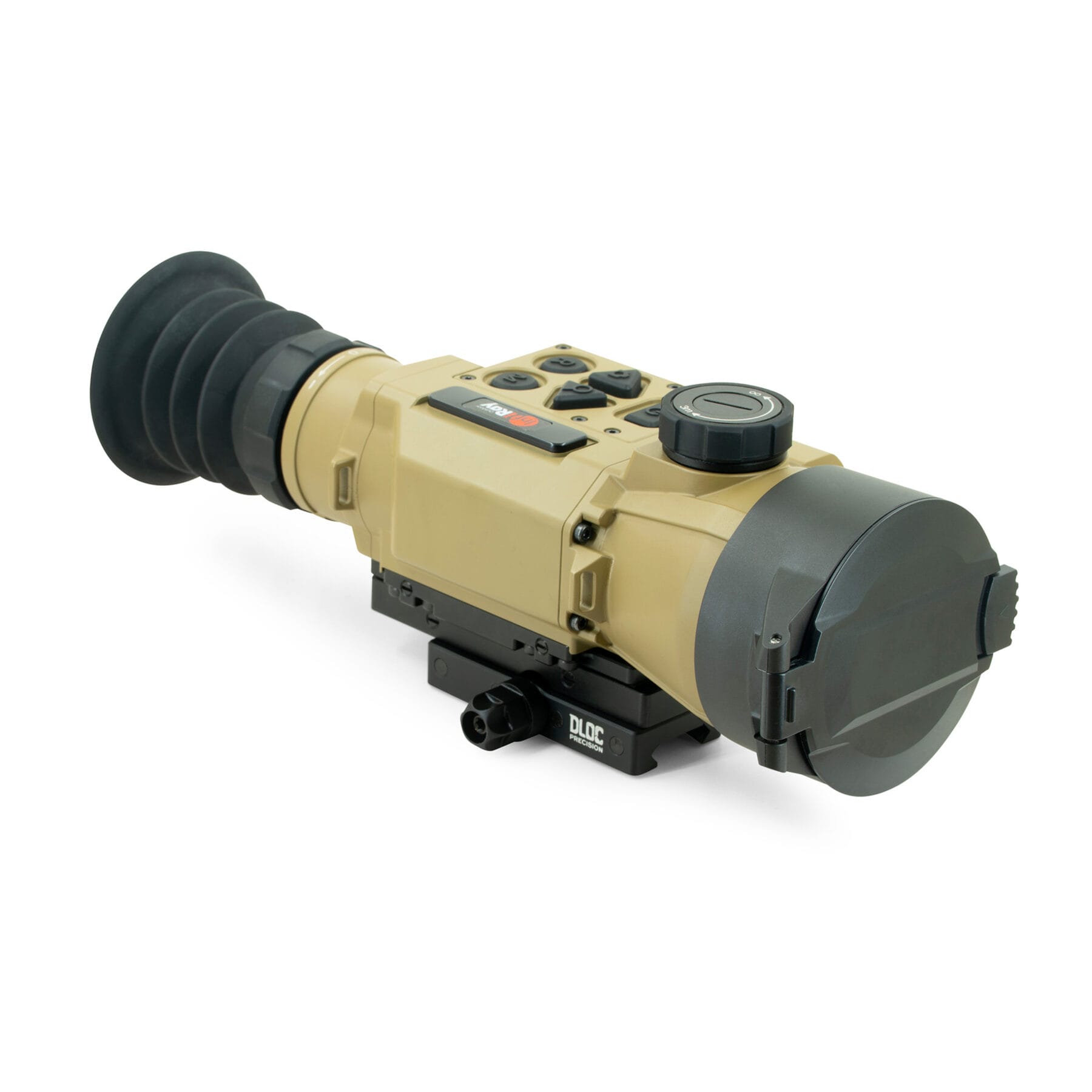

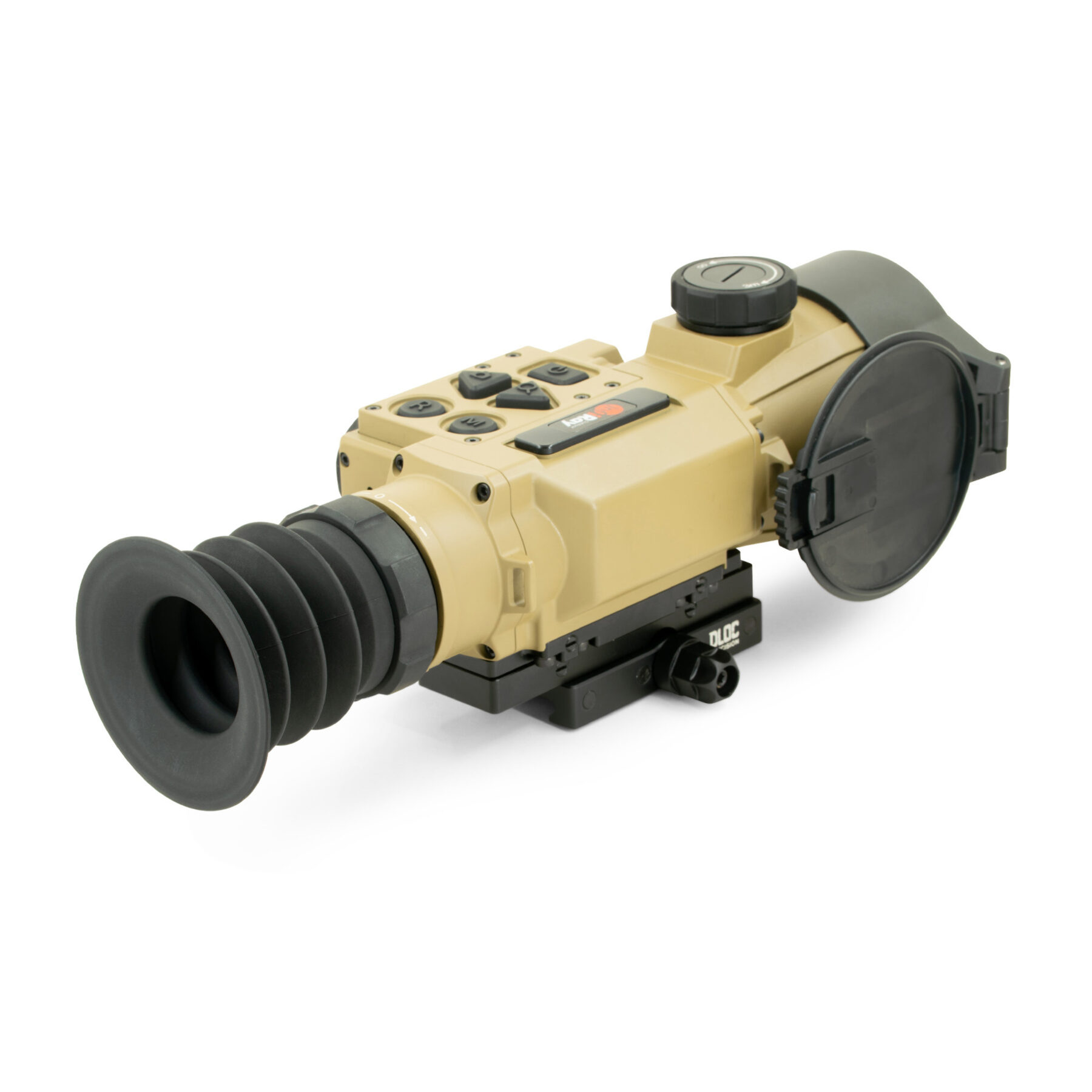

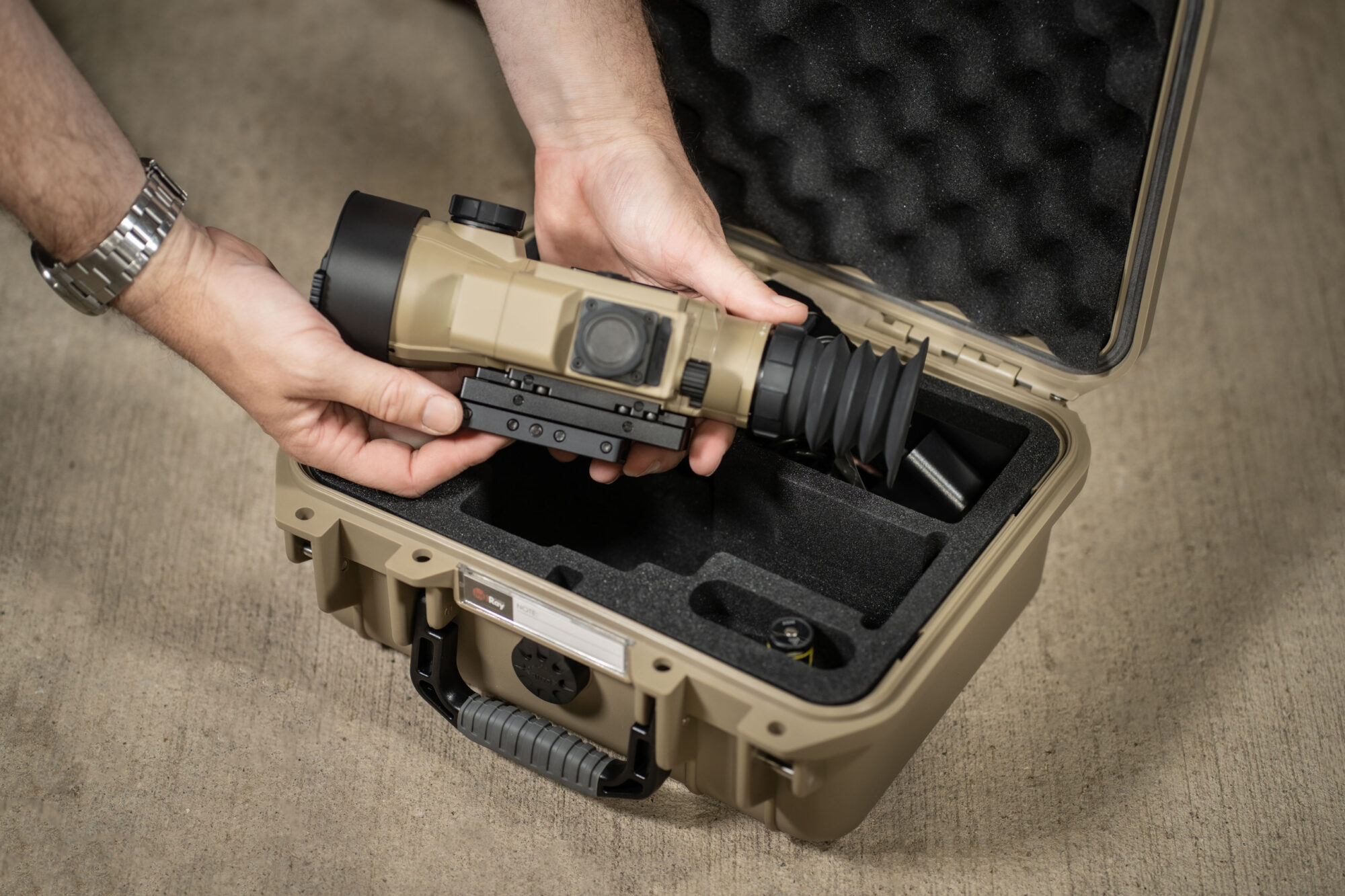

Like other HYBRID series models, the HCH50R can be used as a clip-on thermal (with day scope magnification up to 10×) or as a dedicated thermal weapon sight. The industry’s first available 10 µm sensor increases pixel density by 44%, providing high resolution while reducing the overall size of the unit. Powered by a 18650 cell rechargeable battery, the HCH50R includes a Bluetooth remote for seamless clip-on control and a secure DLOC Picatinny rail mount for quick, repeatable attachment. The HCH50R comes with a durable hard case for reliable protection in the field.

High-Level Product Specs

• Objective Focal Length: 50mm

• Detection Range: 3060 Yards

• Optical Magnification: 3.5X

• Device Technology: Thermal Imaging

• Sensor Resolution: 640×480

• Sensor Pixel Size: 10μm

• Digital Magnification: 8X

• Objective F#: 0.9

• Objective Diameter: 50mm

• Sensor Frame Rate: 60hz/30hz

• Onboard Recording: Yes

Detailed Product Specs

Optics

• Objective Focal Length: 50mm

• Detection Range: 3060 Yards

• Optical Magnification: 3.5X

• Display Type: AMOLED

• Eye Relief: 60mm

• Digital Magnification: 8X

• Diopter Range: -5 to +5

• Vertical Angular Field of View: 5.5°

• Horizontal Angular Field of View: 7.3°

• Focusing Mechanism: Manual Focus

• Objective F#: 0.9

• Objective Diameter: 50mm

• Objective Lens Material: Germanium

• Display Resolution: 1440×1080
