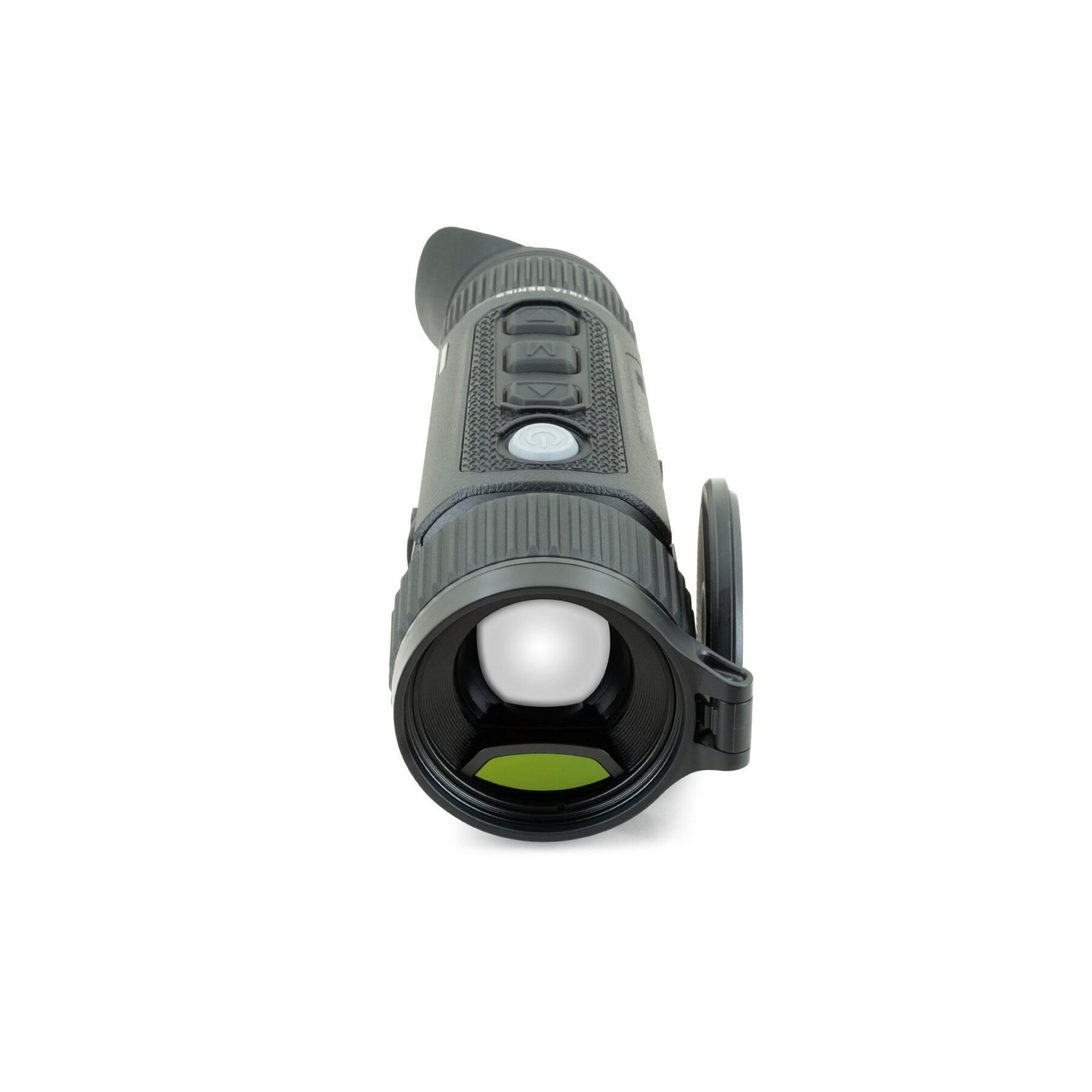

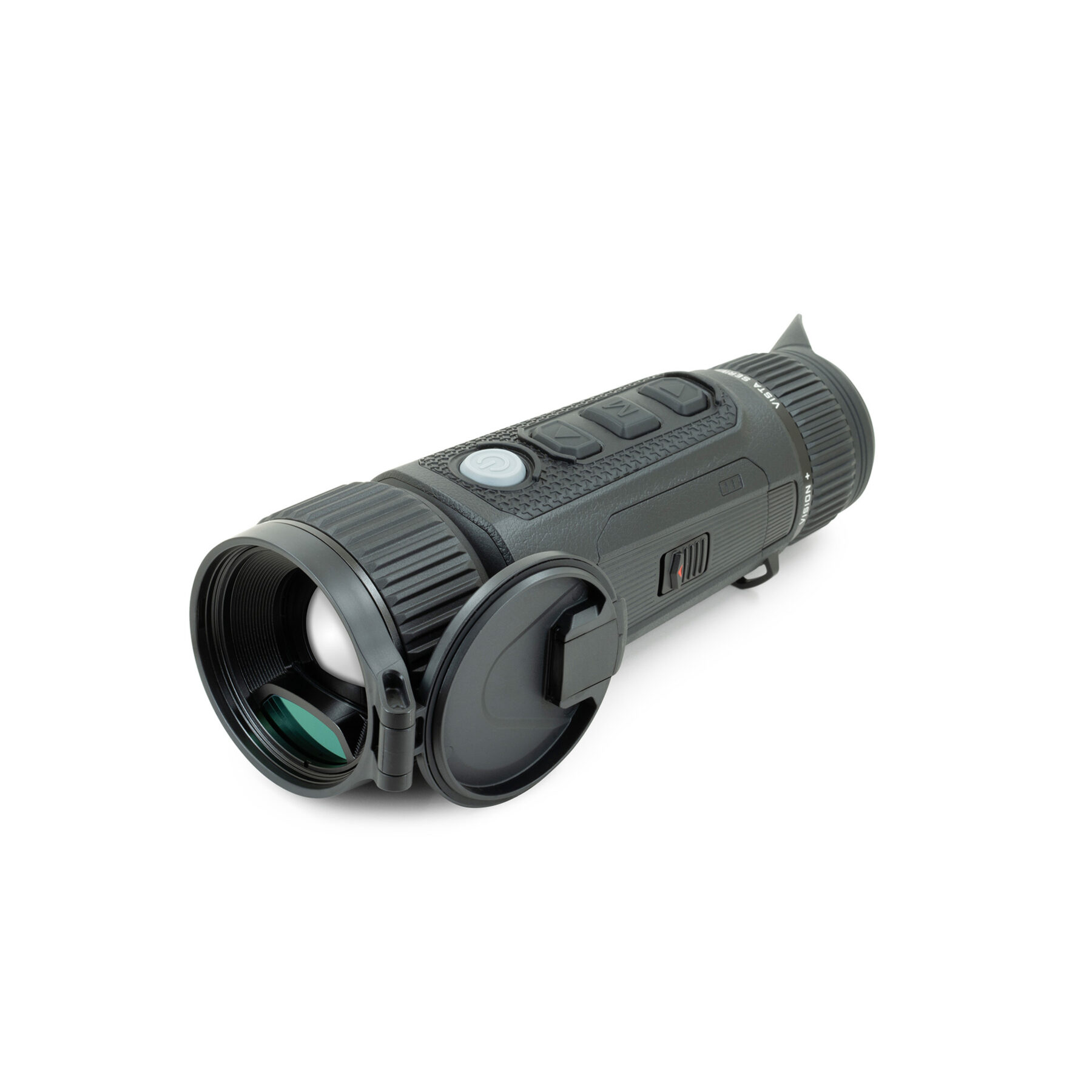

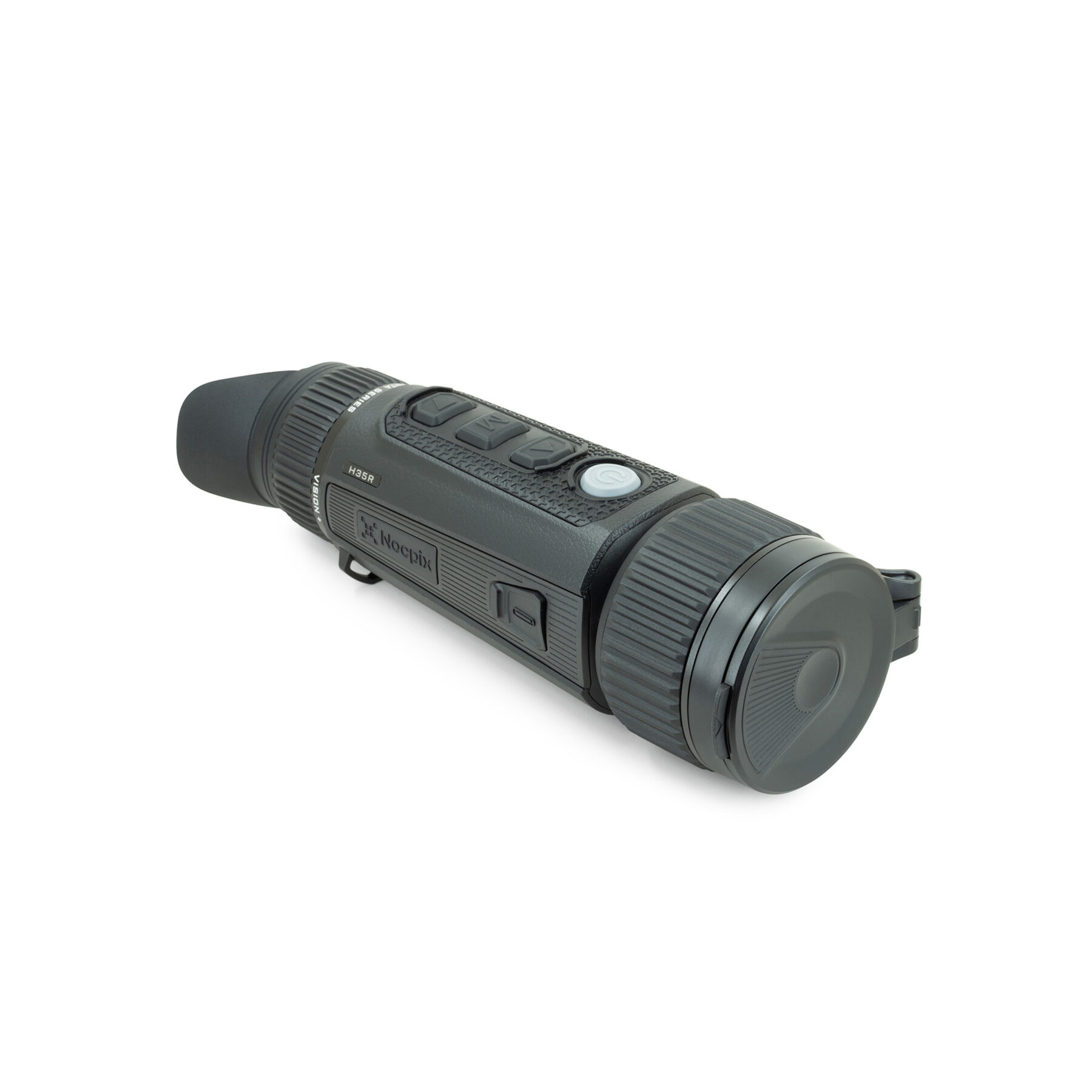

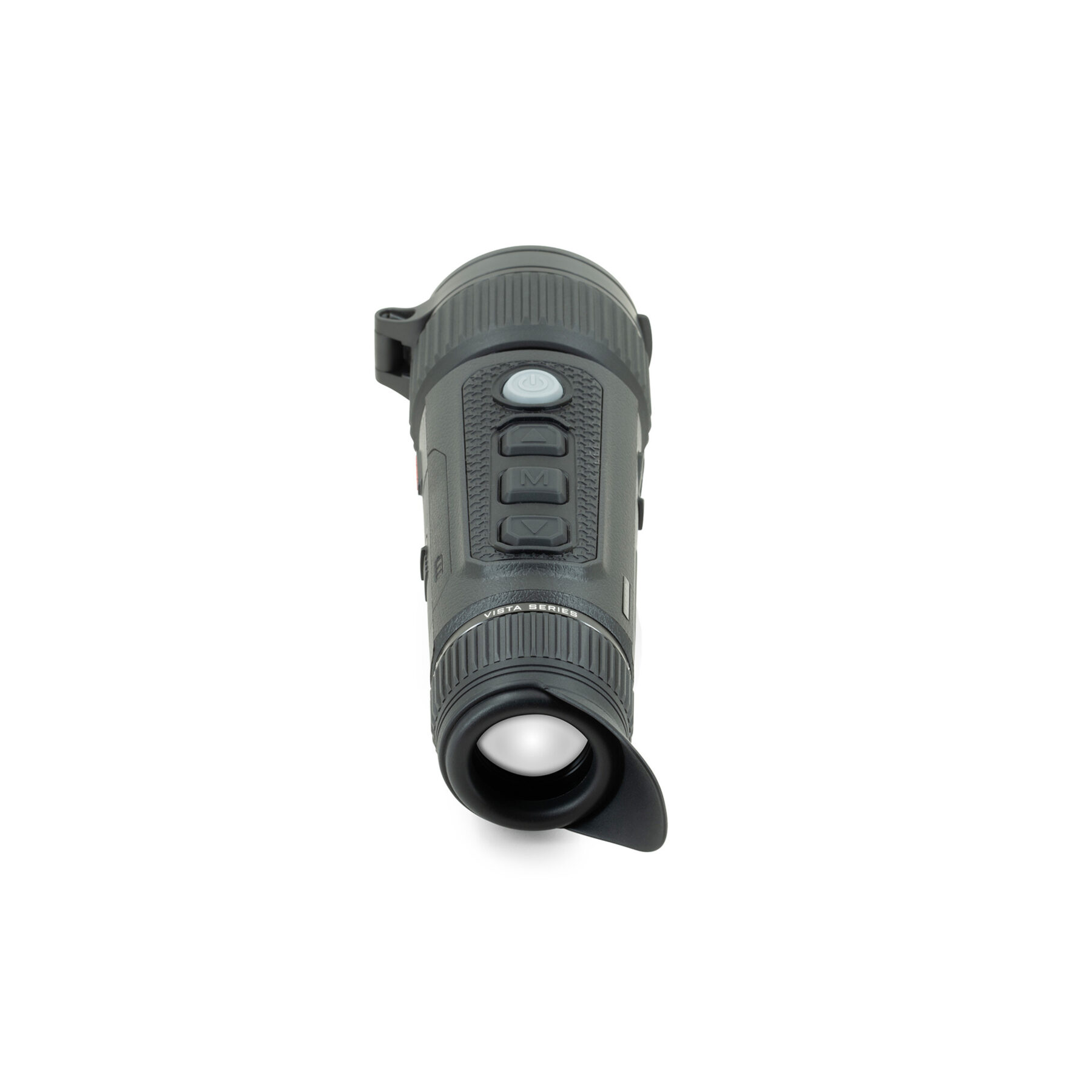

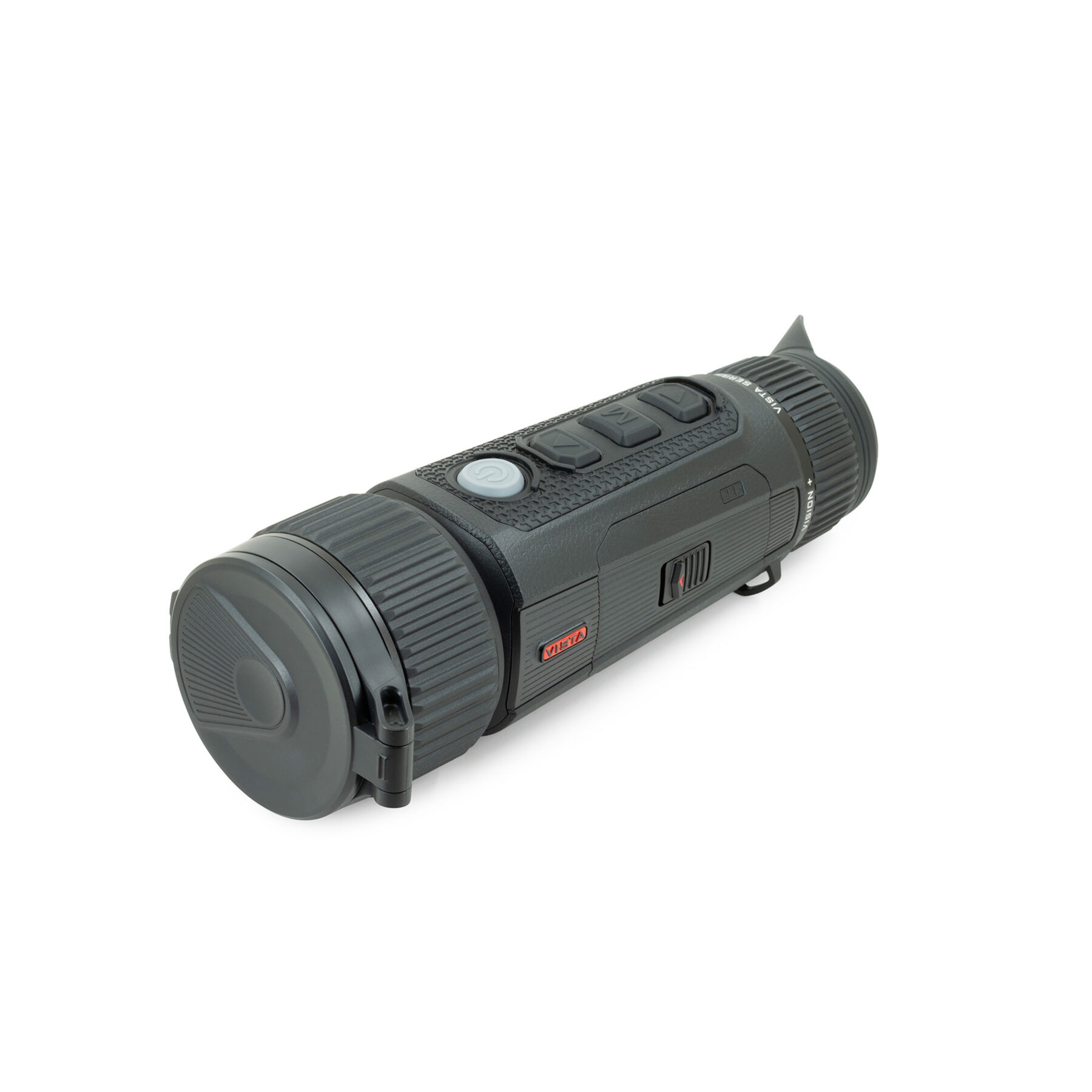

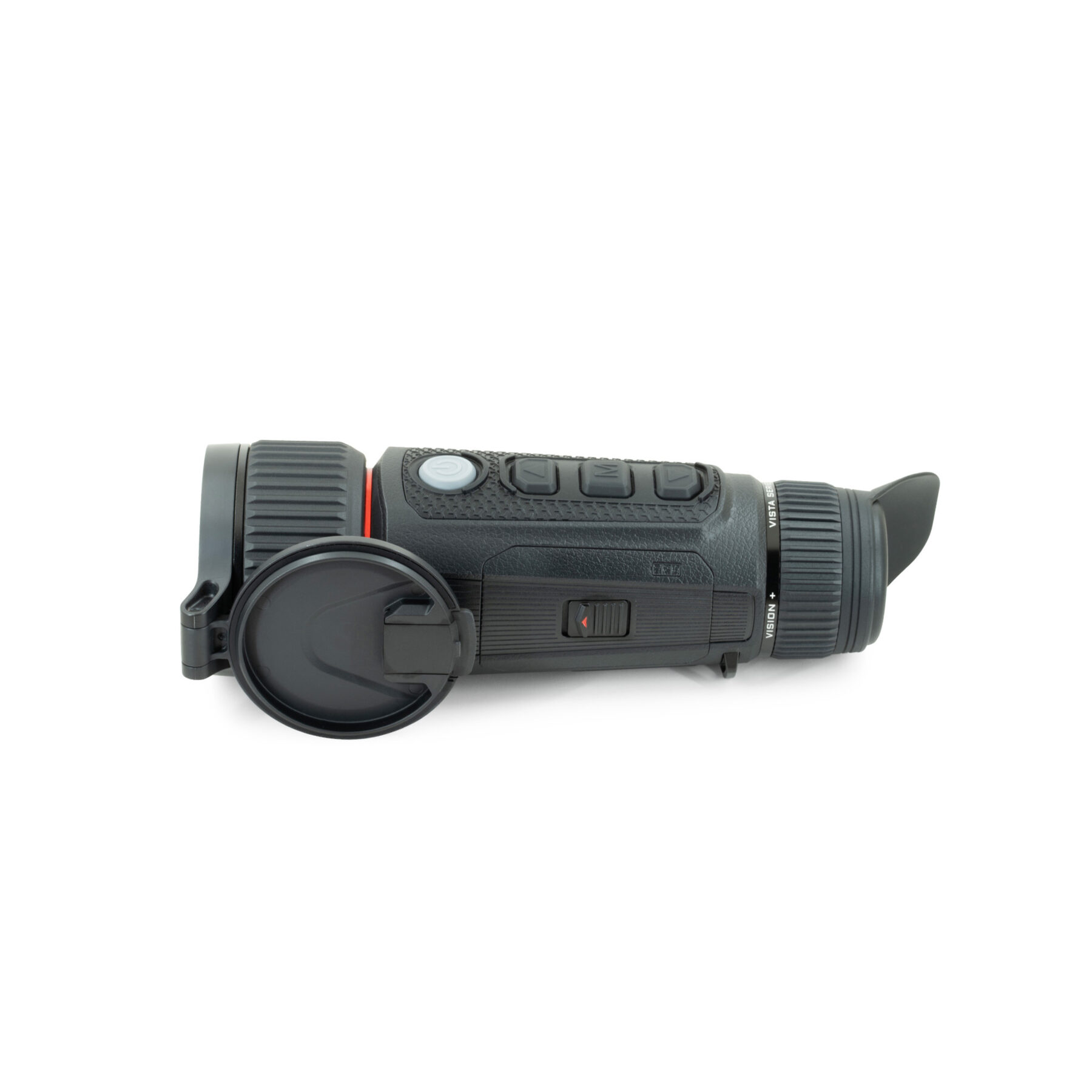

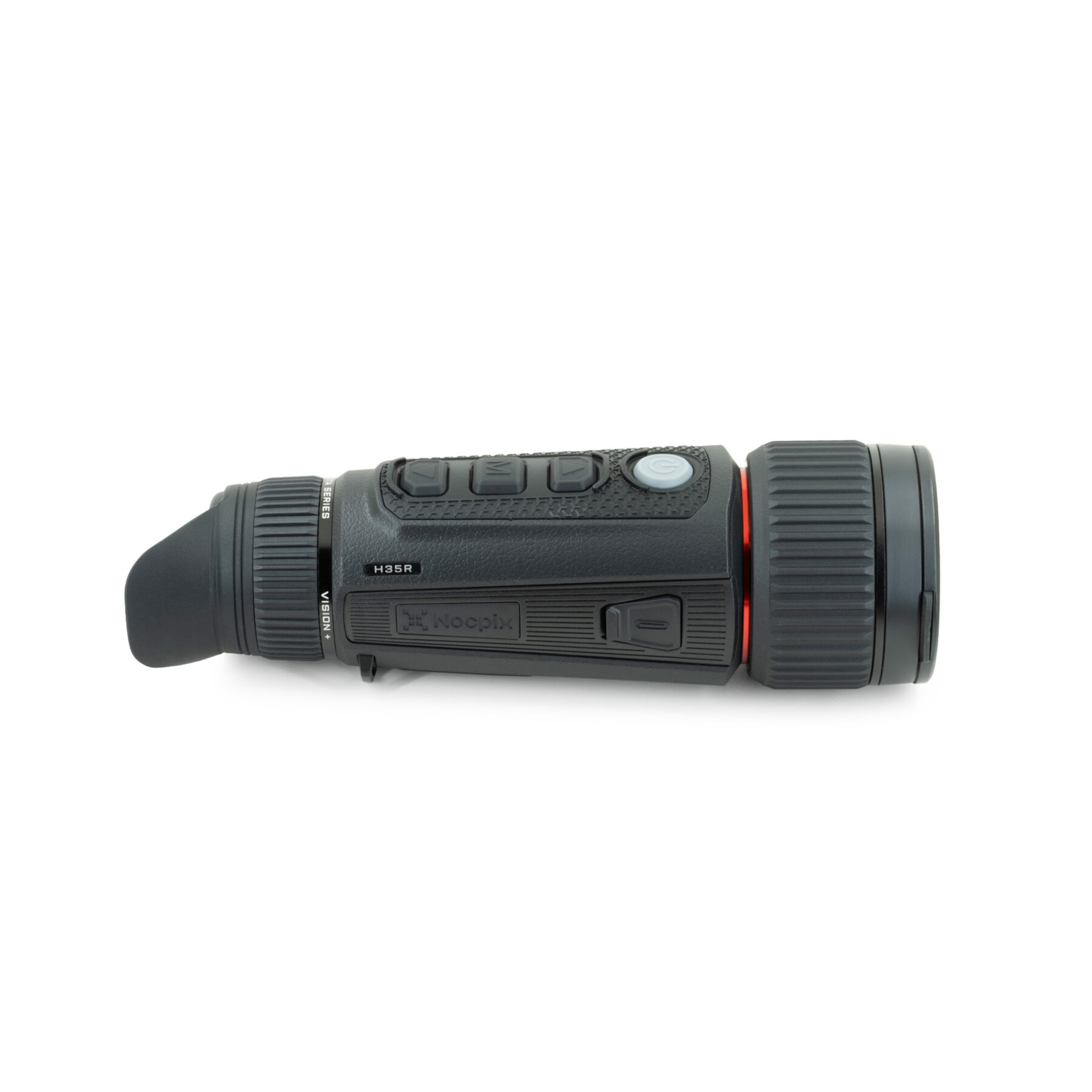

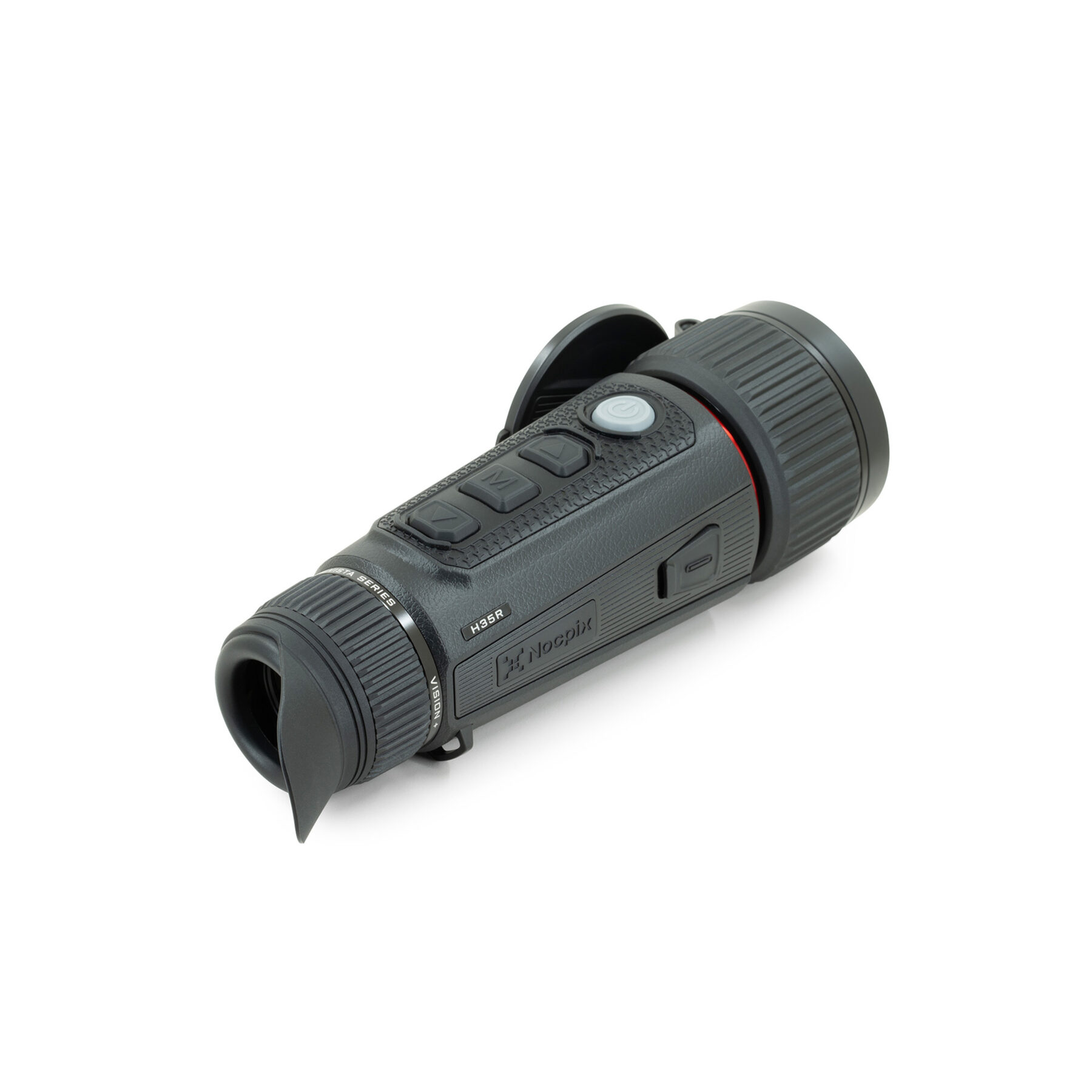

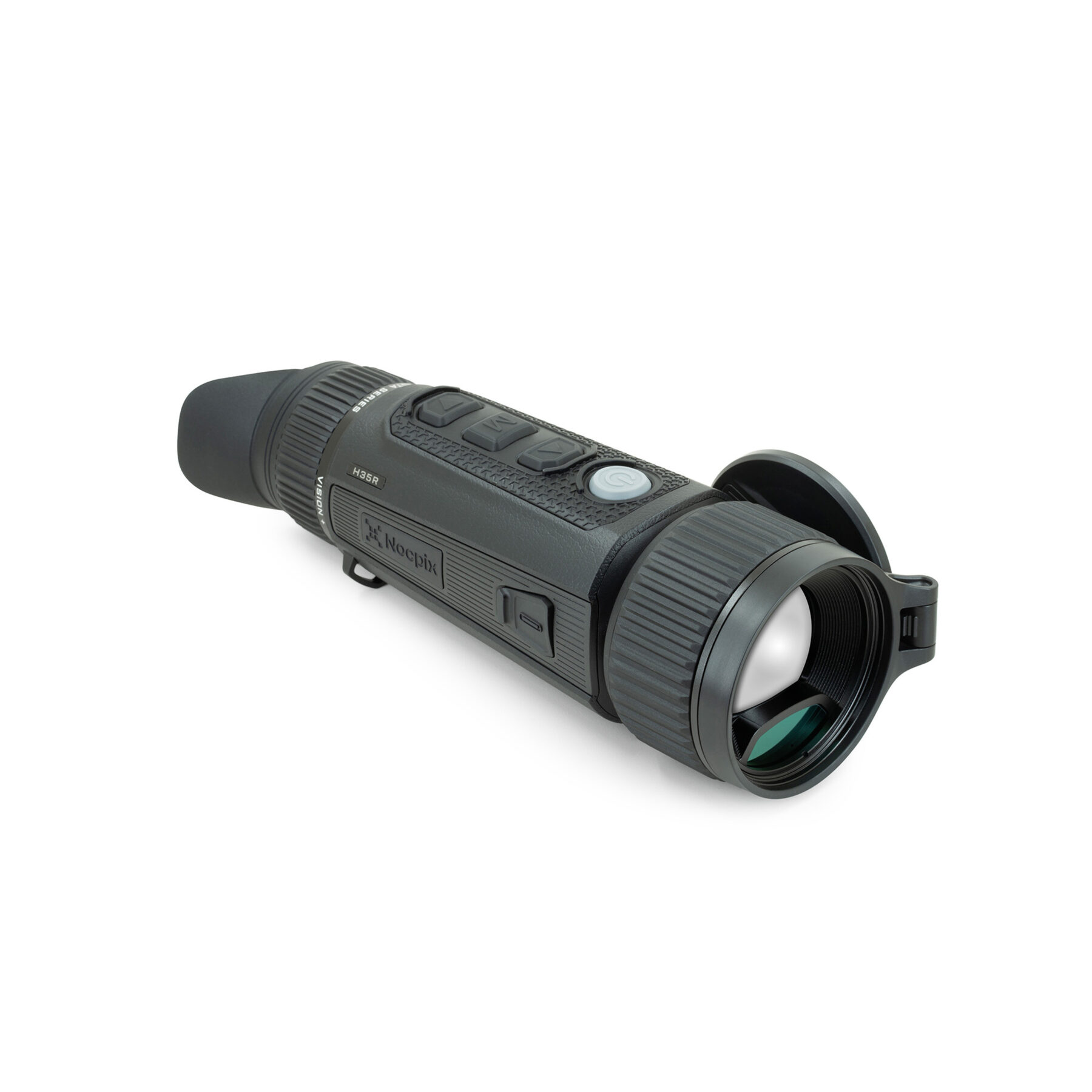

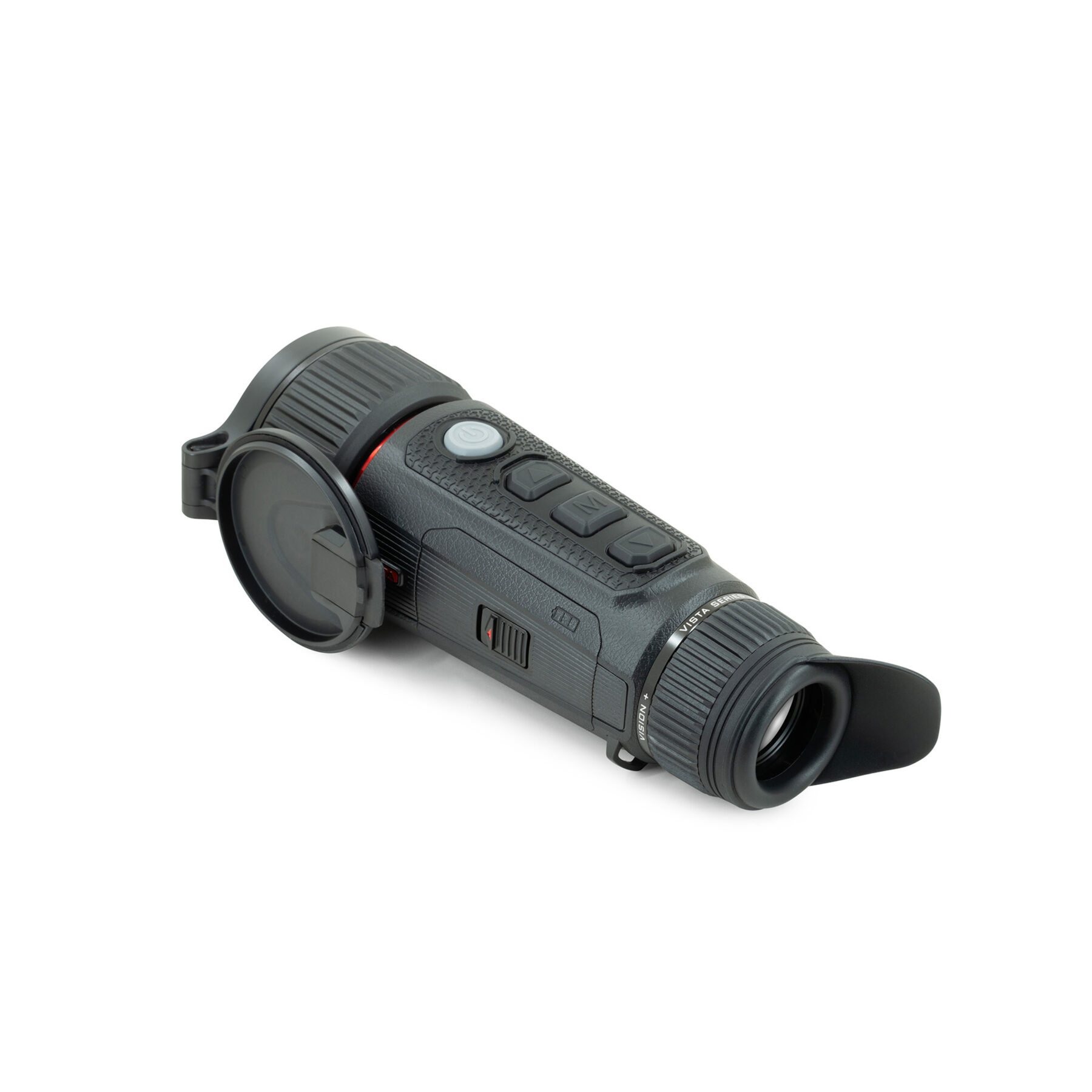

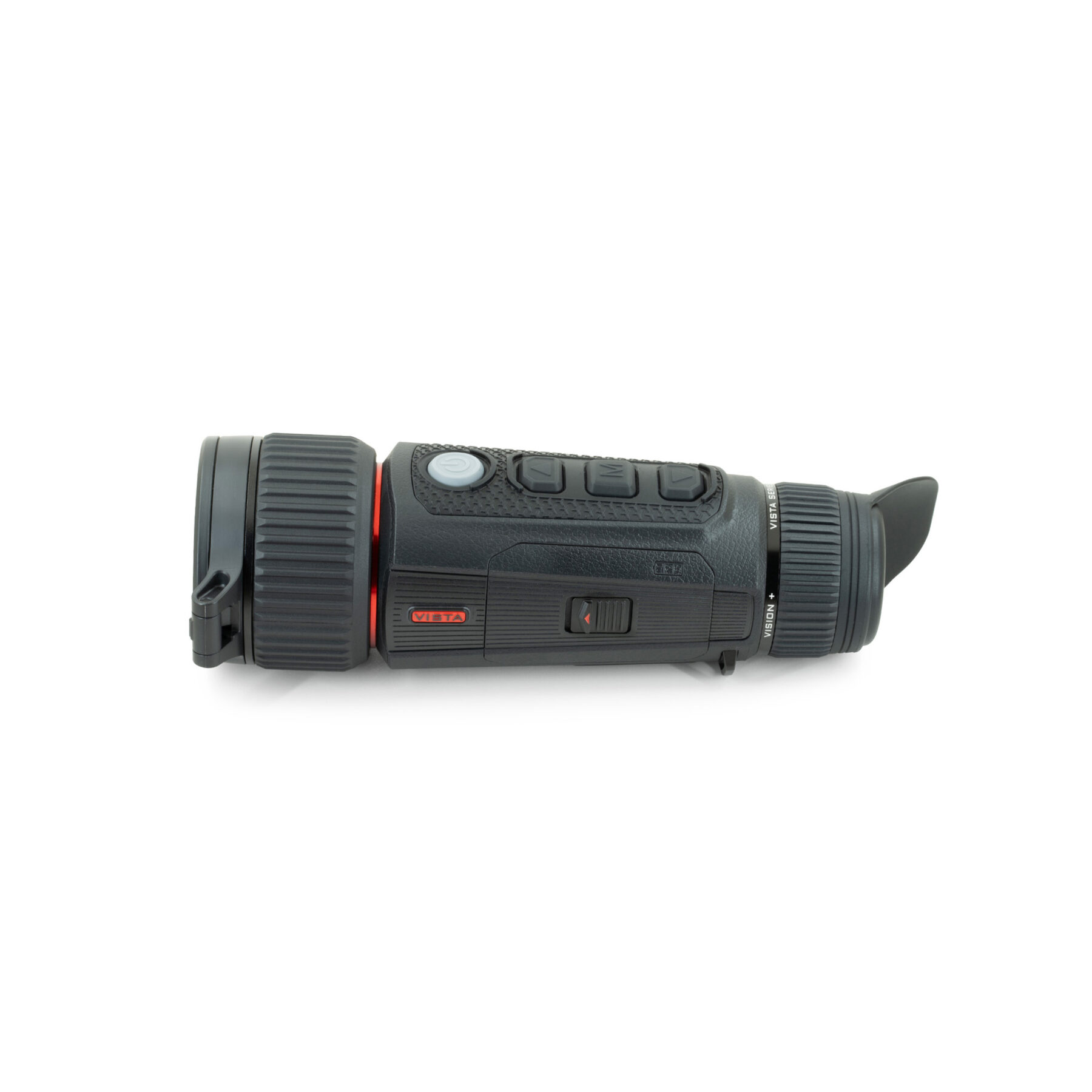

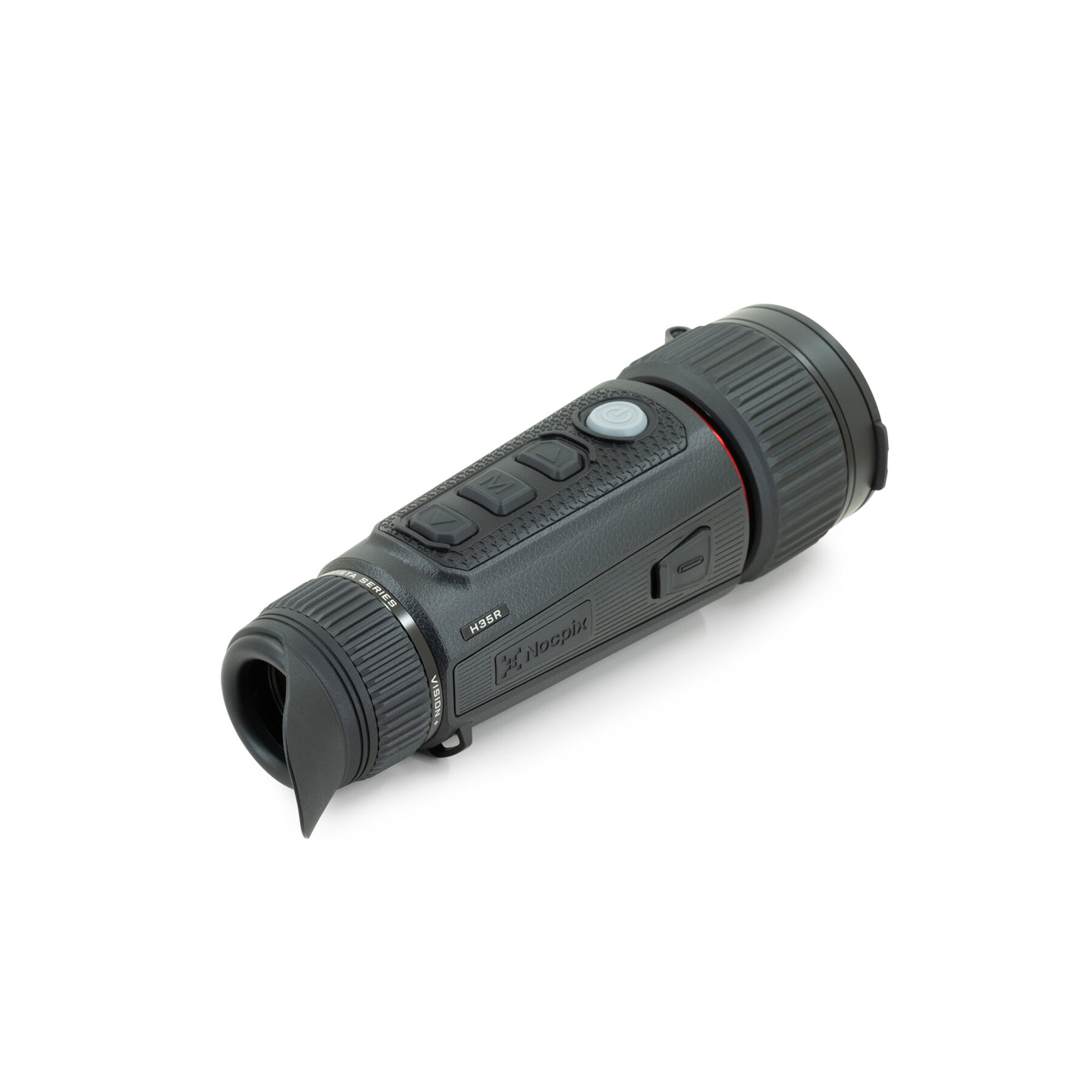

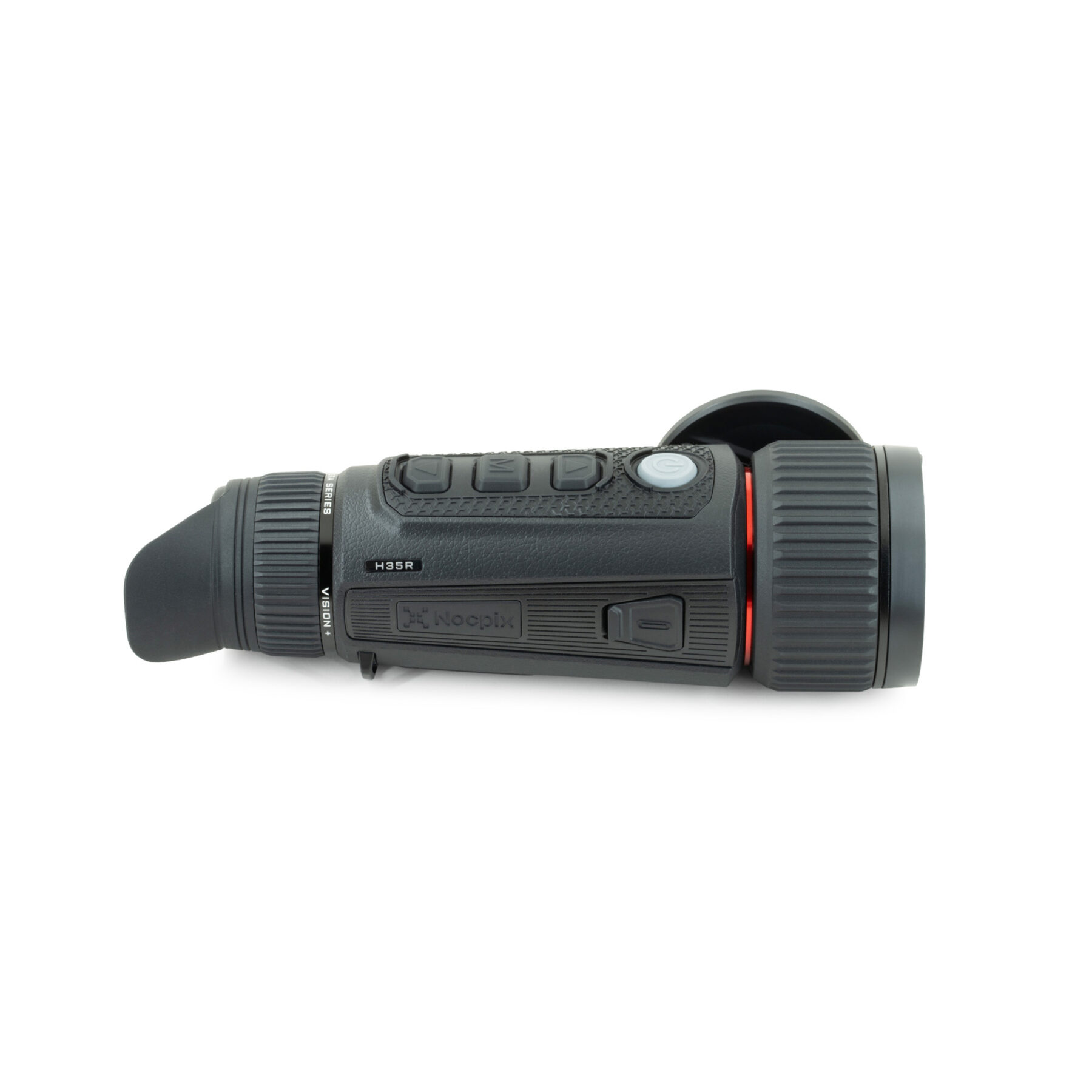

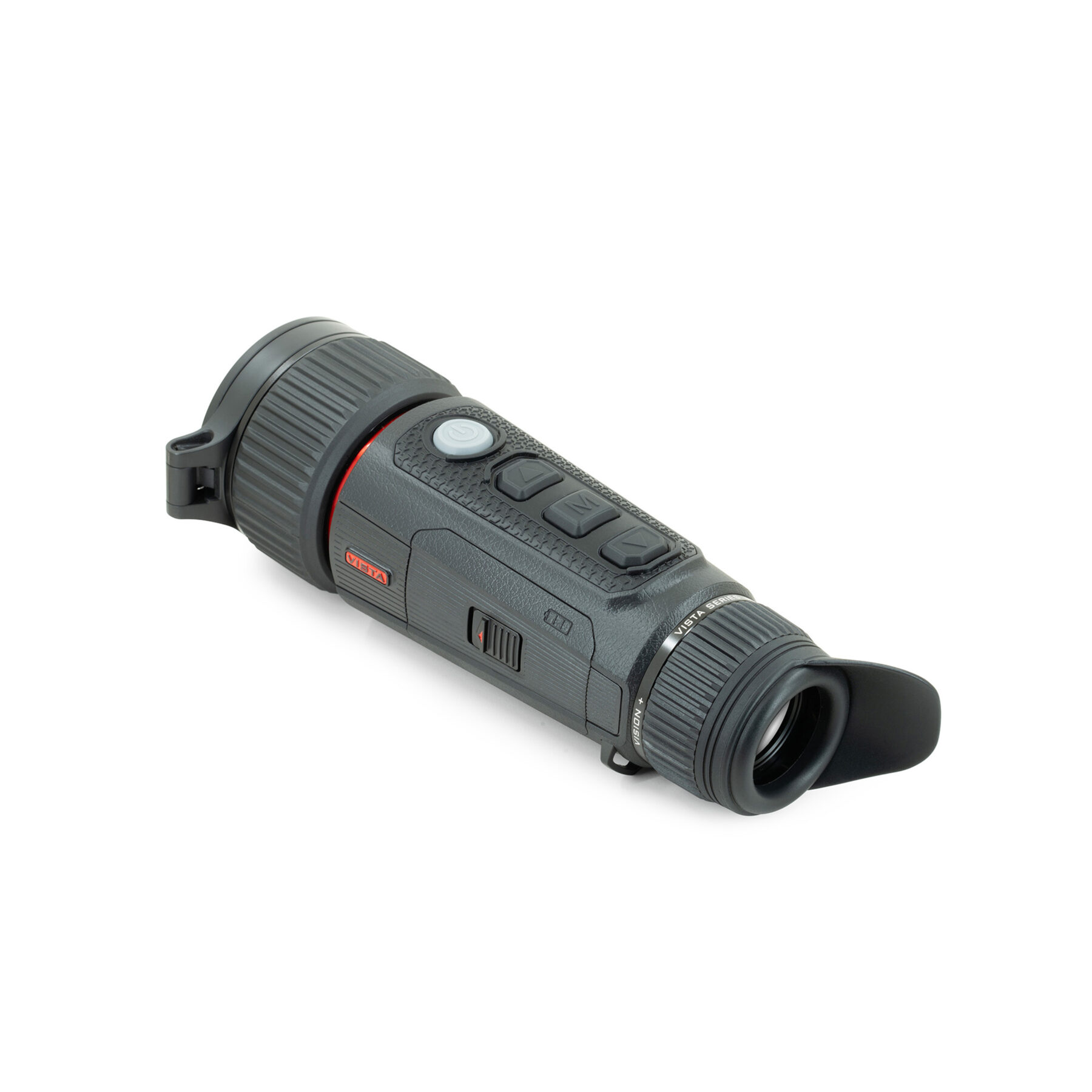

Nocpix VISTA H35R Rangefinding Thermal Monocular 640×512 35 mm

Product Description

The VISTA handheld thermal monocular features an advanced f/0.9 germanium objective lens, offering exceptional clarity and detail. The original 50 mm model (ideal for long-distance observation) is now joined by a new 35 mm variant with a 3× native magnification, ideal for close and medium range hunting distances.

Equipped with a high-resolution 640×512 thermal sensor and an impressive ≤15 mK NETD sensitivity rating, this ergonomic monocular delivers crystal-clear images with remarkable detail and contrast. The lens-integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation.

VISTA models include electronic image stabilization for a smooth, sharp picture on the 2560×2560 round AMOLED display. Whether you’re scanning for coyotes or conducting night-time surveillance, this is your go-to tool for unparalleled thermal imaging performance.

• Lens-integrated laser rangefinder can fire on command or continuously when scanning.
• One-of-a-kind circular ultra-high resolution
• 1.03-inch 2560×2560 AMOLED display.
• Onboard photo, video, and audio recording.
• Large, ergonomic objective focus dial for precise control.
• New Nocpix IBP-7 removable battery pack with direct USB-C charging.
• 1/4-20 thread socket for quick-plate or tripod mounting.
• Included soft case with cross-body strap for comfortable carry.

High-Level Product Specs

• Sensor Pixel Size: 12μm

• Objective Focal Length: 35mm

• Digital Magnification: 8X

• Objective F#: 0.9

• Objective Diameter: 35mm

• Sensor Frame Rate: 60hz

• Detection Range: 1750 Yards

• Optical Magnification: 3X

• Device Technology: Thermal Imaging

• Onboard Recording: Yes

• Sensor Resolution: 640×512

Detailed Product Specs

Optics

• Display Type: AMOLED

• Eye Relief: 25mm

• Objective Focal Length: 35mm

• Digital Magnification: 8X

• Diopter Range: -4 to +6

• Vertical Angular Field of View: 9.4°

• Horizontal Angular Field of View: 12.5°

• Focusing Mechanism: Manual Focus

• Objective F#: 0.9

• Objective Diameter: 35mm

• Objective Lens Material: Germanium

• Display Resolution: 2560×2560

• Detection Range: 1750 Yards

• Optical Magnification: 3X

Features & Performance

• Warranty: 5 Years

• Startup Time: <10 Seconds, Instant from Standby

• Rangefinder: Integrated 1200 yd LRF

• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

• Picture-in-Picture: Yes

• Storage Capacity: 64GB

• Connector Output: Power/Data

• User-Updatable Firmware: Yes

• Mobile App: Yes

• Run Time: 5+

• Power Source: USB-C External, IBP-7 Li-ion Battery Pack

• Stand-by Mode: Yes

• Connector Type: USB-C

• External Power Source: USB-C

• Country of Manufacture: China

• Wifi: Yes

• Onboard Recording: Yes

• Image Capture: Yes

• Video Output: Yes

Environmental Specs

• Operating Temperature Range: -4°F~122°F

• Ingress Protection: IP67

Physical Specs

• Housing Material: Polymer

• Weight: 22.58 oz.

• Height: 3.11

• Width: 2.64

• Length: 7.48

Sensor Specs

• Sensor Type: Nocpix 640

• Sensor Pixel Size: 12μm

• Thermal Sensitivity: <15mk

• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic

• Sensor Frame Rate: 60hz

• Device Technology: Thermal Imaging

• Sensor Resolution: 640×512

Product Documents

• Nocpix VISTA Series Manual PDF – opens in new browser tab
