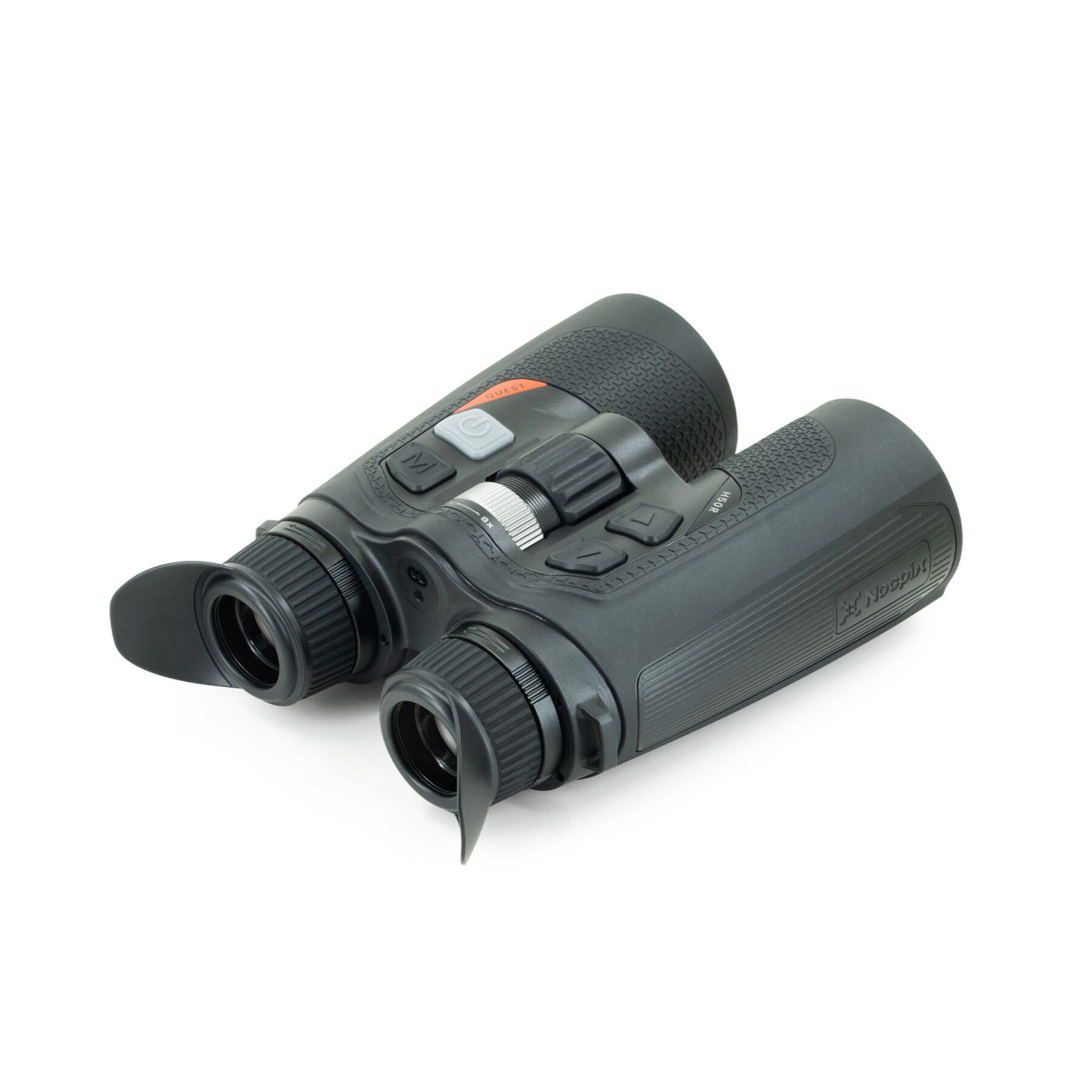

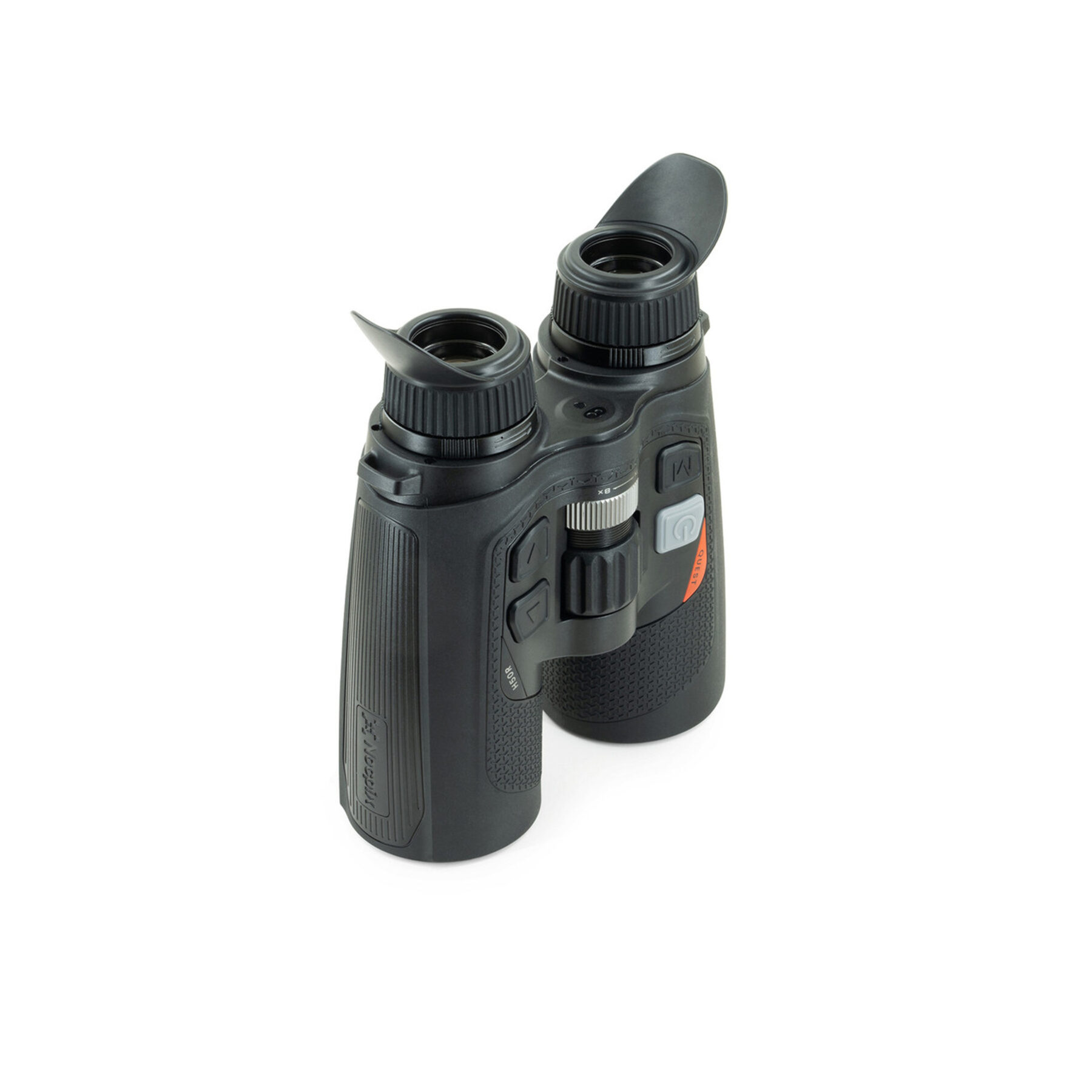

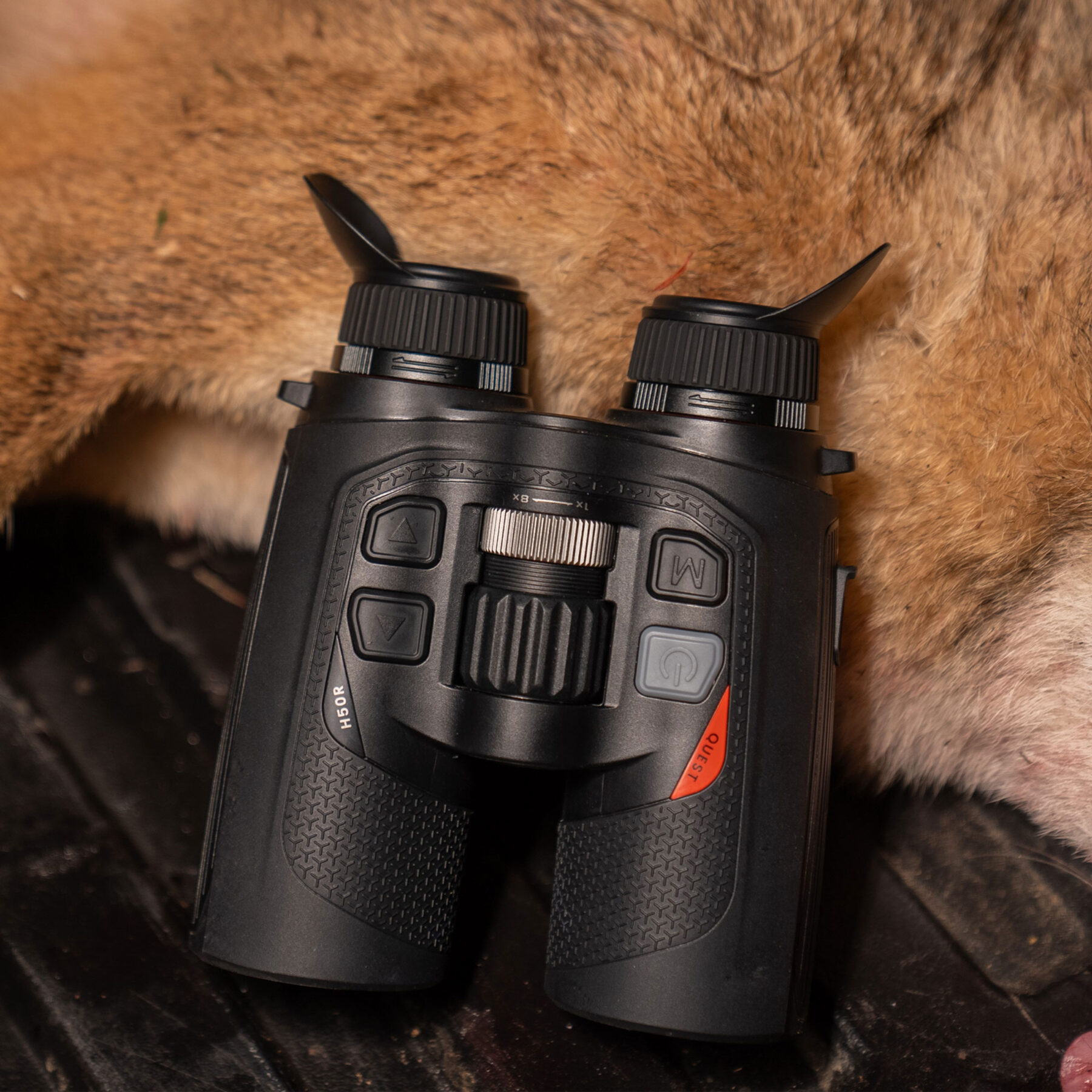

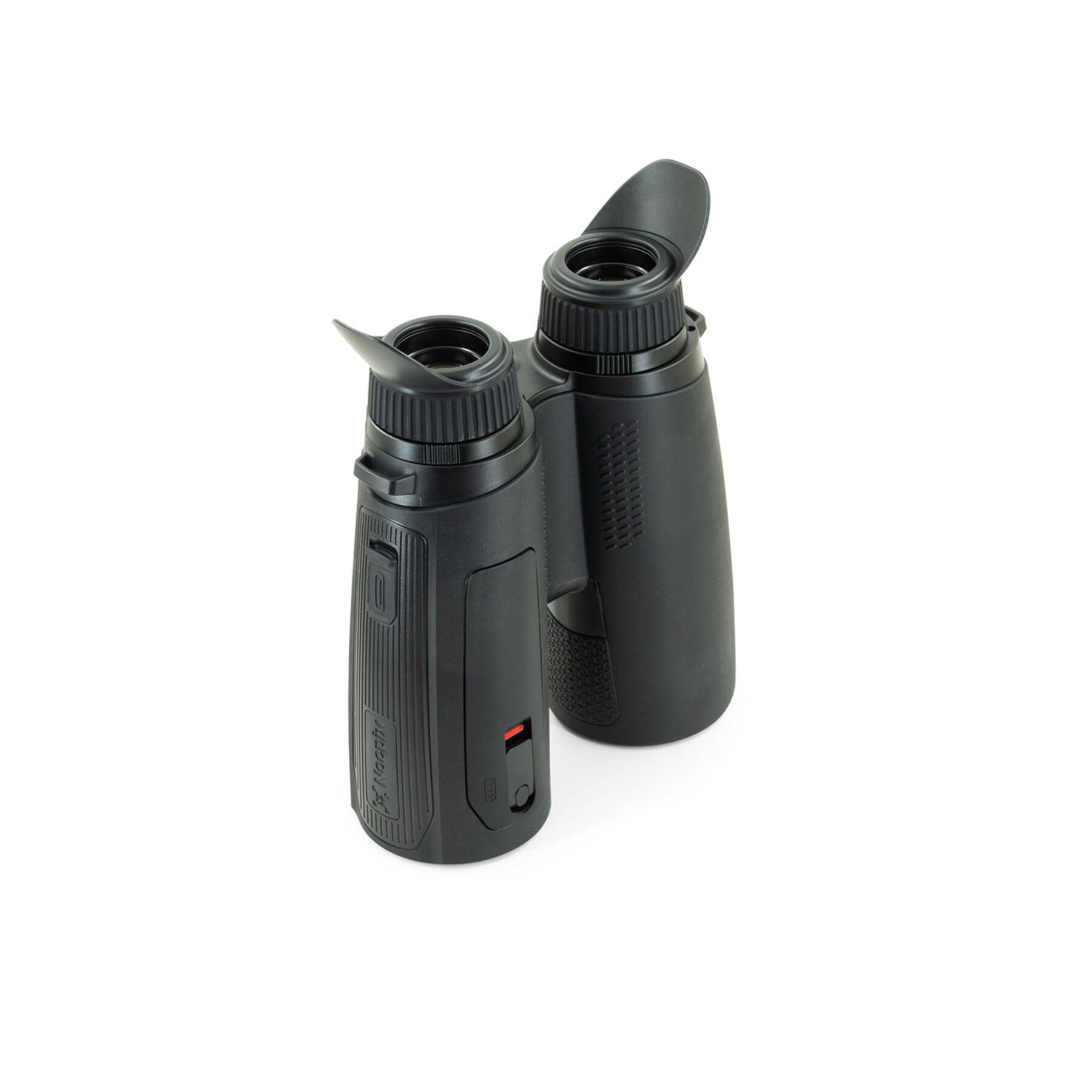

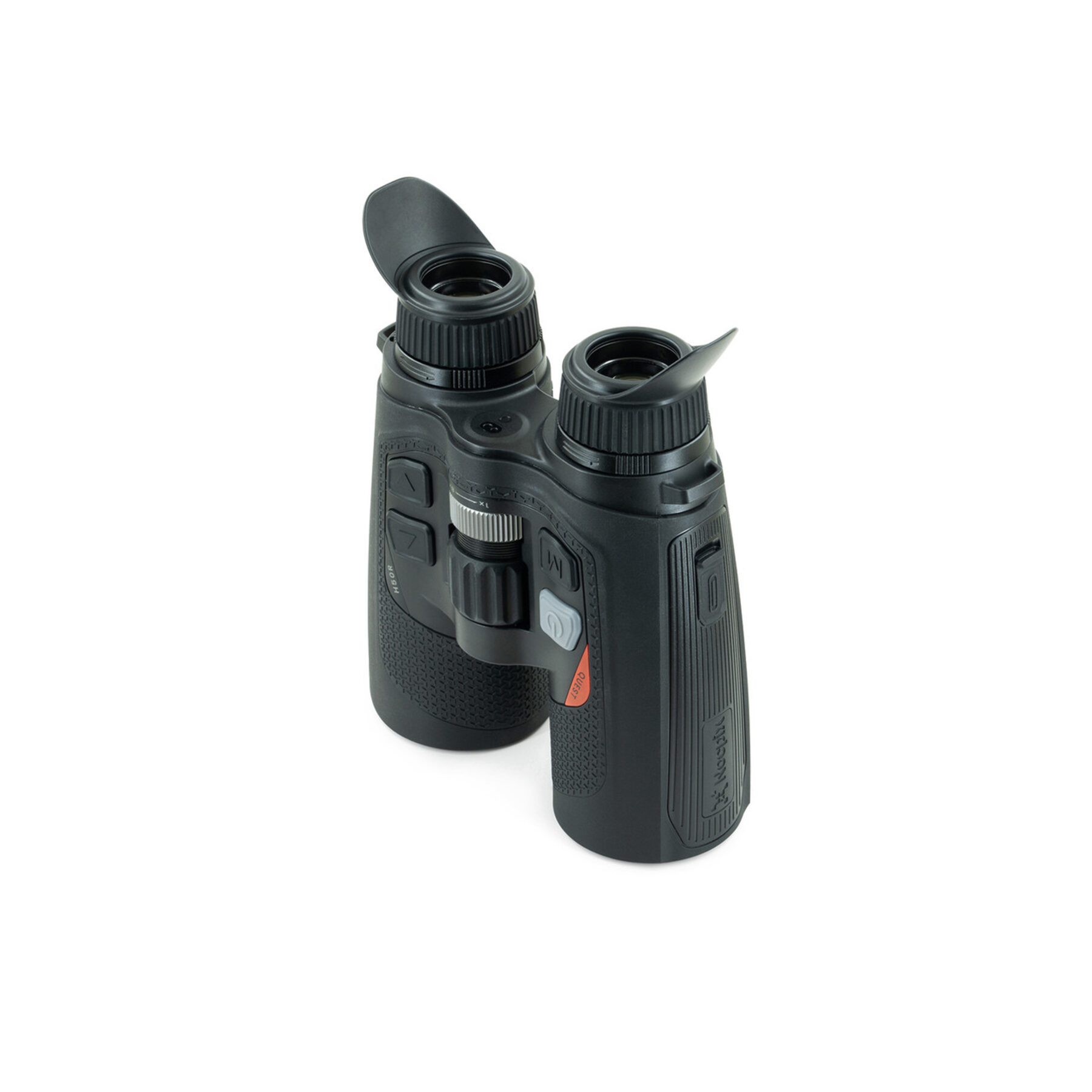

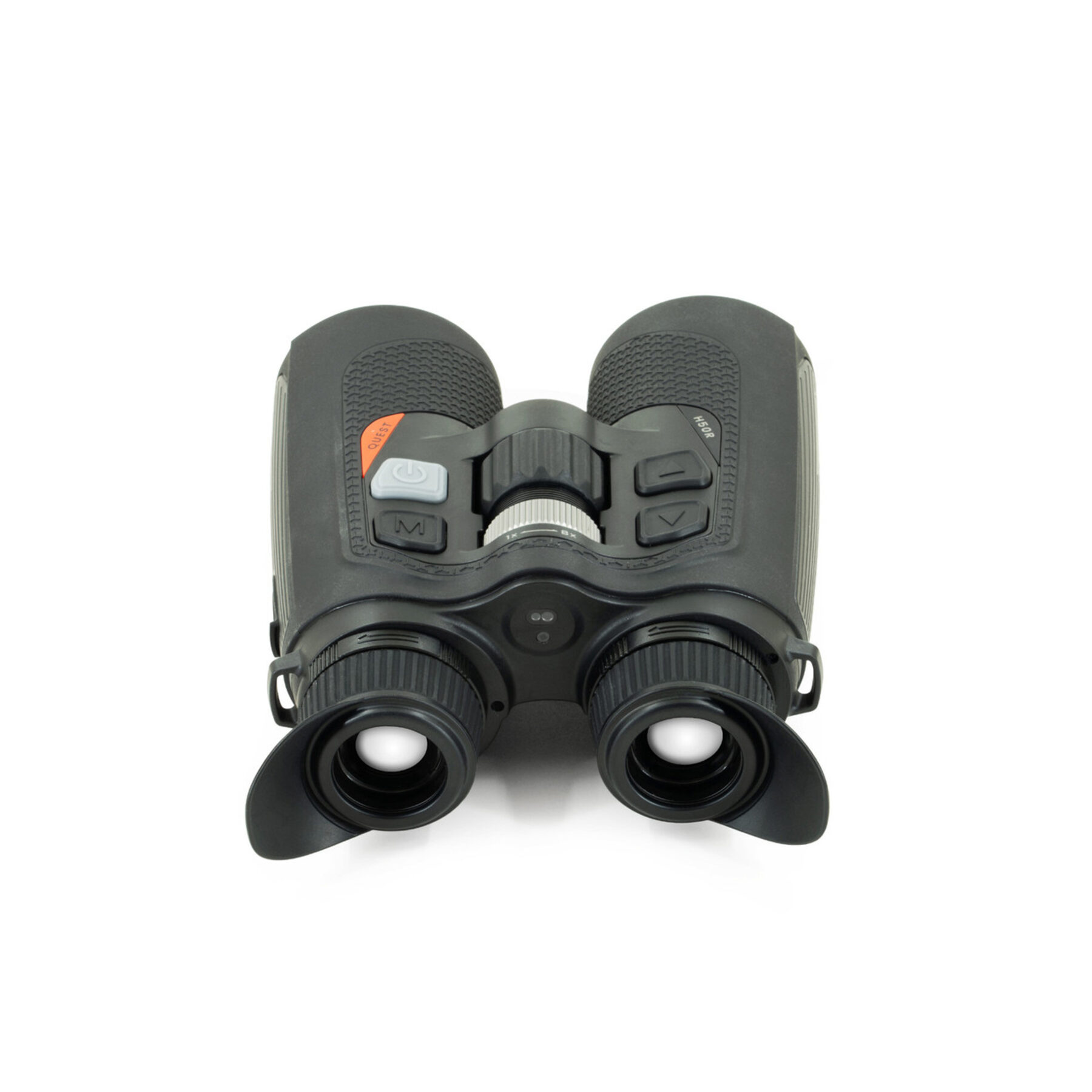

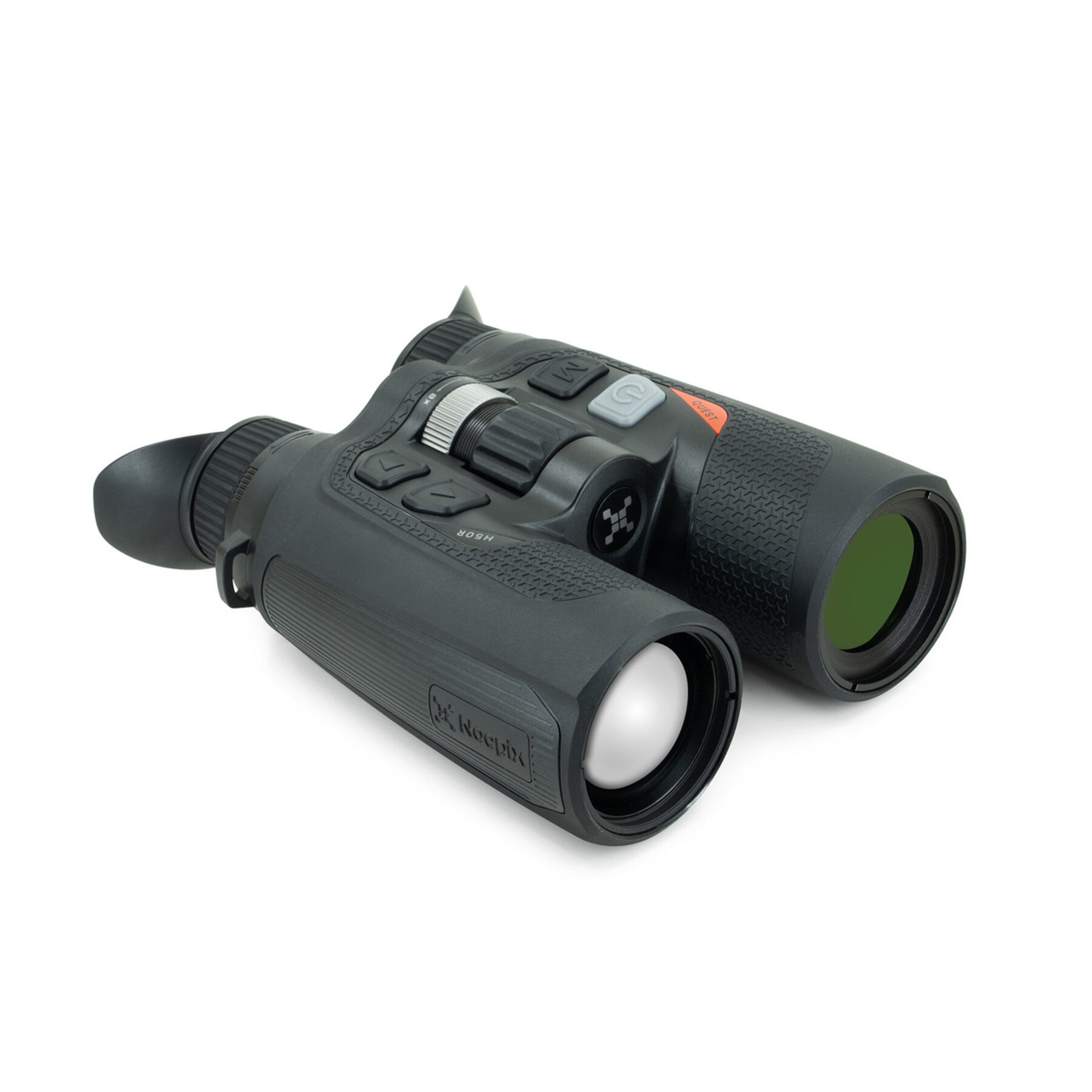

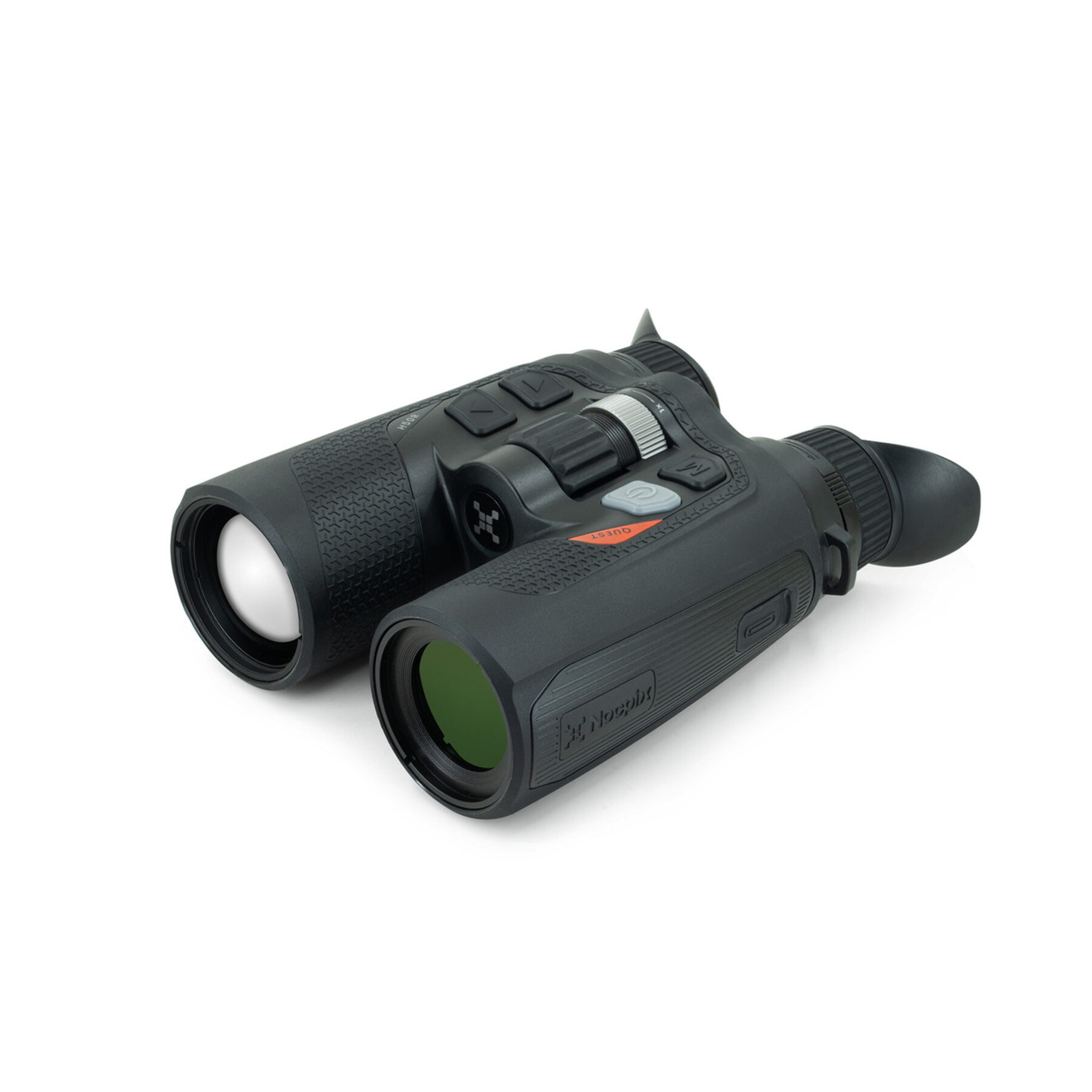

Nocpix QUEST H50R Rangefinding Thermal Binocular 640×512 50mm

Product Description

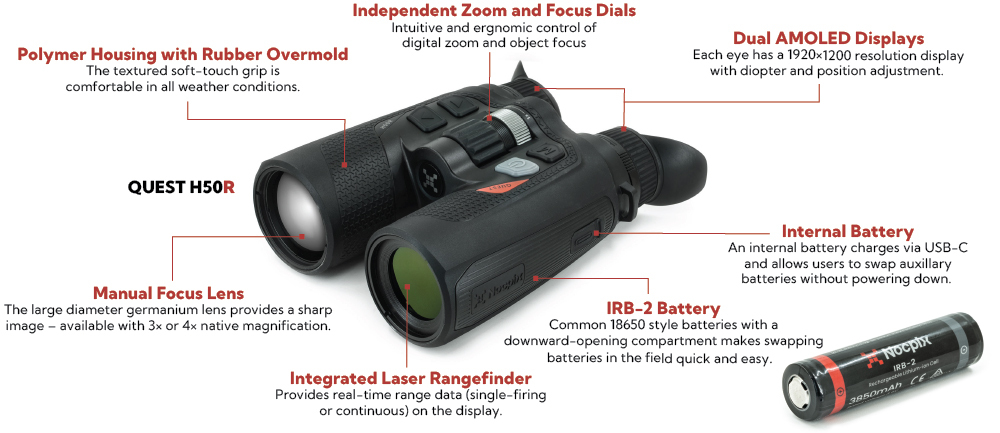

All new for 2025, QUEST binoculars deliver a comfortable and intuitive viewing experience. Unlike thermal monoculars, the QUEST binoculars allow users to use both hands and both eyes while scanning – providing a smooth and comfortable feel, just like traditional daylight binoculars. A 12 μm ≤15mK 640×512 thermal sensor captures every detail, while the Reality+ image processing algorithm delivers a vivid picture to the 1920×1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.

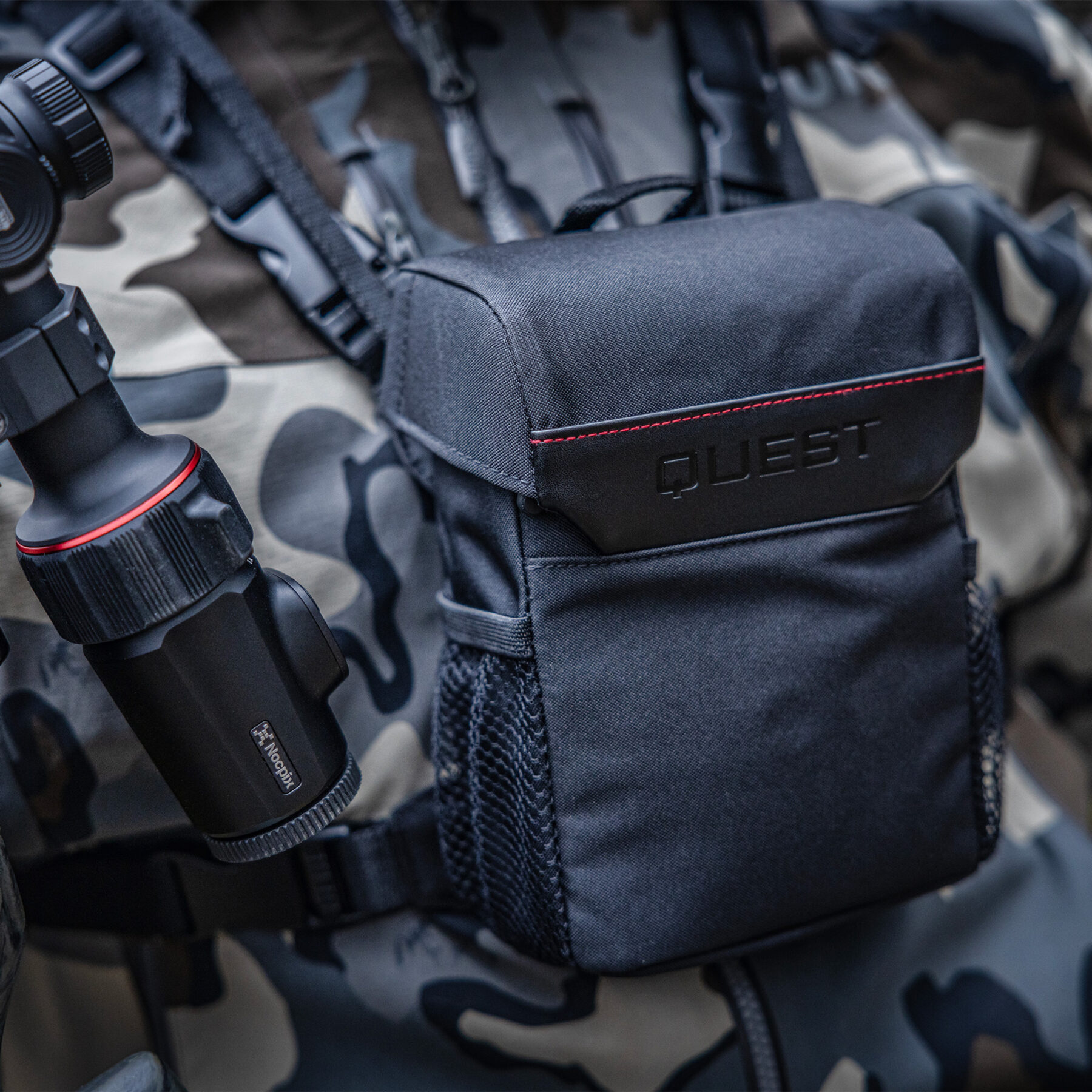

QUEST binoculars also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source and keep running all night long. The QUEST is available with a 50 mm objective lens (model H50R) or a 35 mm germanium objective lens (H35R). Each comes with everything you would expect from high-end binoculars, including a comfortable and fully adjustable binocular harness.

High-Level Product Specifications

• Device Technology: Thermal Imaging

• Objective Focal Length: 50mm

• Sensor Resolution: 640×512

• Detection Range: 2850 Yards

• Sensor Pixel Size: 12μm

• Sensor Frame Rate: 60hz

• Optical Magnification: 4X

• Digital Magnification: 8X

• Objective Diameter: 50mm

• Objective F#: 1.1

• Onboard Recording: Yes

Detailed Product Specs

Optics

• Objective Focal Length: 50mm

• Detection Range: 2850 Yards

• Optical Magnification: 4X

• Digital Magnification: 8X

• Objective Lens Material: Germanium

• Horizontal Angular Field of View: 8.8°

• Vertical Angular Field of View: 7°

• Objective Diameter: 50mm

• Objective F#: 1.1

• Focusing Mechanism: Manual Focus

• Eye Relief: 25mm

• Diopter Range: -5 to +5

• Display Type: AMOLED

• Display Resolution: 1920×1200

Features & Performance

• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

• Rangefinder: Integrated 1000 yd LRF

• Stand-by Mode: Yes

• Picture-in-Picture: Yes

• Storage Capacity: 64GB

• Connector Output: Power/Data

• User-Updatable Firmware: Yes

• Mobile App: Yes

• Power Source: USB-C External, 18650 Battery, Built-In Battery Pack

• Connector Type: USB-C

• Wifi: Yes

• Onboard Recording: Yes

• Image Capture: Yes

• Video Output: Yes

• Run Time: 5+

• Warranty: 5 Years

• Startup Time: <10 Seconds, Instant from Standby

• External Power Source: USB-C

• Country of Manufacture: China

Environmental Specifications
