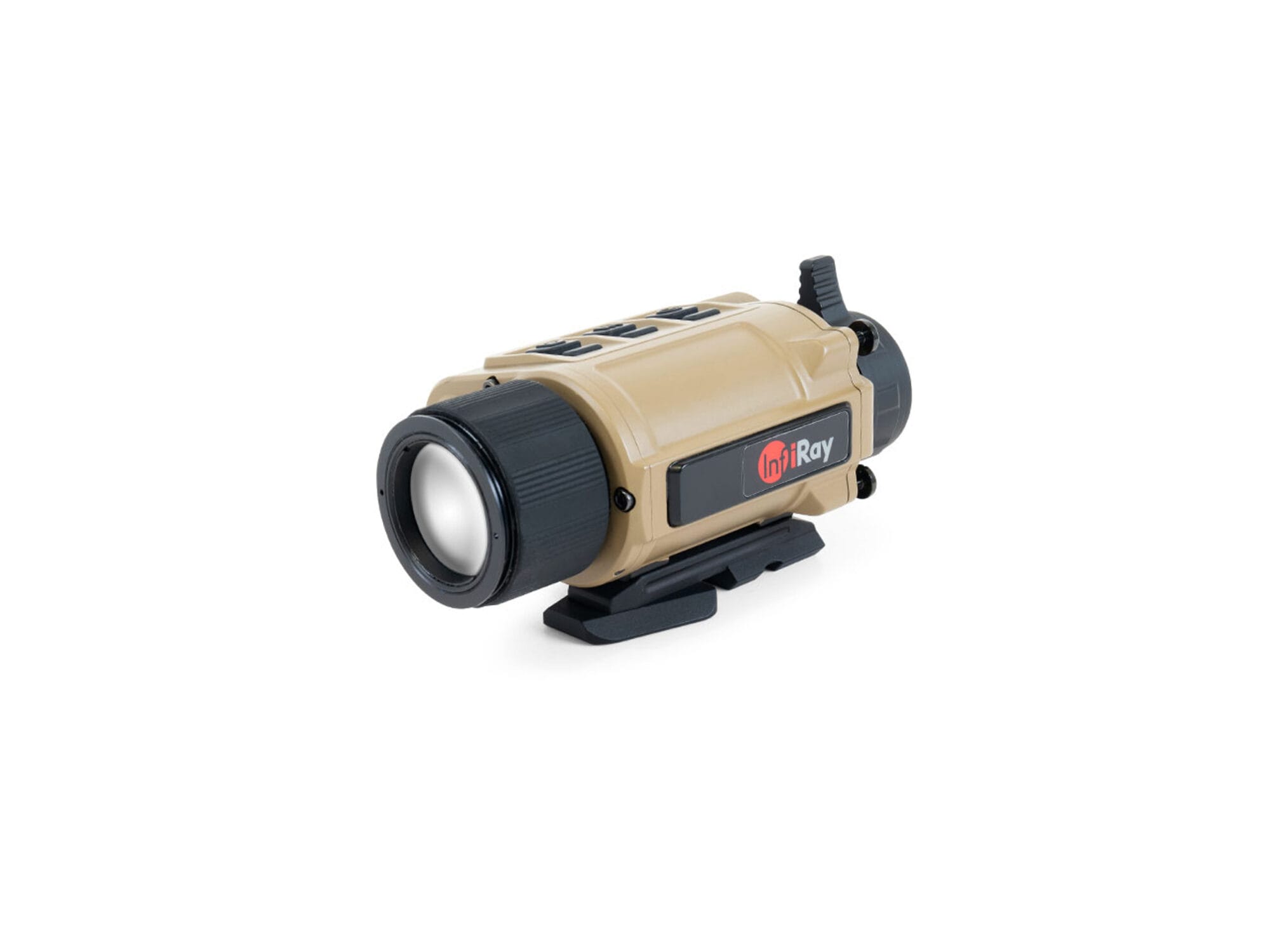

InfiRay RICO MICRO (RH25) V2 640 1X, 25mm Multifunction Thermal Weapon Sight

Product Video

Product Description

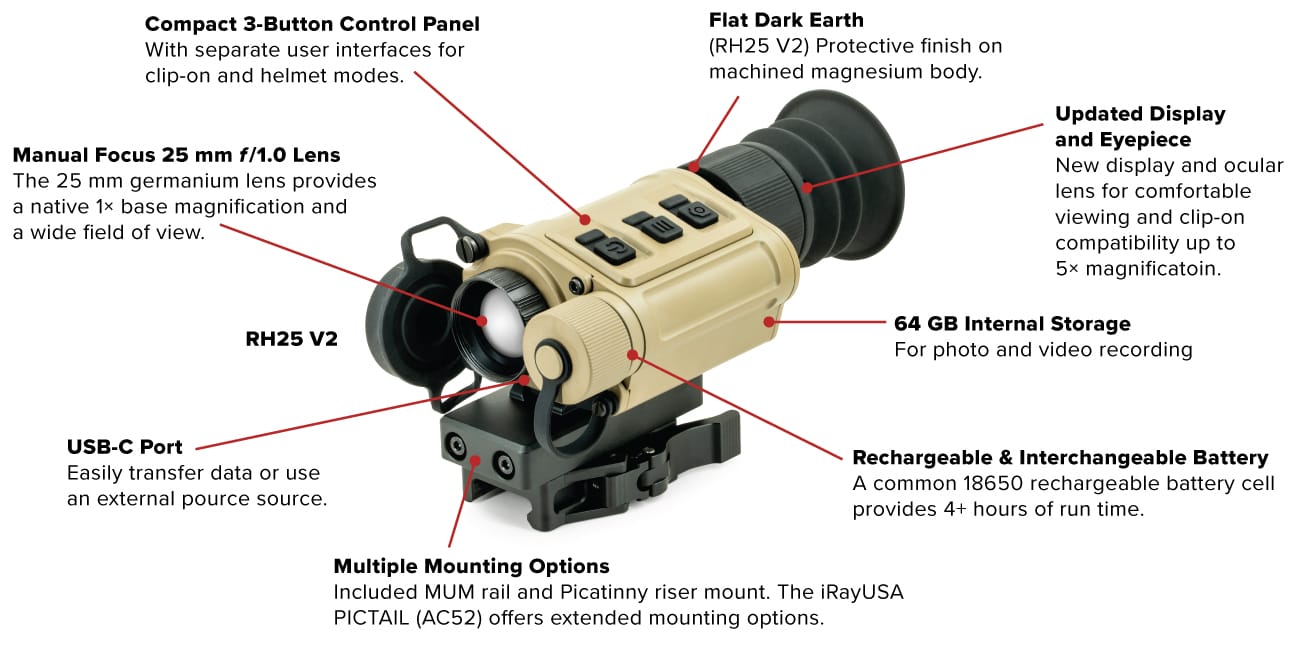

The RICO MICRO has been regarded as one of the most powerful and versatile thermal optics on the market. The new RH25 V2 is an evolution that keeps the well-known compact form factor and advanced feature set, while adding user-requested features and system enhancements focused on improving image quality and ease-of-use.

In its newest variation, the RH25 V2 has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight, or thermal clip-on. New models feature a machined magnesium alloy housing to reduce weight.

An added USB-C port now allows for simplified file transfer and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440×1080 AMOLED display and is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification.

The new display provides a physical viewing area that is 80% larger than the previous generation, with 97% more total pixels. The MICRO V2 also uses InfiRay’s latest 12 µm sensor, an improved NETD rating of ≤18mK, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.

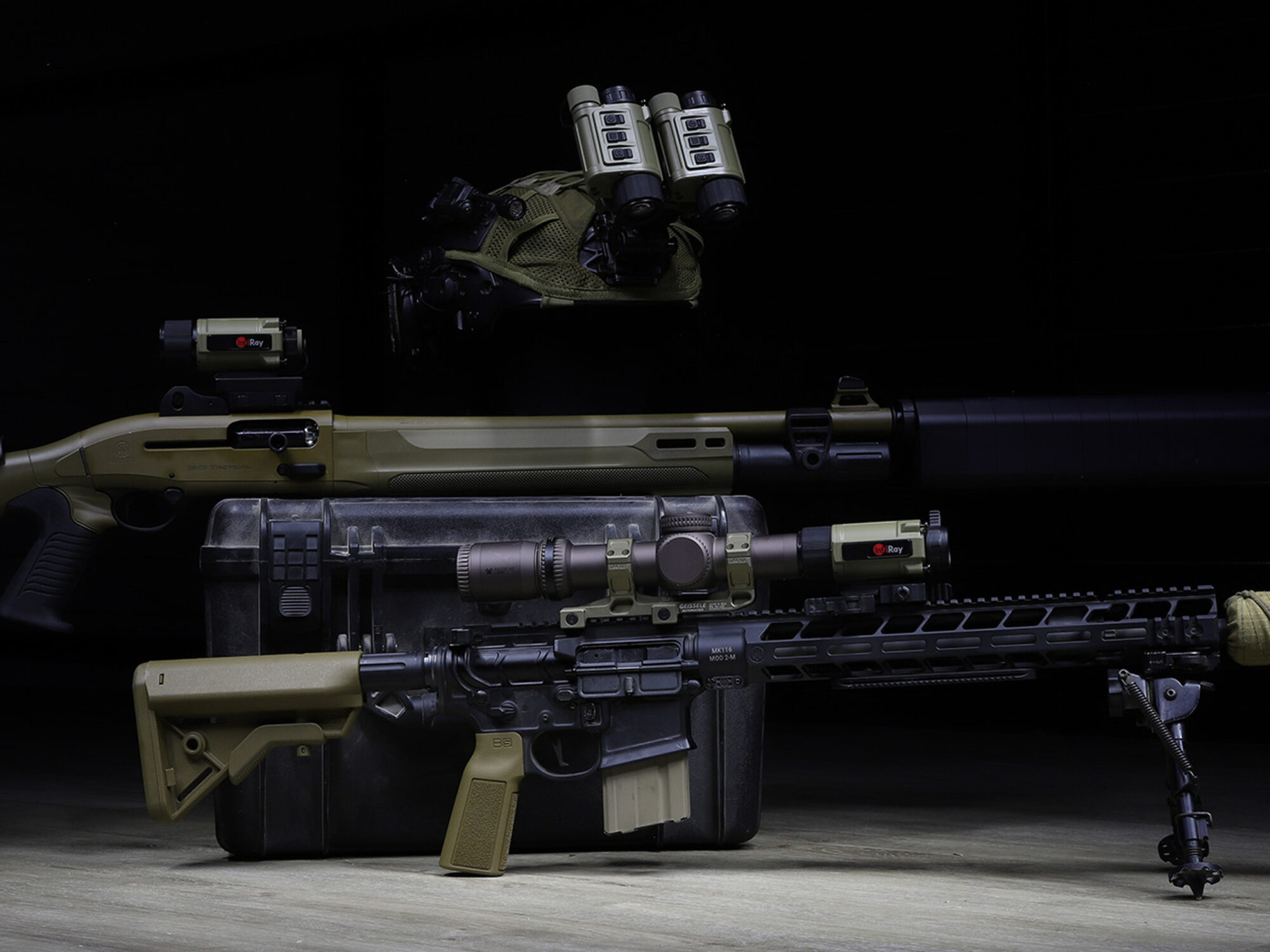

The RH25v2 is the most versatile thermal optic available, serving many different roles.

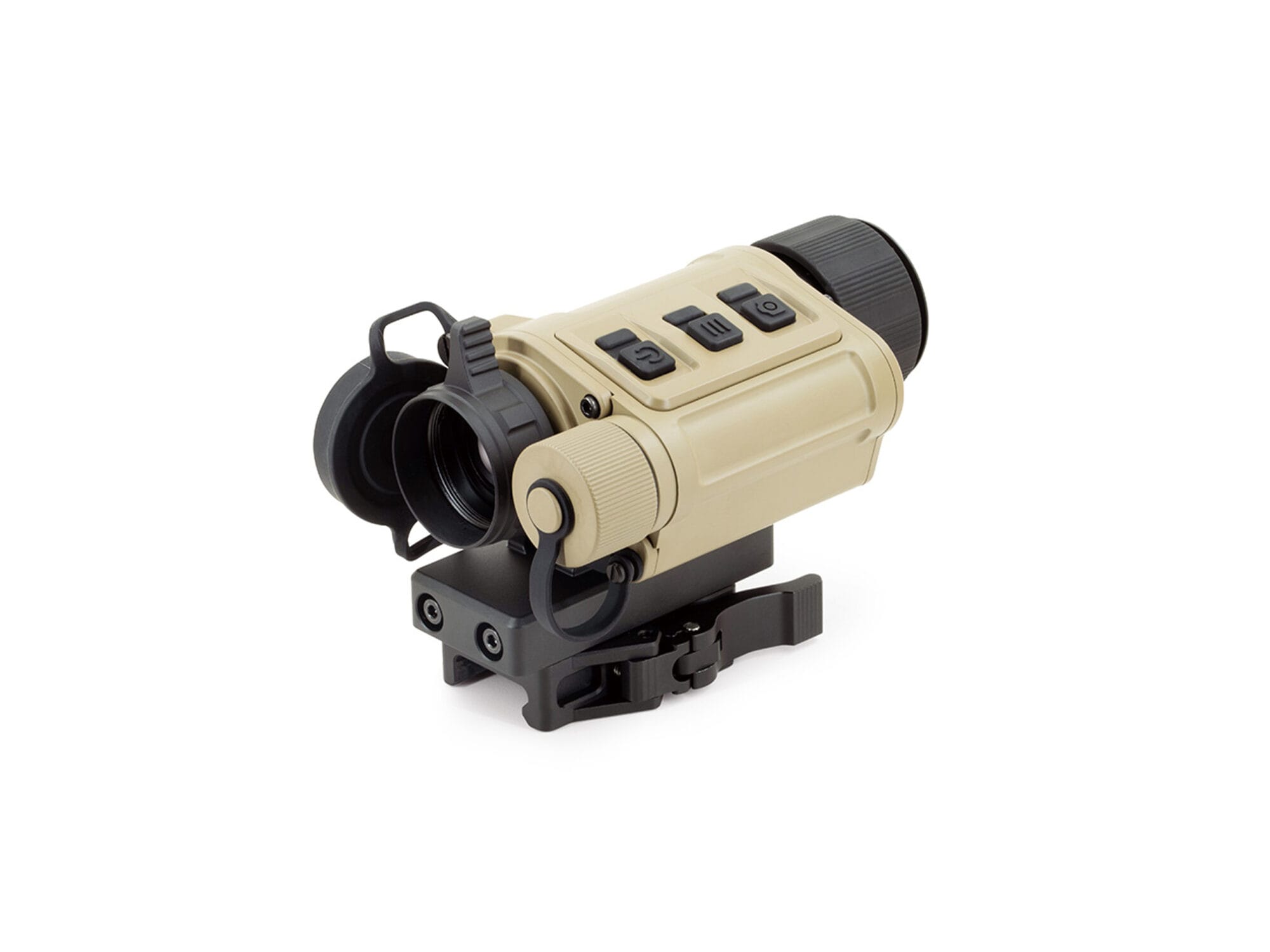

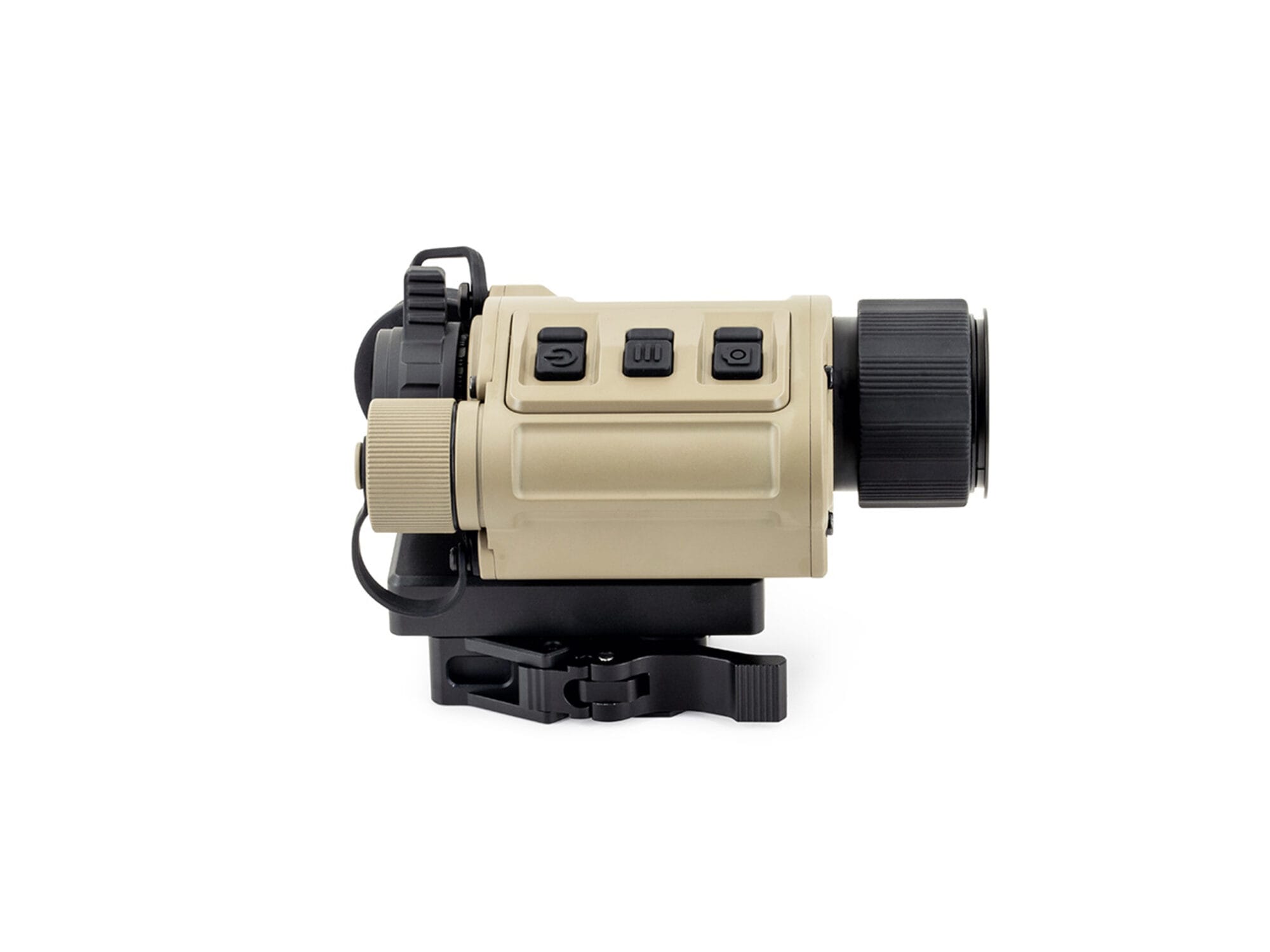

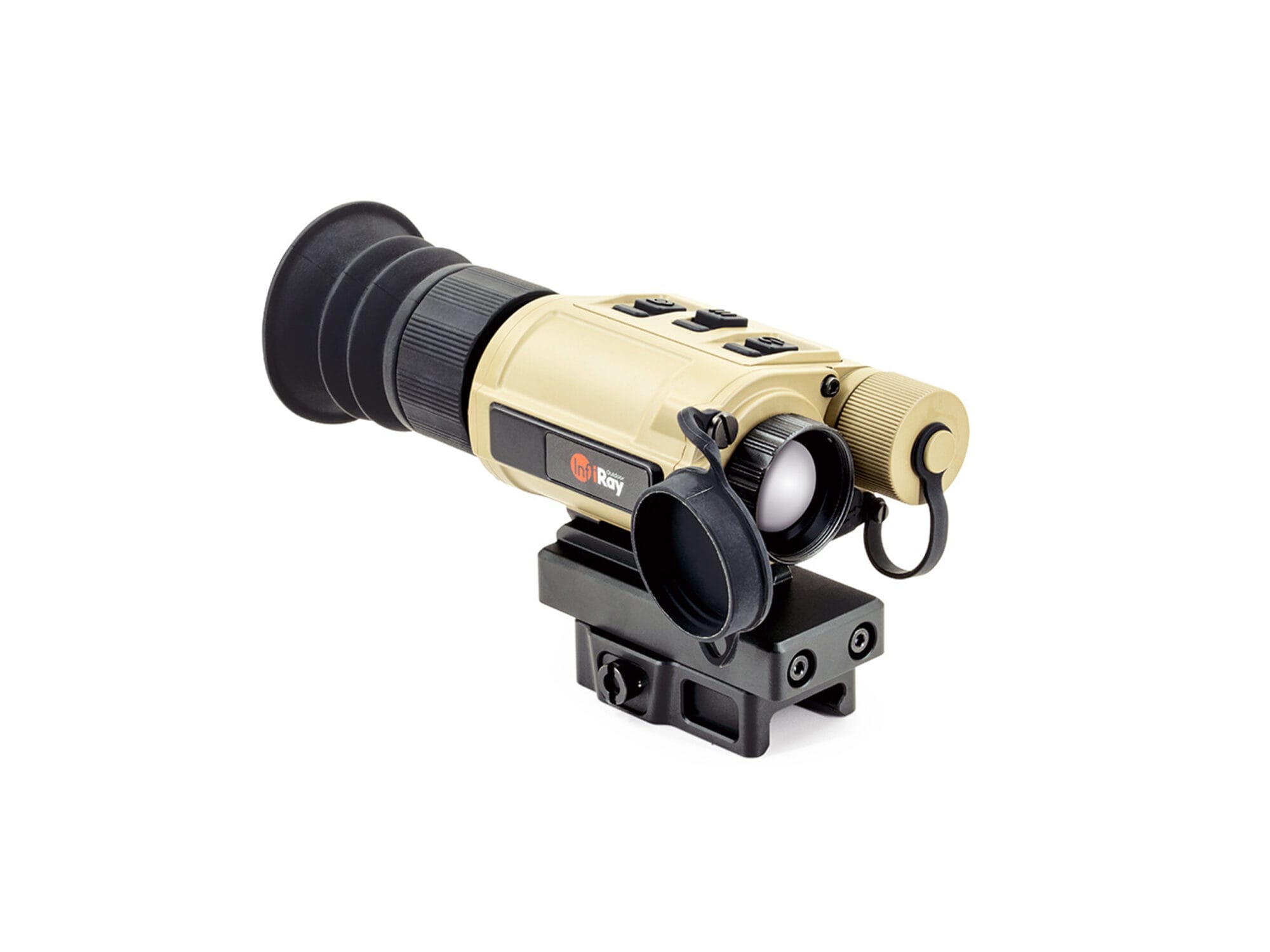

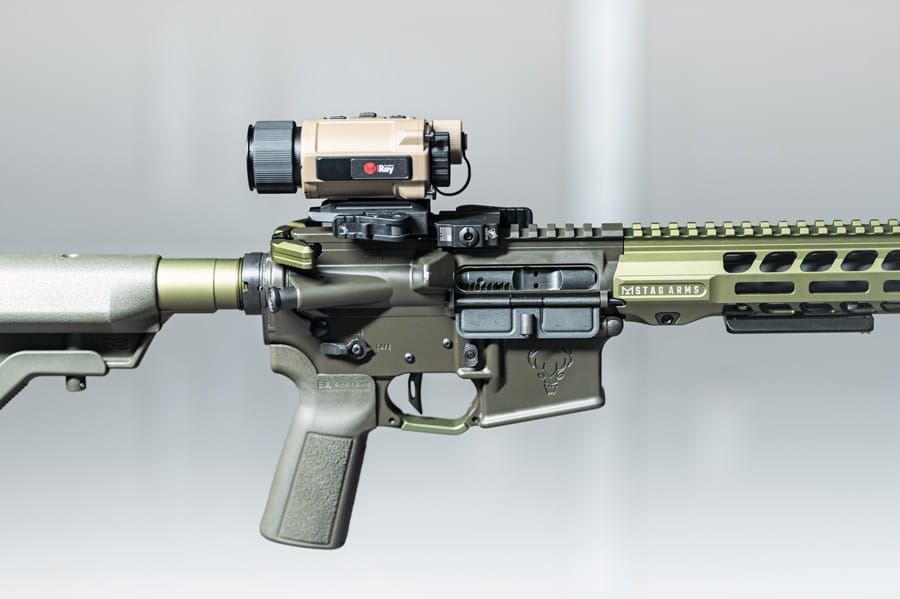

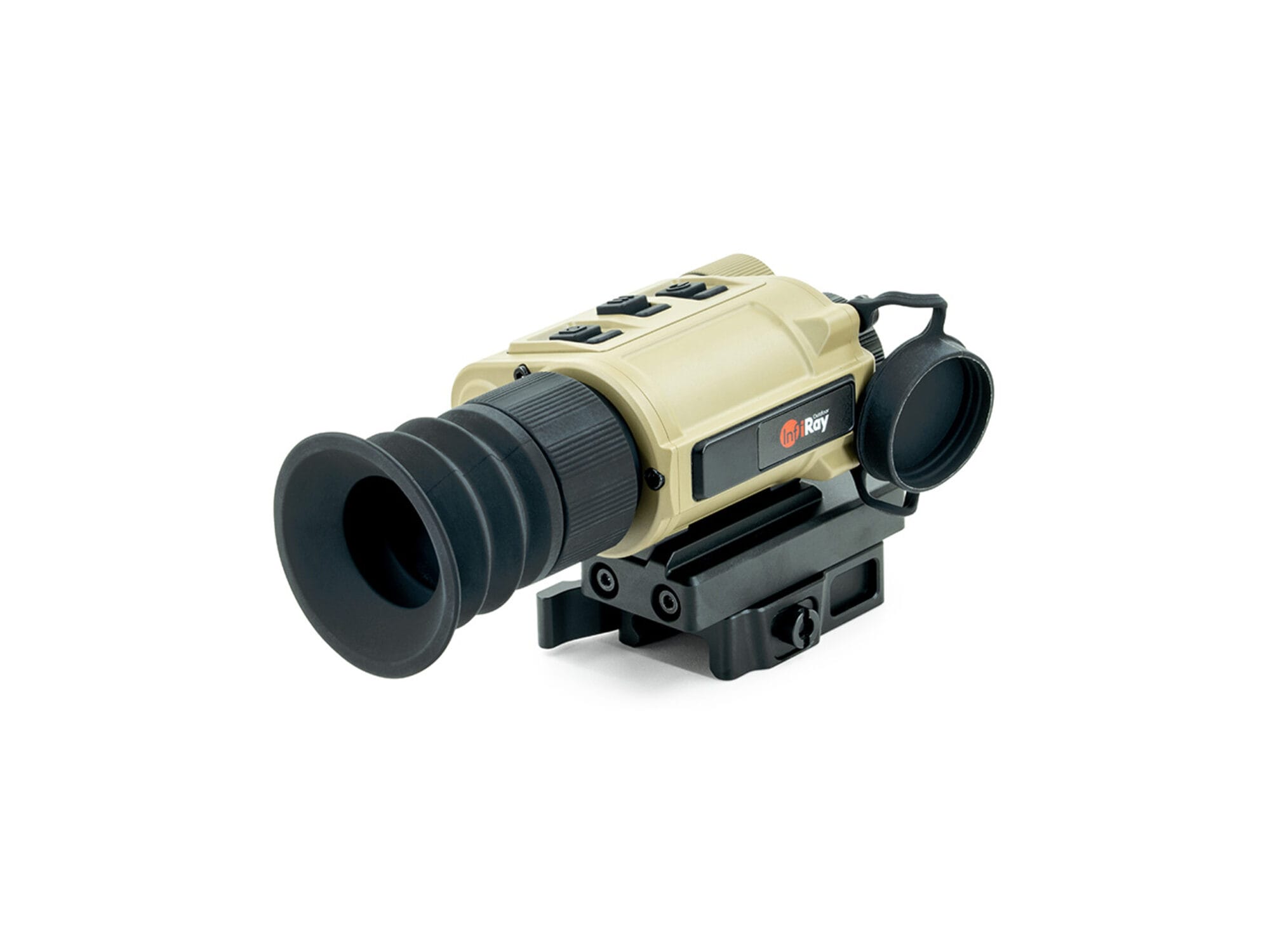

• The RH25v2 has multiple reticles and can be used as a dedicated thermal weapon sight. This can be done using the factory mount (1.93 in. centerline height) or the AC52/AC36 mount combination

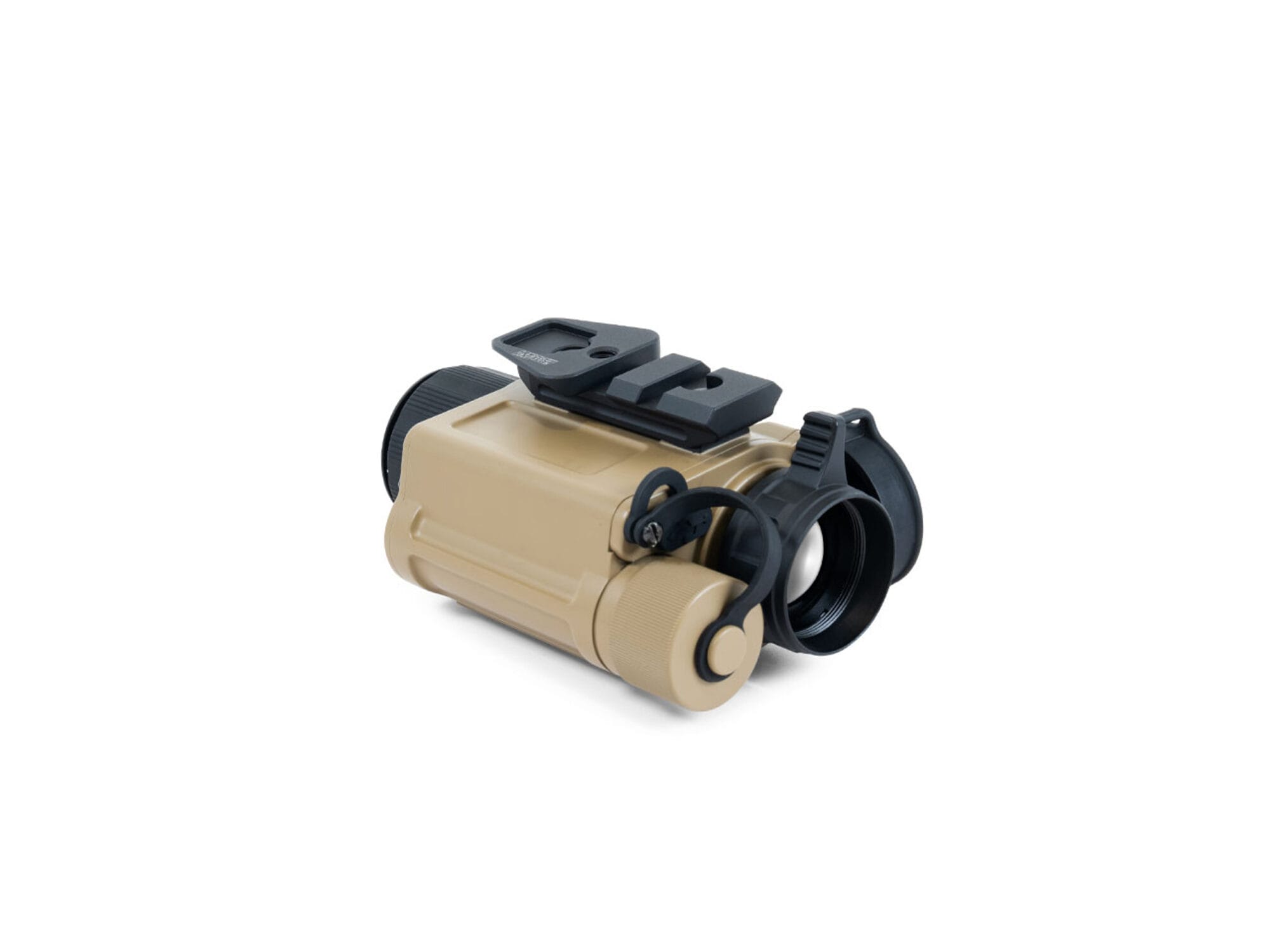

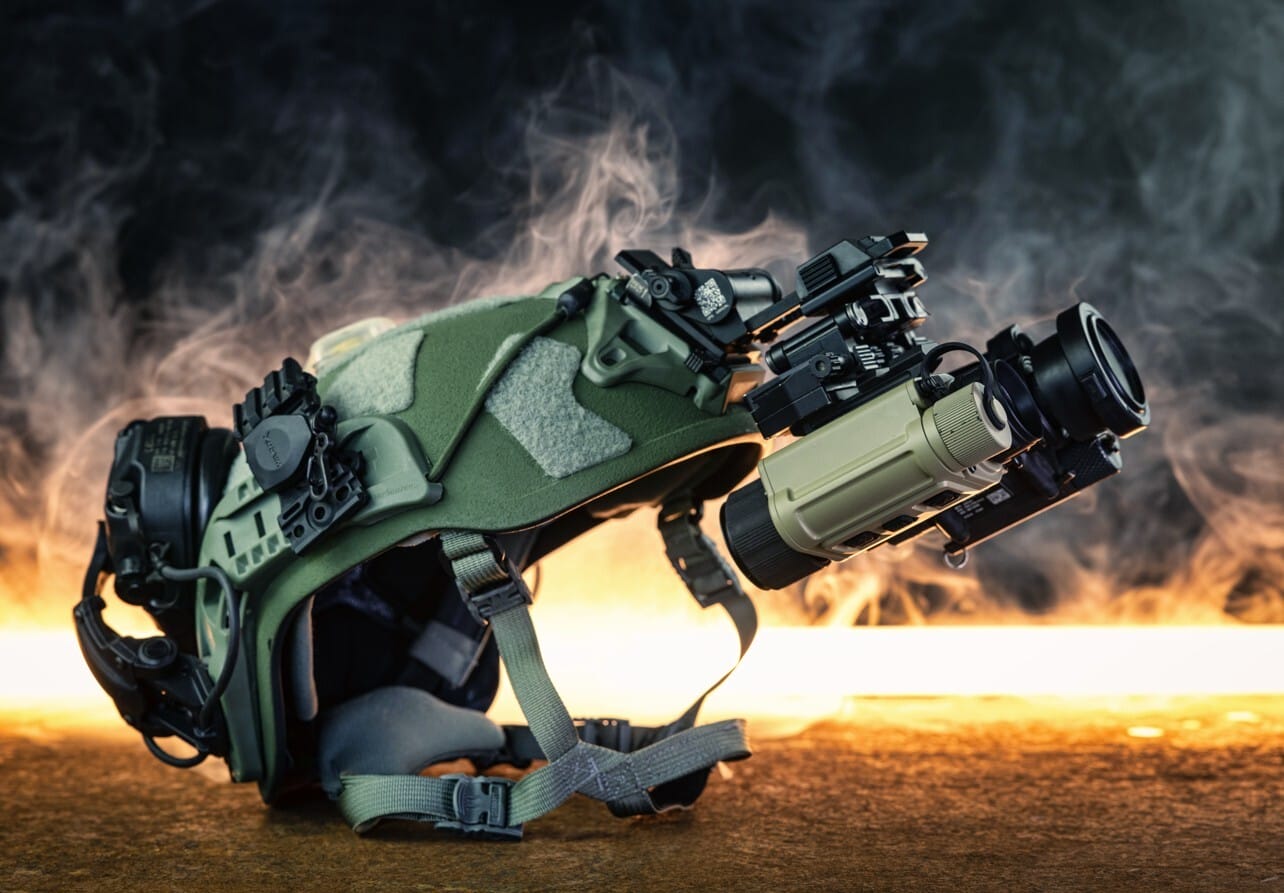

• With the AC52 Pictail Mount, the RH25V2 can operate as a Helmet-mounted Thermal Monocular. When inverted the device knows it is in helmet mode and optimizes the HUD for this use case.

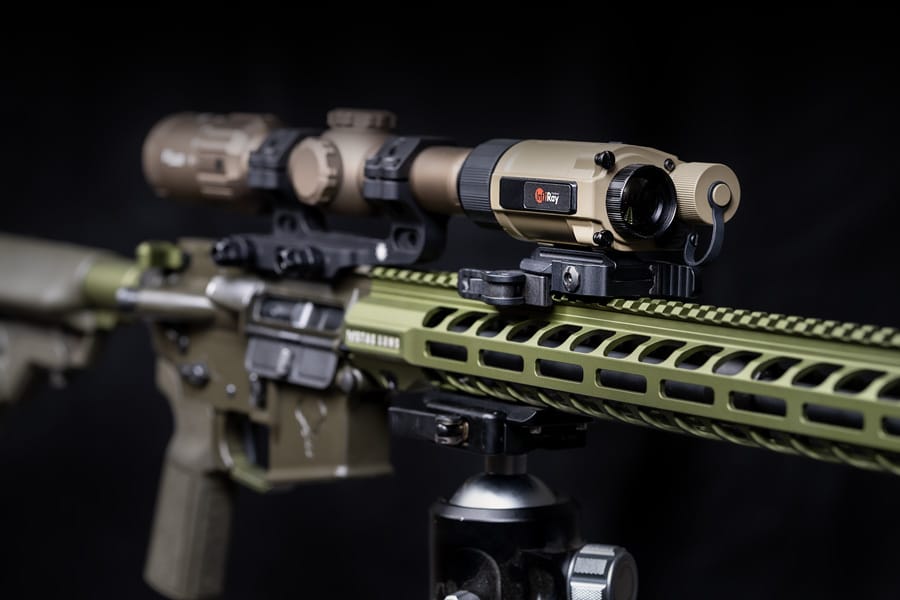

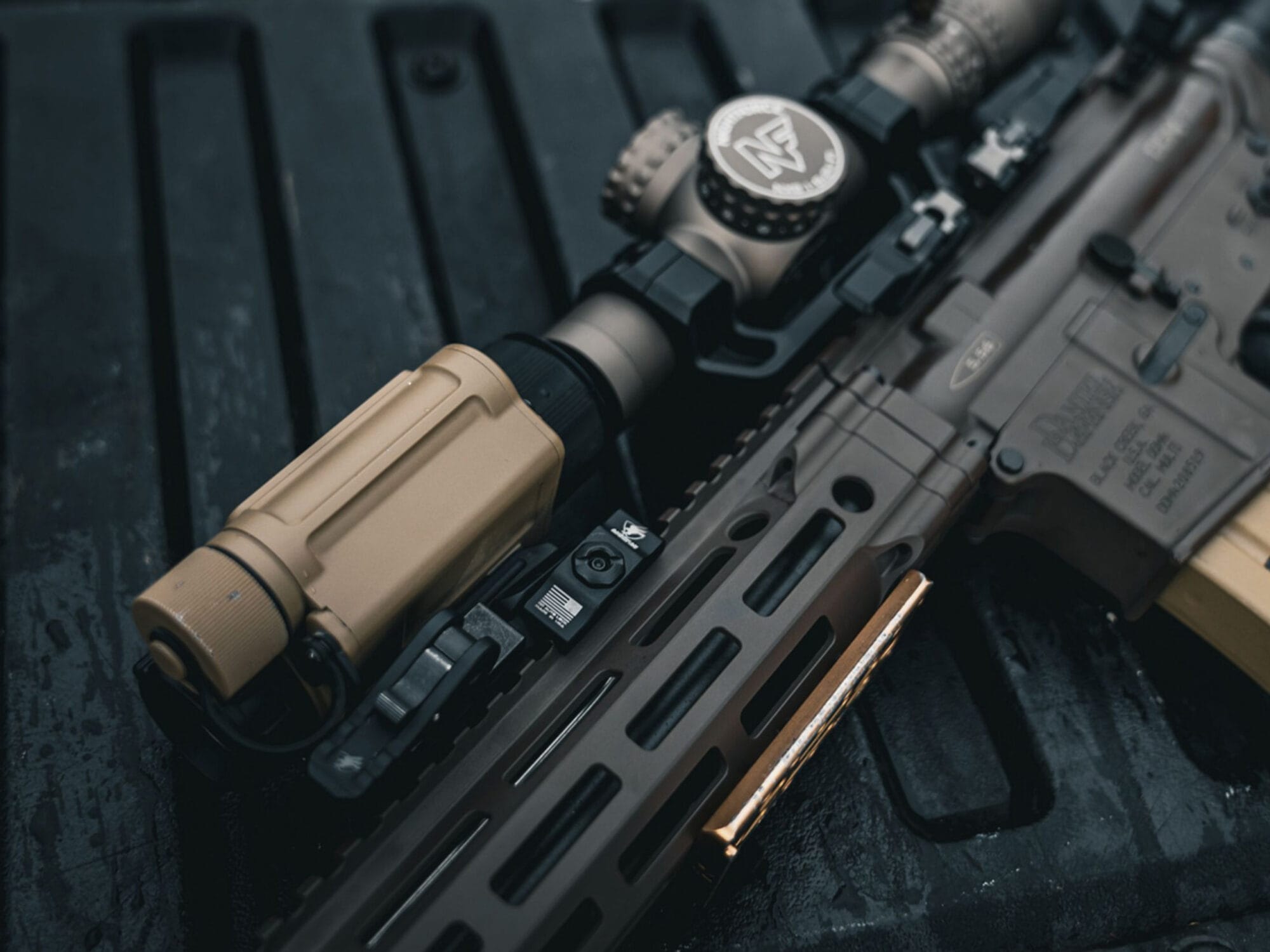

• One of the most popular uses of the RH25v2 is as a clip-on thermal in front of a day optic. The MICRO works best in front of LPVOs, Prism sights and dot or holographic sights with a magnifier.

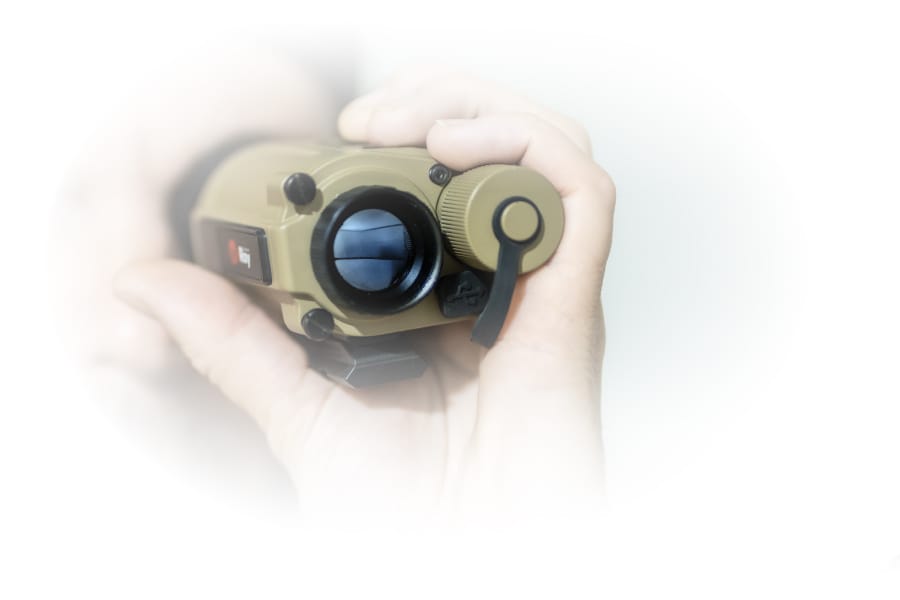

• For scouting and observation, the RH25v2 can quickly be detached for use as a handheld thermal scanner.



High-Level Product Specs

• Objective Focal Length: 25mm

• Device Technology: Thermal Imaging

• Sensor Resolution: 640×480

• Detection Range: 1375 Yards

• Sensor Pixel Size: 12μm

• Sensor Frame Rate: 60hz

• Optical Magnification: 1X

• Digital Magnification: 4X

• Objective Diameter: 25mm

• Objective F#: 1.0

• Onboard Recording: Yes

Detailed Product Specs

Optics

• Objective Focal Length: 25mm

• Detection Range: 1375 Yards

• Optical Magnification: 1X

• Digital Magnification: 4X

• Objective Lens Material: Germanium

• Horizontal Angular Field of View: 17.5

• Vertical Angular Field of View: 13.1

• Objective Diameter: 25mm

• Objective F#: 1.0

• Focusing Mechanism: Manual Focus

• Eye Relief: 45mm

• Diopter Range: -5 to +2

• Display Type: AMOLED

• Display Resolution: 1440×1080

Features & Performance

• Reticle: 7

• Color Palettes: White Hot, Black Hot, Red Hot, Color

• Stand-by Mode: Yes

• Picture-in-Picture: No

• Image Capture: Yes

• Mobile App: Yes

• Wifi: Yes

• User-Updatable Firmware: Yes

• Connector Output: Power/Data

• Connector Type: USB-C

• Onboard Recording: Yes

• Storage Capacity: 64GB

• Power Source: USB-C External, 18650 Battery

• Run Time: 6.5+

• External Power Source: USB-C

• Warranty: 5 Years

• Startup Time: <10 Seconds, Instant from Standby

• Country of Manufacture: China

Environmental Specs

• Operating Temperature Range: -4°F~122°F

• Ingress Protection: IP67

• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)

Physical Specs

• Height: 1.88

• Width: 2.55

• Length: 4.52

• Housing Material: Magnesium Alloy

• Weight: 11.3 oz

Sensor Specs

• Sensor Type: InfiRay MICRO II

• Device Technology: Thermal Imaging

• Sensor Resolution: 640×480

• Sensor Pixel Size: 12μm

• Sensor Frame Rate: 60hz

• Thermal Sensitivity: <15mk

• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
