Spuhr T2/3x Mag Kit: RDF-20225KIT/ QDF-20153KIT

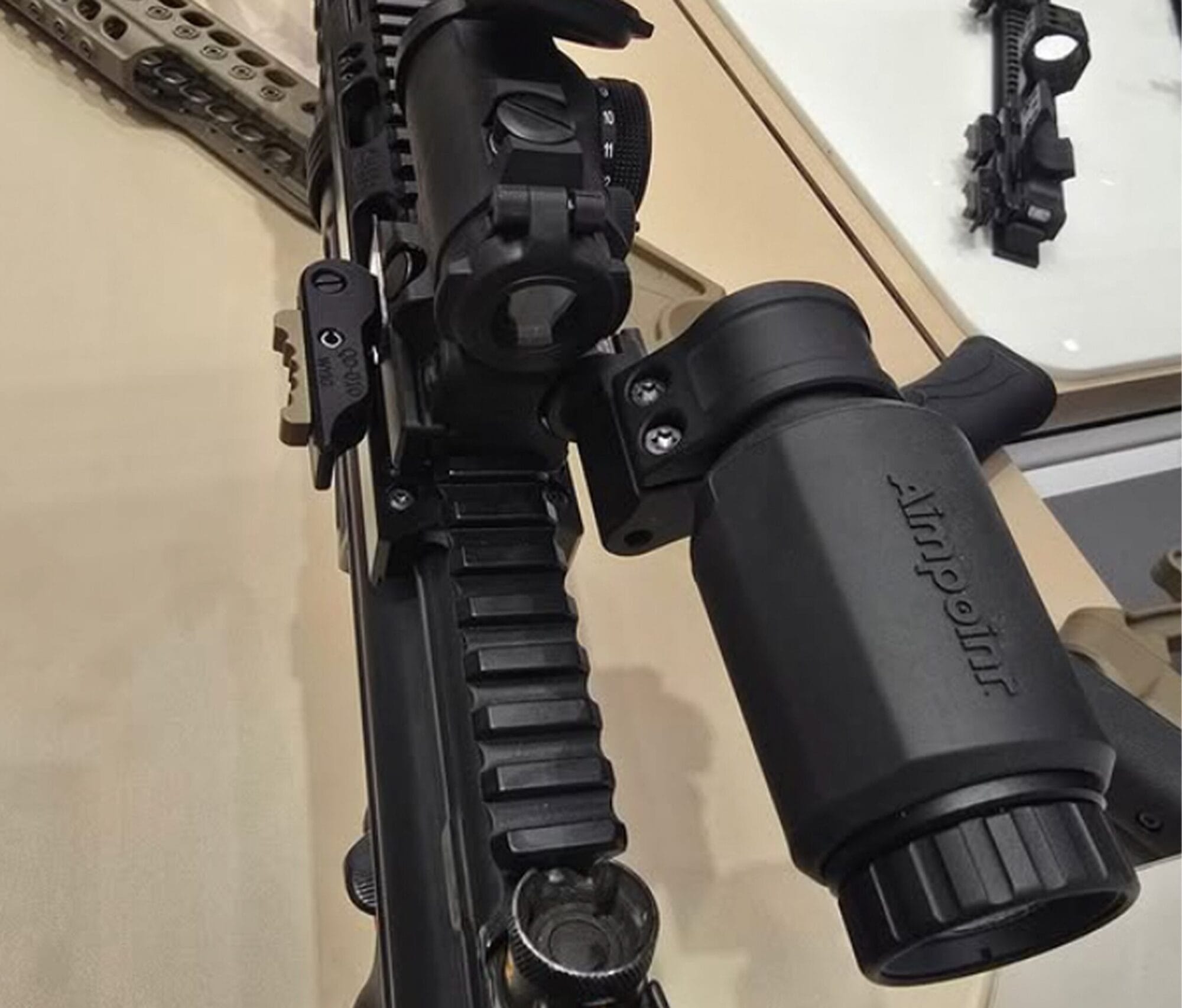

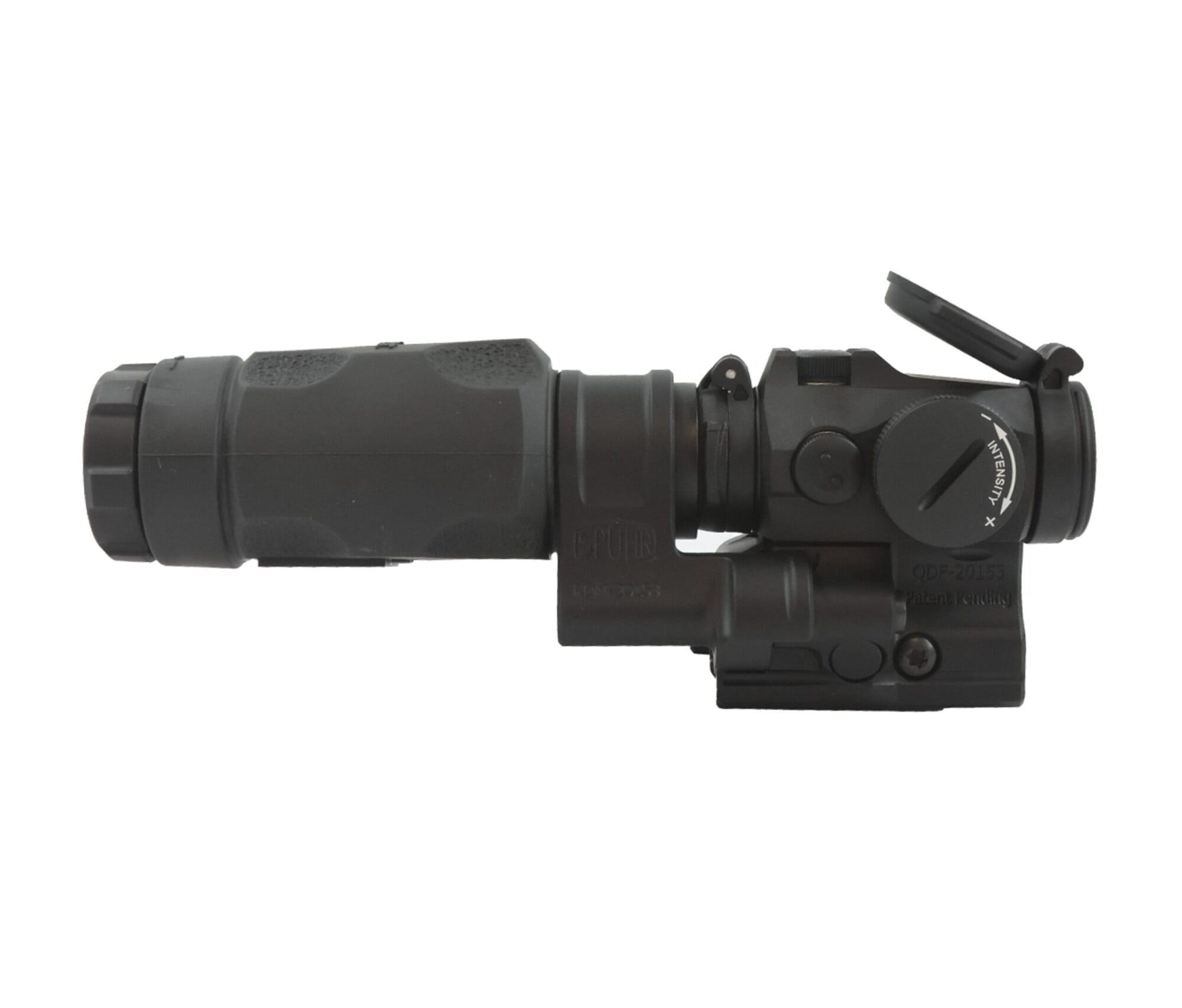

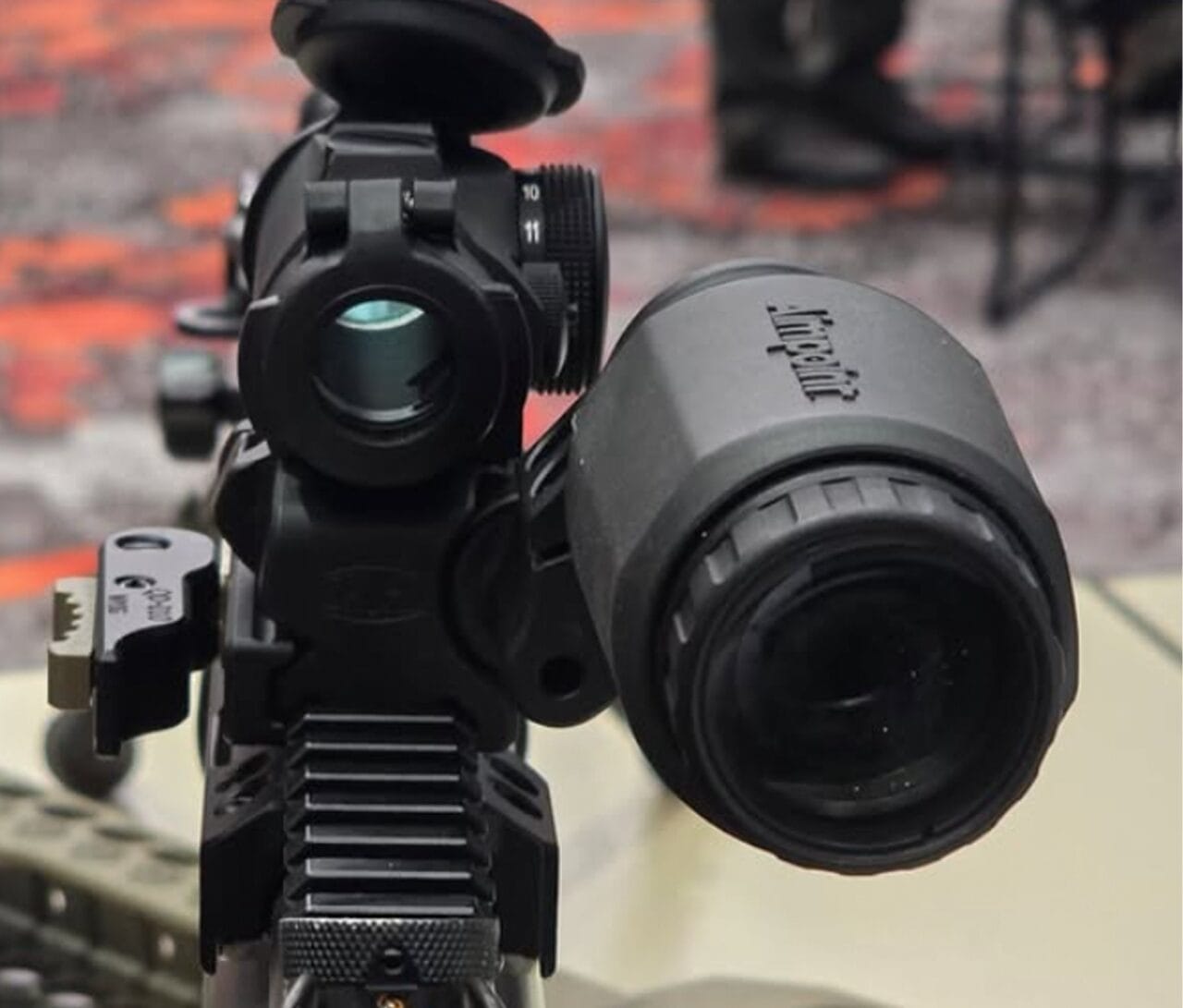

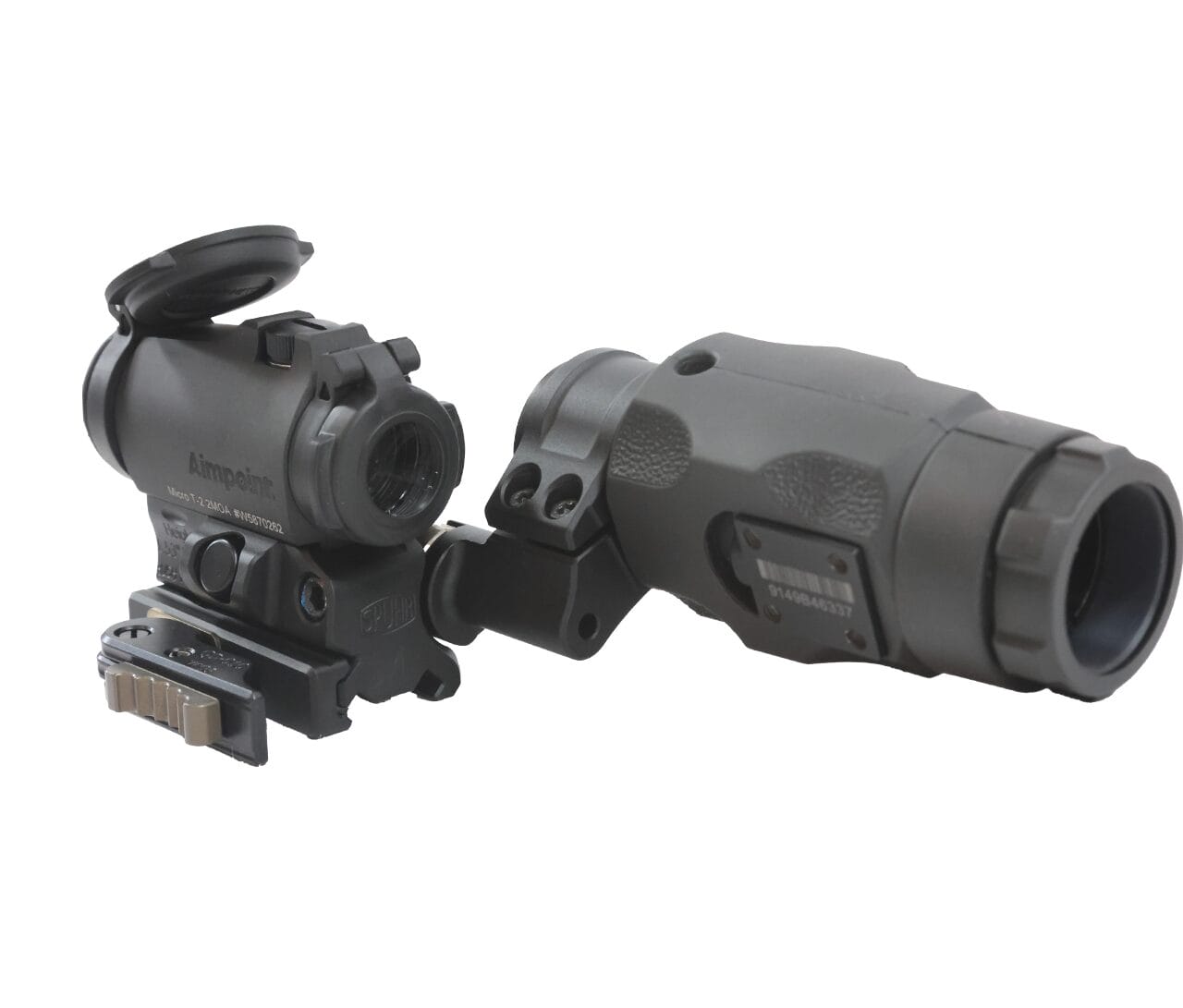

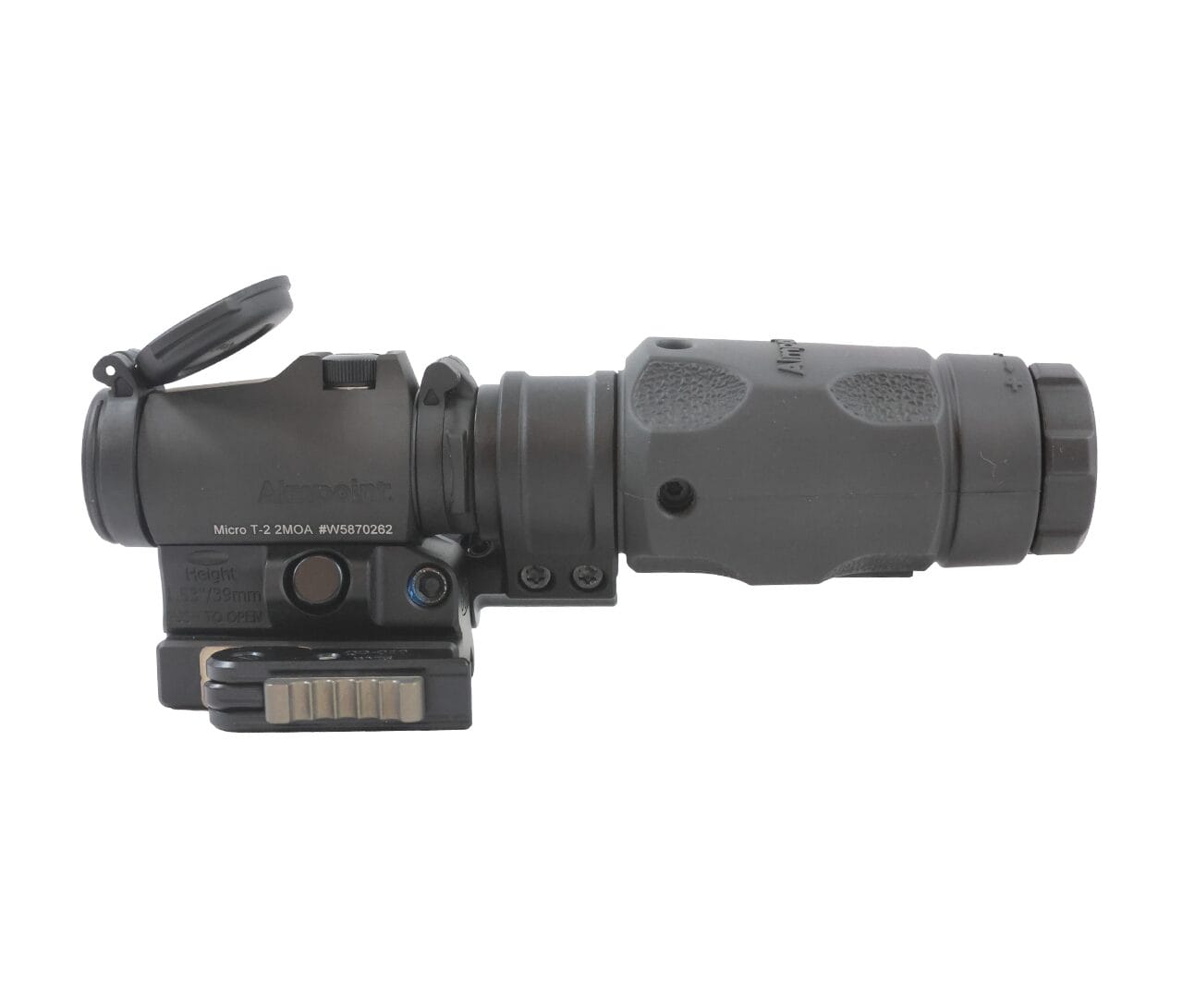

QDF-20153KIT or RDF-20225K Mount w/ Aimpoint T-2 Red Dot & 3XMag-1™ Magnifier – Mount, Magnifier & Red Dot Bundle

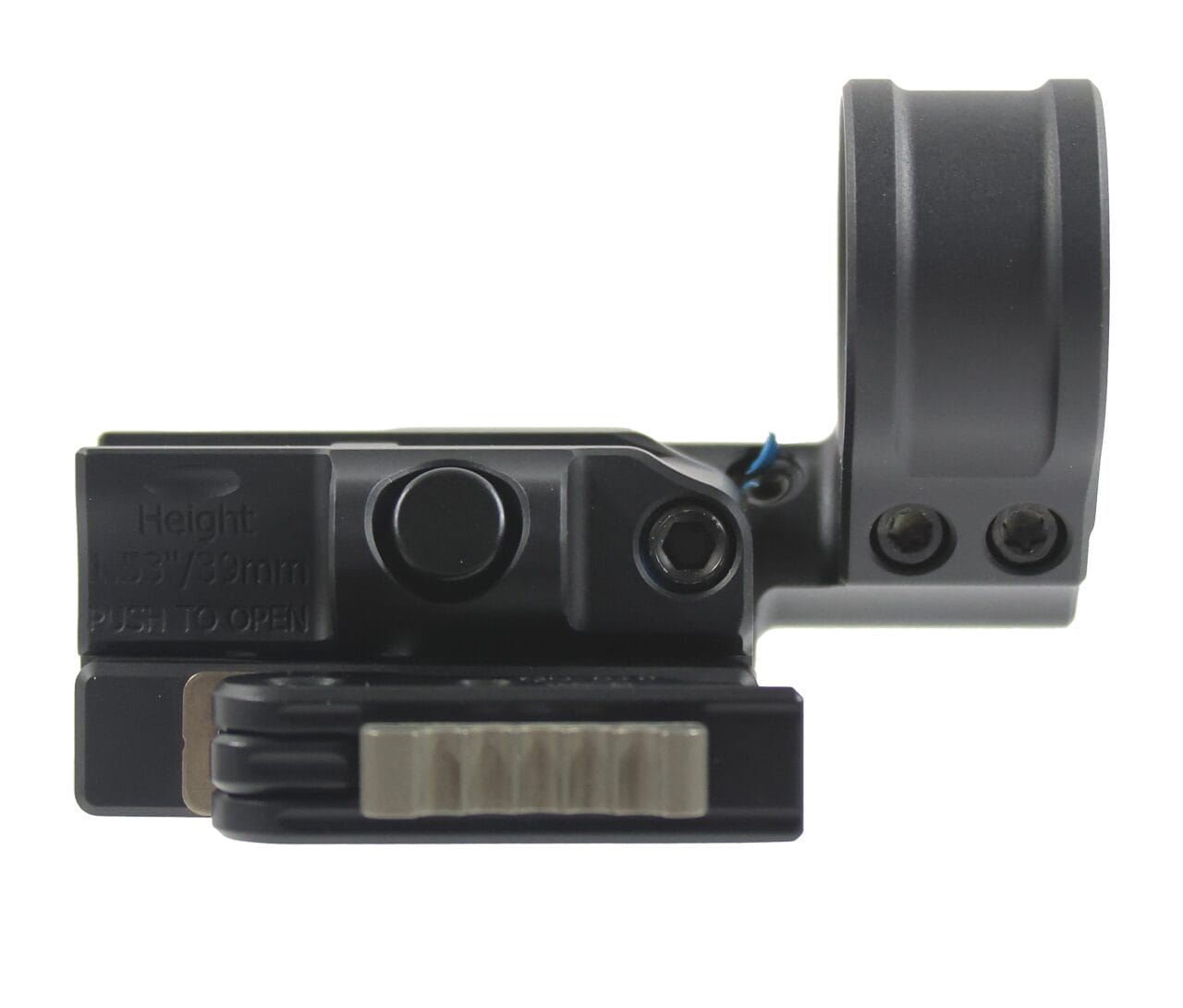

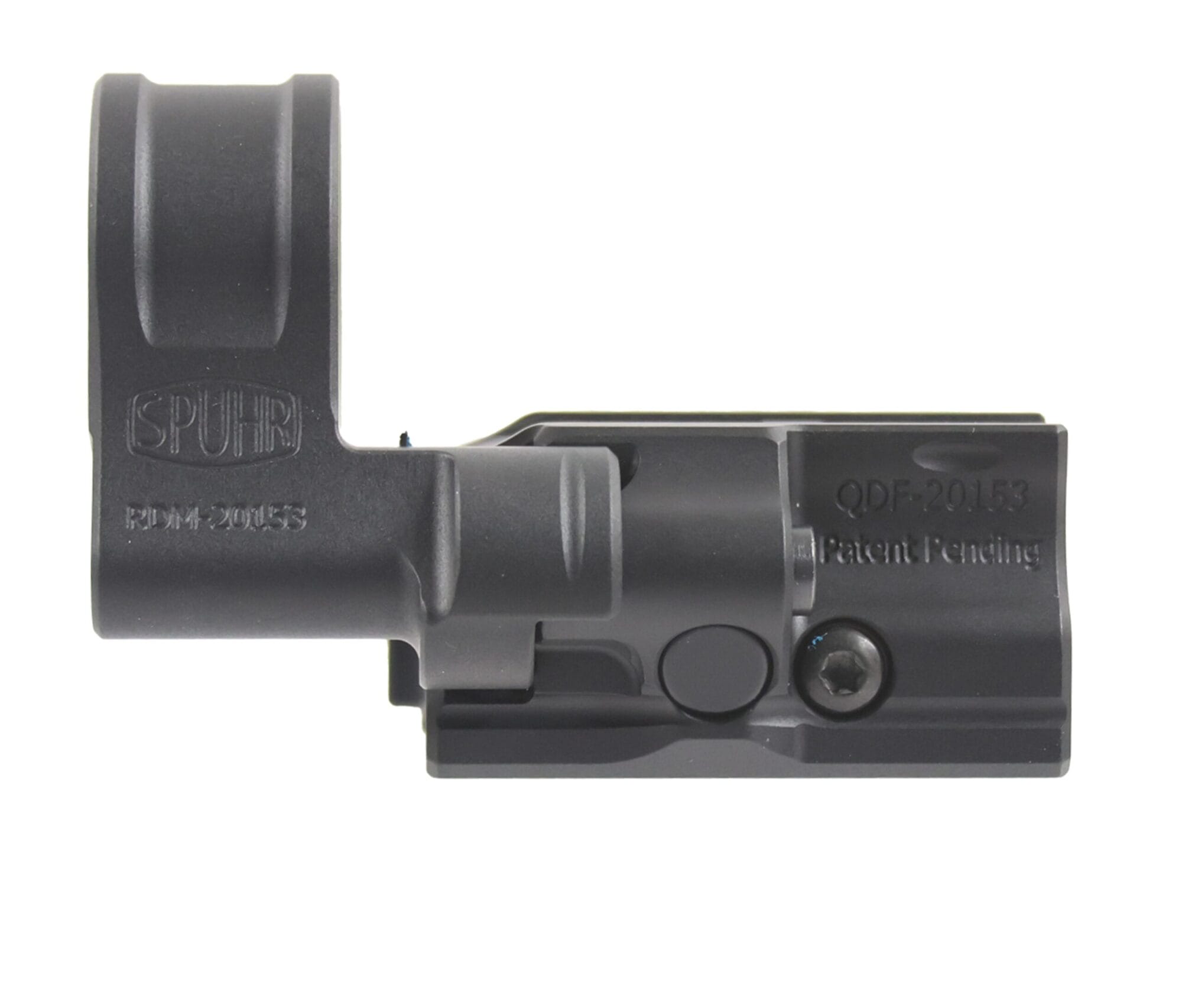

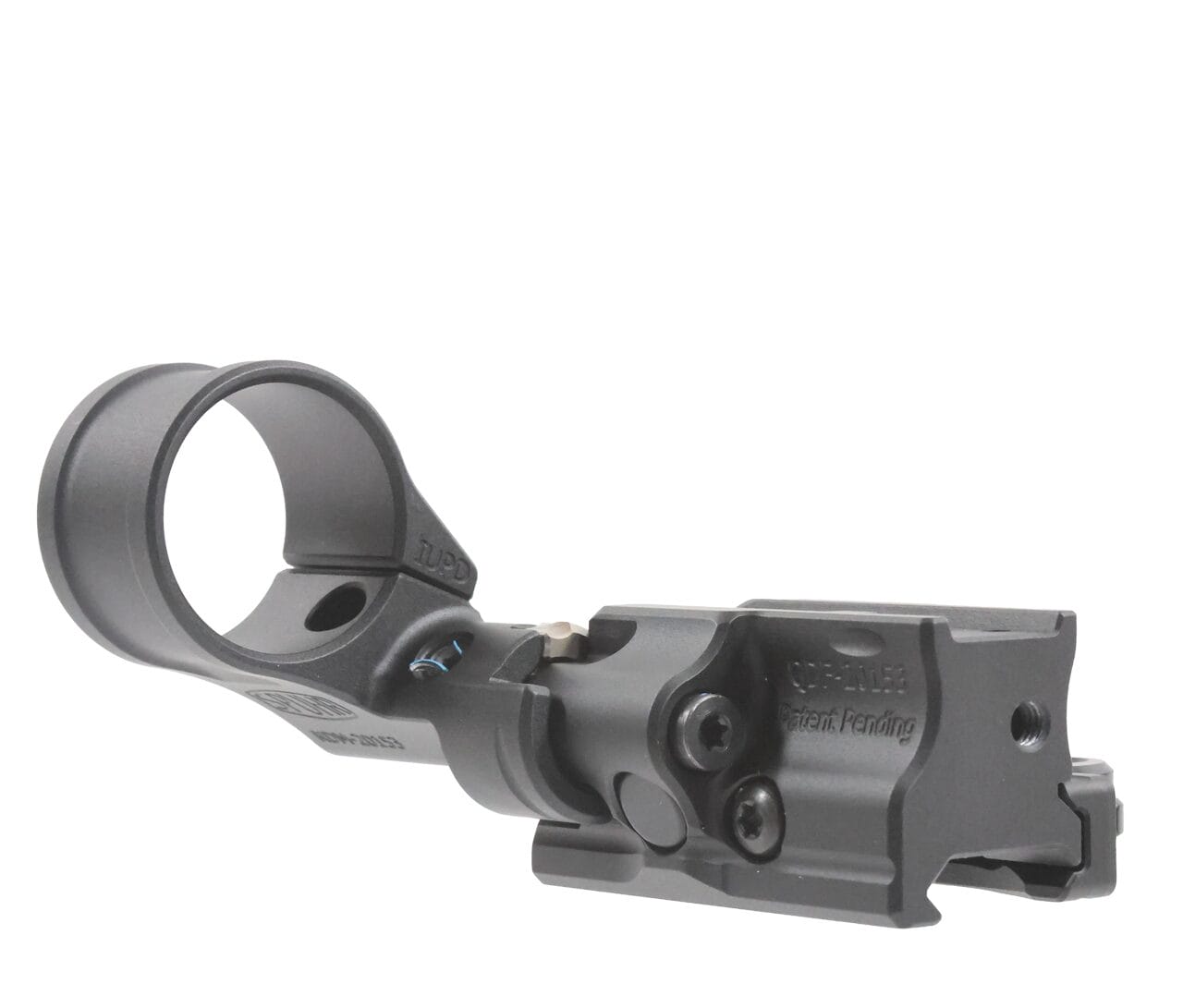

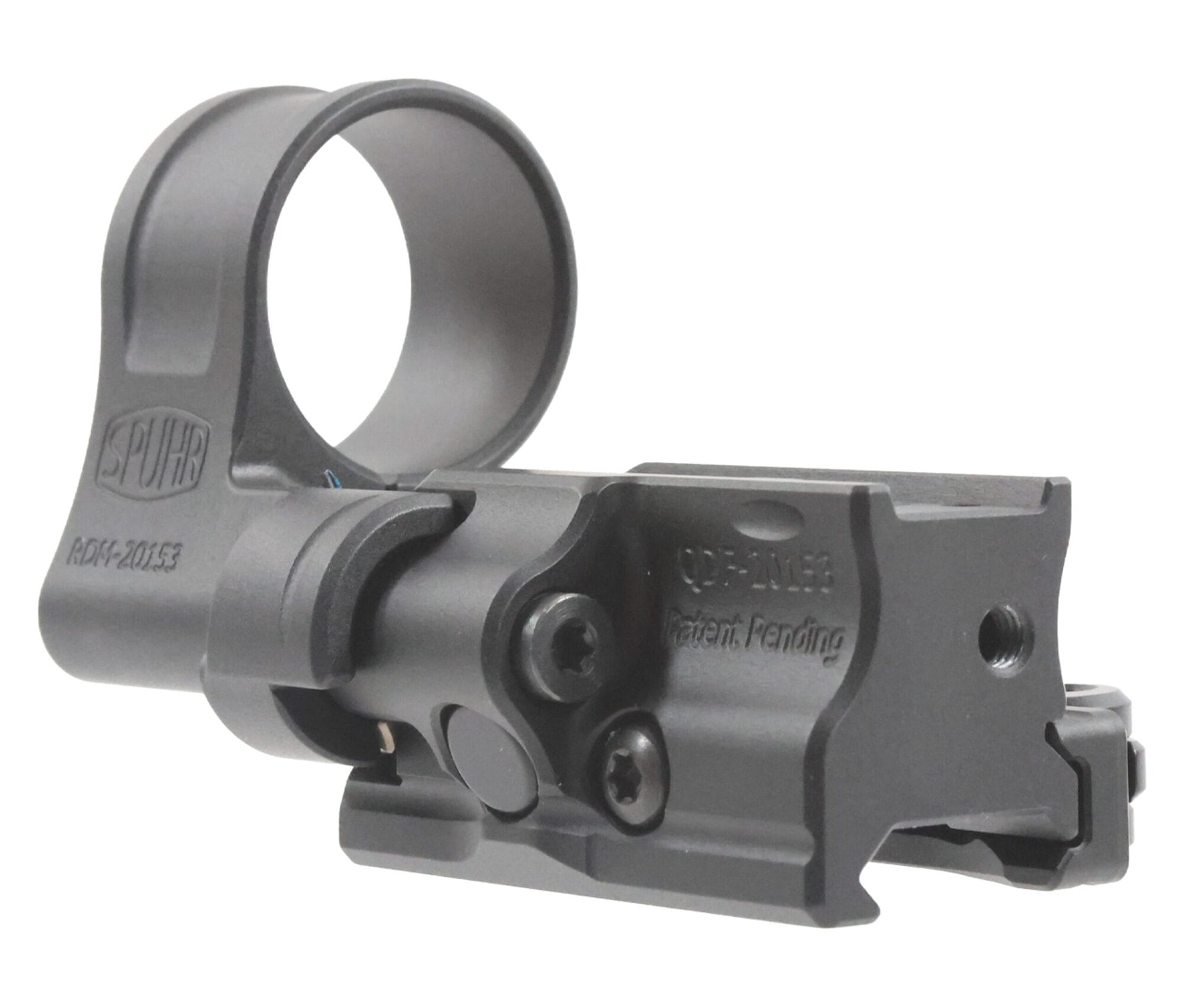

The world’s toughest Red Dot Sight mount – the preferred choice by the elite teams. Models available in various heights for Aimpoint Micro series.

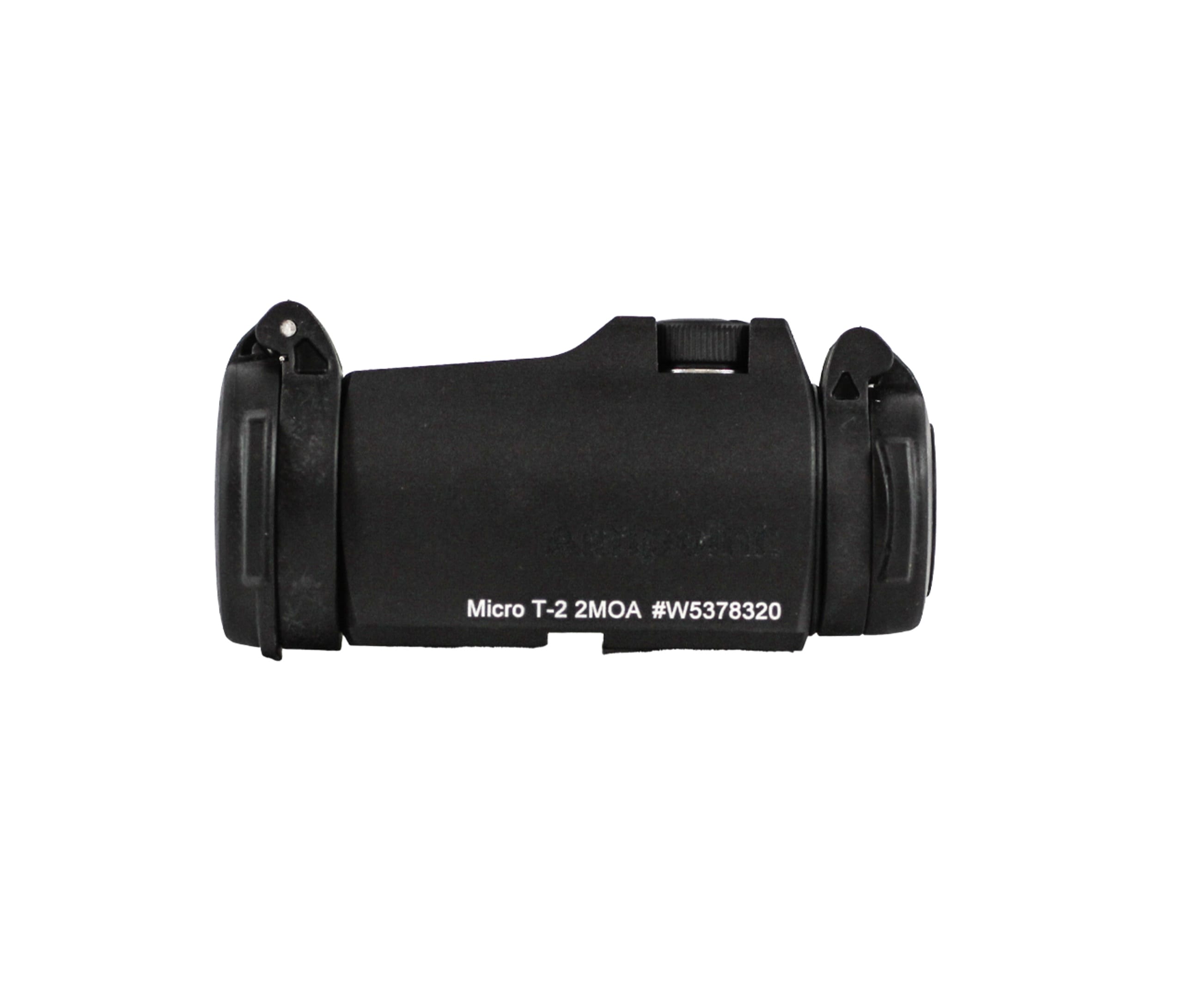

The Aimpoint® Micro T-2 redefines everything you thought you knew about compact red dot sights. Cutting-edge lens coatings radically improves the shape and clarity of the 2 MOA red dot and physical protection has been added for even more ruggedness.

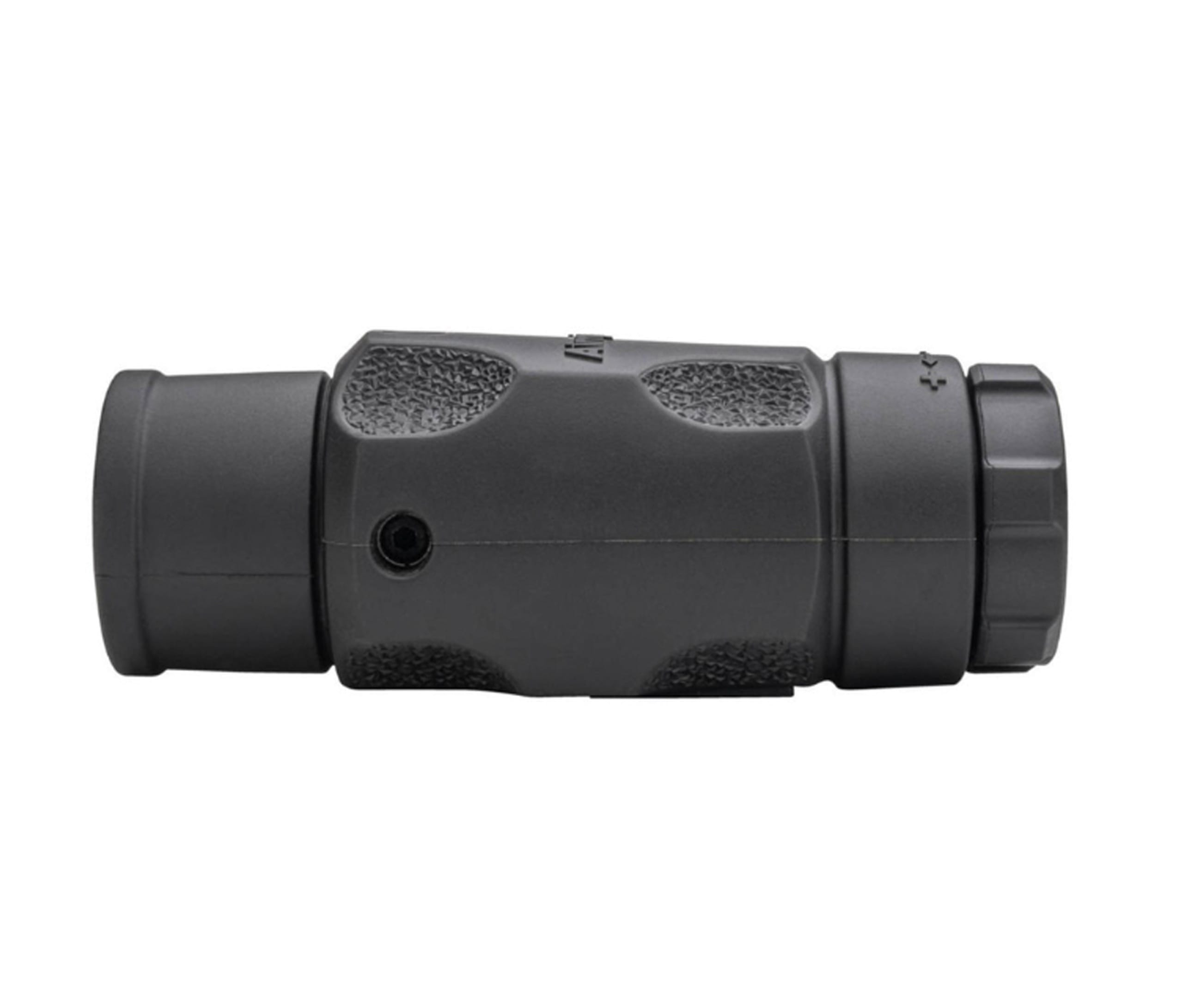

The Aimpoint® 3XMag-1 Magnifier is a 3x power magnifying module built to withstand the demands of professional end-users. The 3XMag-1™ can be paired with an Aimpoint red dot sight for target acquisition at longer distances or used as a 3X hand-held monocular. The 3XMag-1 magnifier is optimized for use with the Micro T-2/H-2, Patrol Rifle Optic, CompM4 series, and CompM5 series of sights, providing a clear, crisp 2 MOA dot under 3x magnification. Centering the dot within the magnifier is quick and easy with the intuitive module windage and elevation adjustments.

RDF-20225K Specifications

• Footprint: Aimpoint Micro
• Height: 57mm/2.25″
• Interface: Picatinny Rail
• Magnifier: Yes
• Optional Rail: Yes
• Quick Release: No

Aimpoint® Micro T-2 Specifications

• Technology: ACET (Advanced Circuit Efficiency Technology)
• Working principle: Reflex collimator sight – red dot sight
• Light source: LED (Light Emitting Diode) totally eye-safe
• Red dot size in MOA (minute of angle): 2
• Parallax: Absence of parallax – No centering required
• Eye relief: Unlimited
• Night vision compatibility: Yes
• Anti-reflex coating all surfaces & multi-layer coating objective lens: Yes
• Magnification: No magnification (1X)
• Battery: One 3V Lithium battery, type CR2032
• Battery life in hours: **50 000 (over 5 years of continuous use)
• Battery life in hours **at NVD settings ***: 500 000
• Dot intensity adjustment: Manual rotary switch
• Daylight (DL) settings: 1 Off & 8 DL of which one extra bright
• NVD settings: 4
• Material housing: Extruded high strength aluminum
• Surface finish: Hard anodized, semi-matte
• Color housing: Black
• Adjustment 1 click:13mm at 100m, (1/2” at 100yds)
• Temperature range: -45° – +71° C, (-50° – +160° F)
• Water resistance – submersible to: 25m, (80ft.)
• Radioactive components used: None
• Length: 68mm, (2.7”)
• Width/height sight only: 41 x 36mm, (1.6” x 1.4”)
• Weight sight only: 96g, (3.4oz)

Aimpoint® 3XMag-1™ Magnifier Specifications

• 3X Optical Magnification
• Compatible with Aimpoint red dot sights for longer-range aiming or observation
• Variable (-3 to +3) dioptric setting
• Sold without a mounting solution
• Can also be used as a handheld 3X monocular
• No re-zeroing needed when shifting between non-magnified and magnified aiming – utilizes the red dot in Aimpoint sights as the aiming reticle
• Ergonomic design for sure grip when used as a handheld observation tool
• Shockproof and Waterproof
• Screws and Allen key included
• Field of view (FOV): 7°
• Eye relief: 2.8 in (70 mm)
• Submersible to 80 feet (25 meters)
• Temperature span -49°F to +160°F
• Weight 8.1 oz / 230 g (magnifier only)
