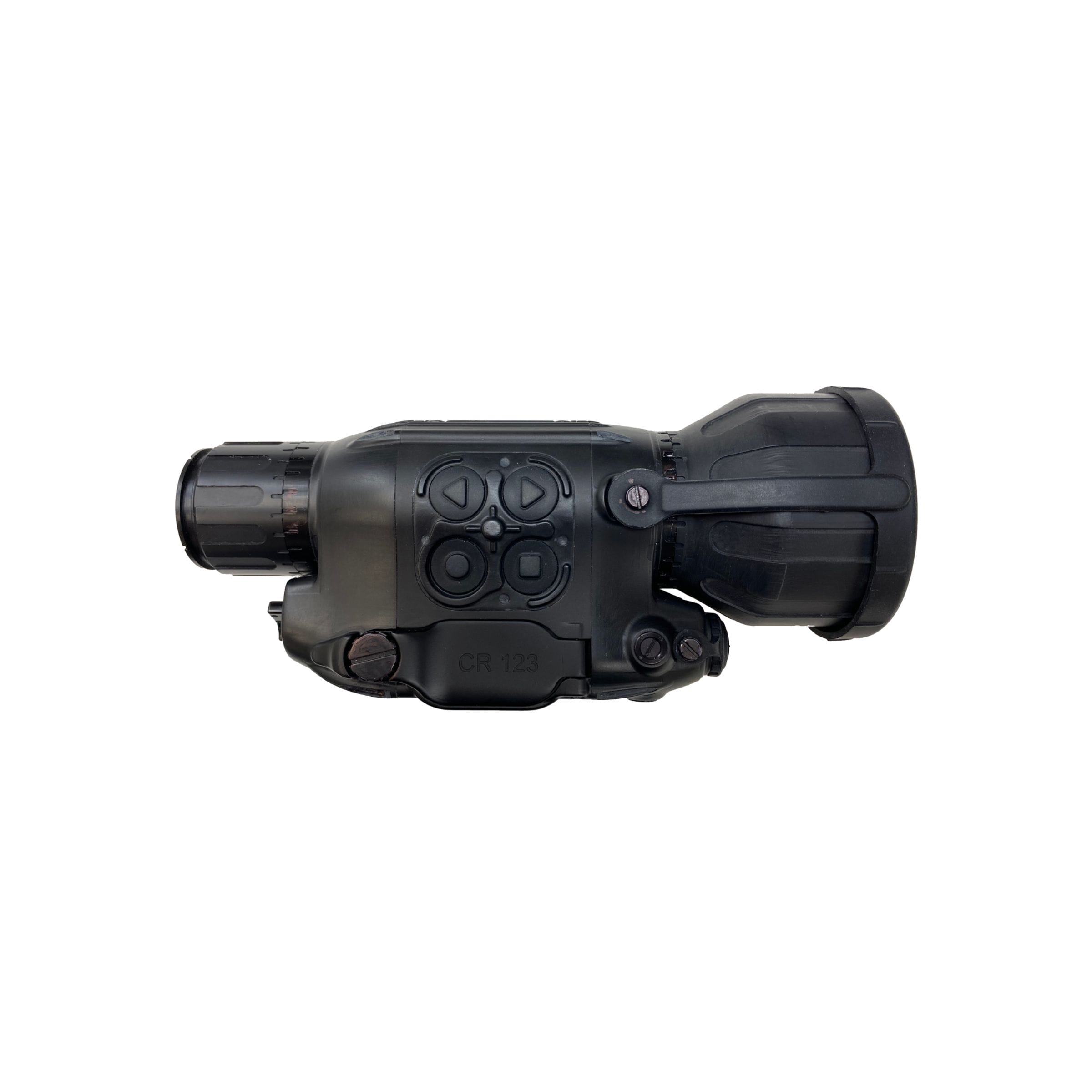

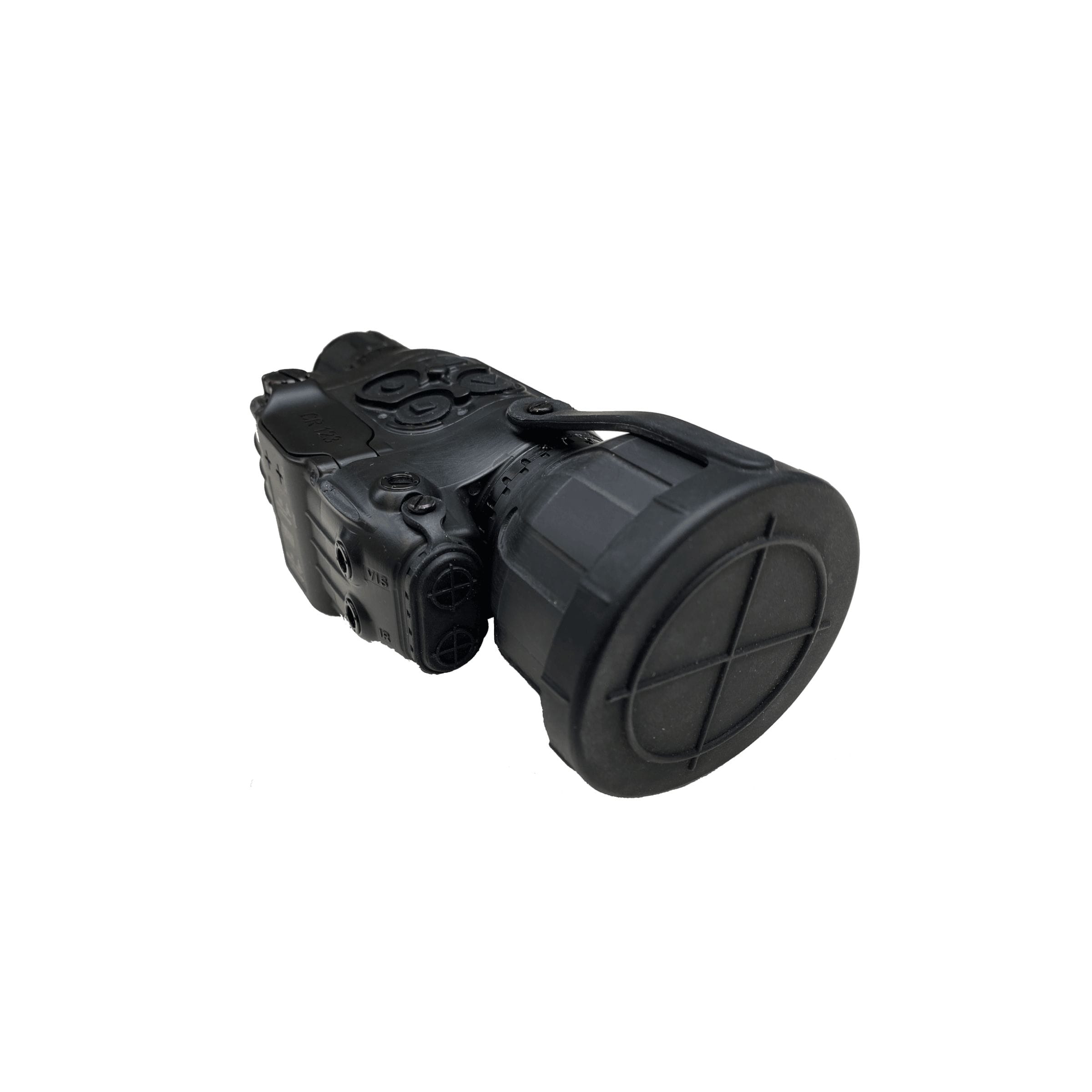

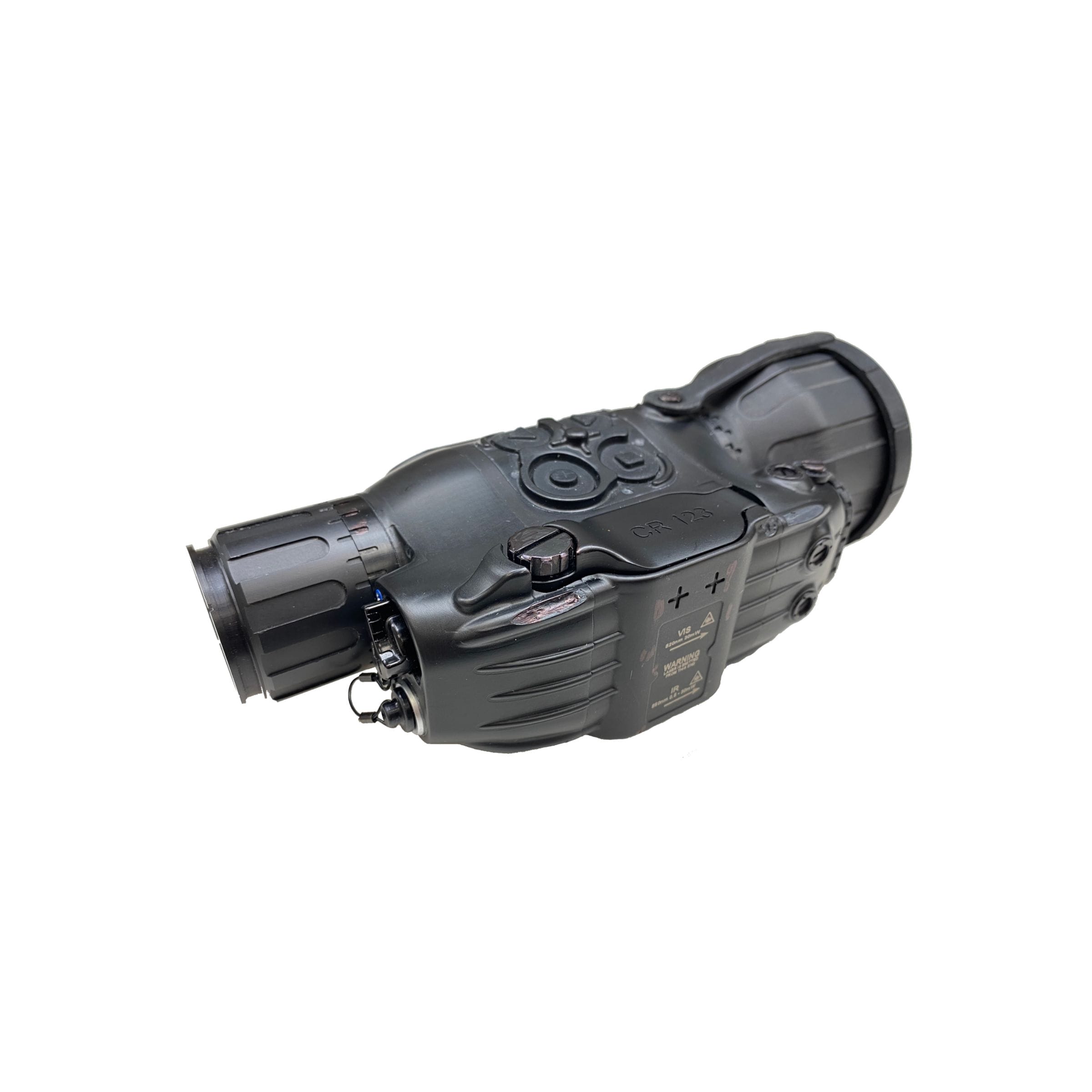

Pixels on Target VooDoo-M/ML (Medium/Long Range Monocular)

$21,999.00

The VooDoo-M is the next-generation of thermal imaging systems. We’ve kept what you require, improved what you asked for, and added what you’ve always desired. Feature rich, yet easy to use all under 18 oz.

  • Sharpest image on the market for observation and search & rescue operations
  • Weapons mountable with QD/Flip-to-Side Wilcox Mount
  • Handheld Long Range Thermal for Reconnaissance

Luminary Guard Technologies Promises

  • Check Mark Satisfaction Guaranteed
  • Check Mark Manufacturer's Warranties Honored
  • Check Mark Secure Payments
  • Check Mark Extraordinary Service
Secure Payment Via Authorize.net
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
SKU: pixels-on-target-voodoo-m Category: Tags: ,

Pixels on Target VooDoo-M/ML (Medium/Long Range Monocular)

Multi-Mission Uncooled Thermal Sight

The VooDoo-M is the next-generation of thermal imaging systems. We’ve kept what you require, improved what you asked for, and added what you’ve always desired. Feature rich, yet easy to use all under 18 oz.

APPLICATIONS

  • Sharpest image on the market for observation and search & rescue operations
  • Weapons mountable with QD/Flip-to-Side Wilcox Mount
  • Handheld Long Range Thermal for Reconnaissance

Features

PRECISION & ACCURACY

VooDoo-M provides accuracy to <0.5 MOA at 100 yards.

SHOCK TESTED

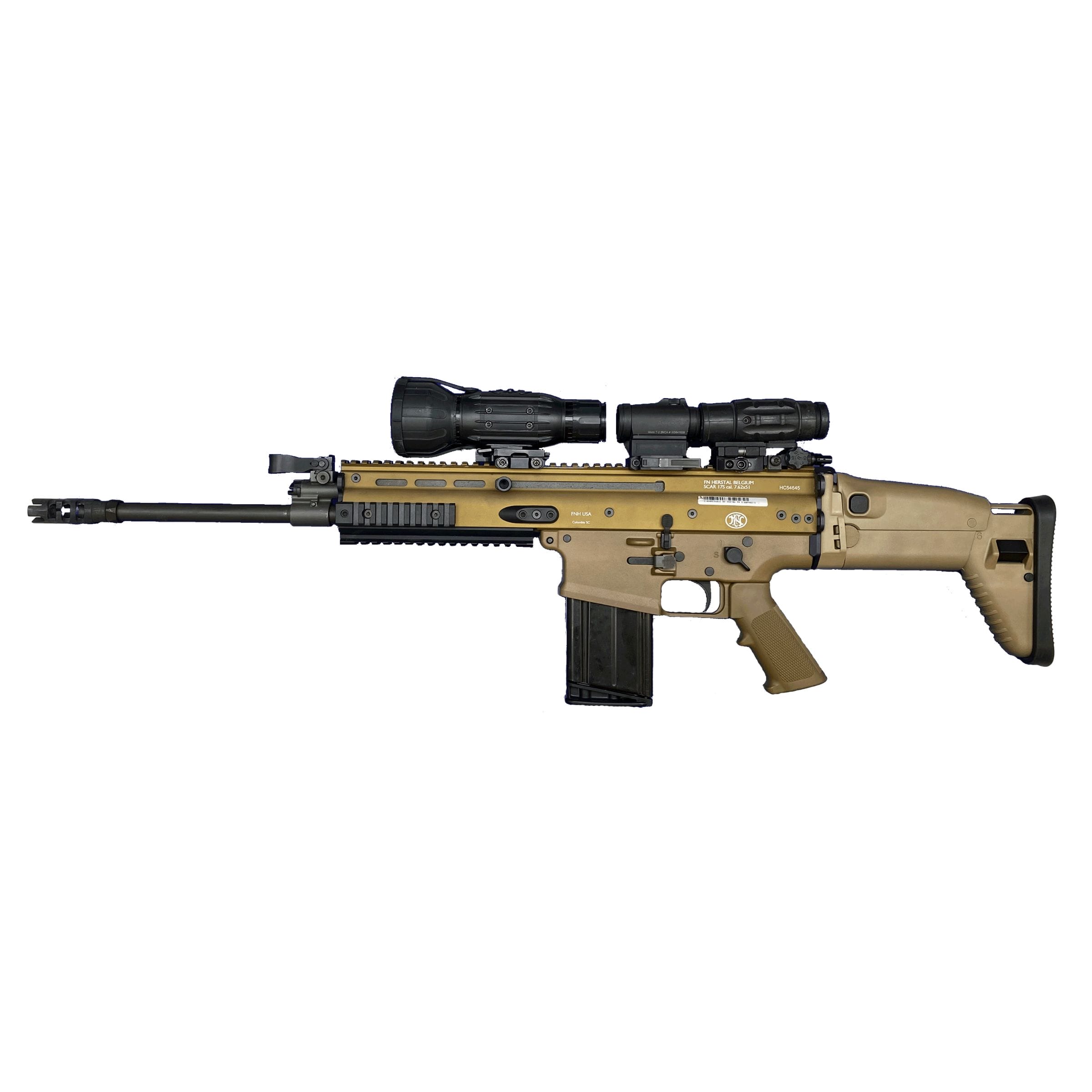

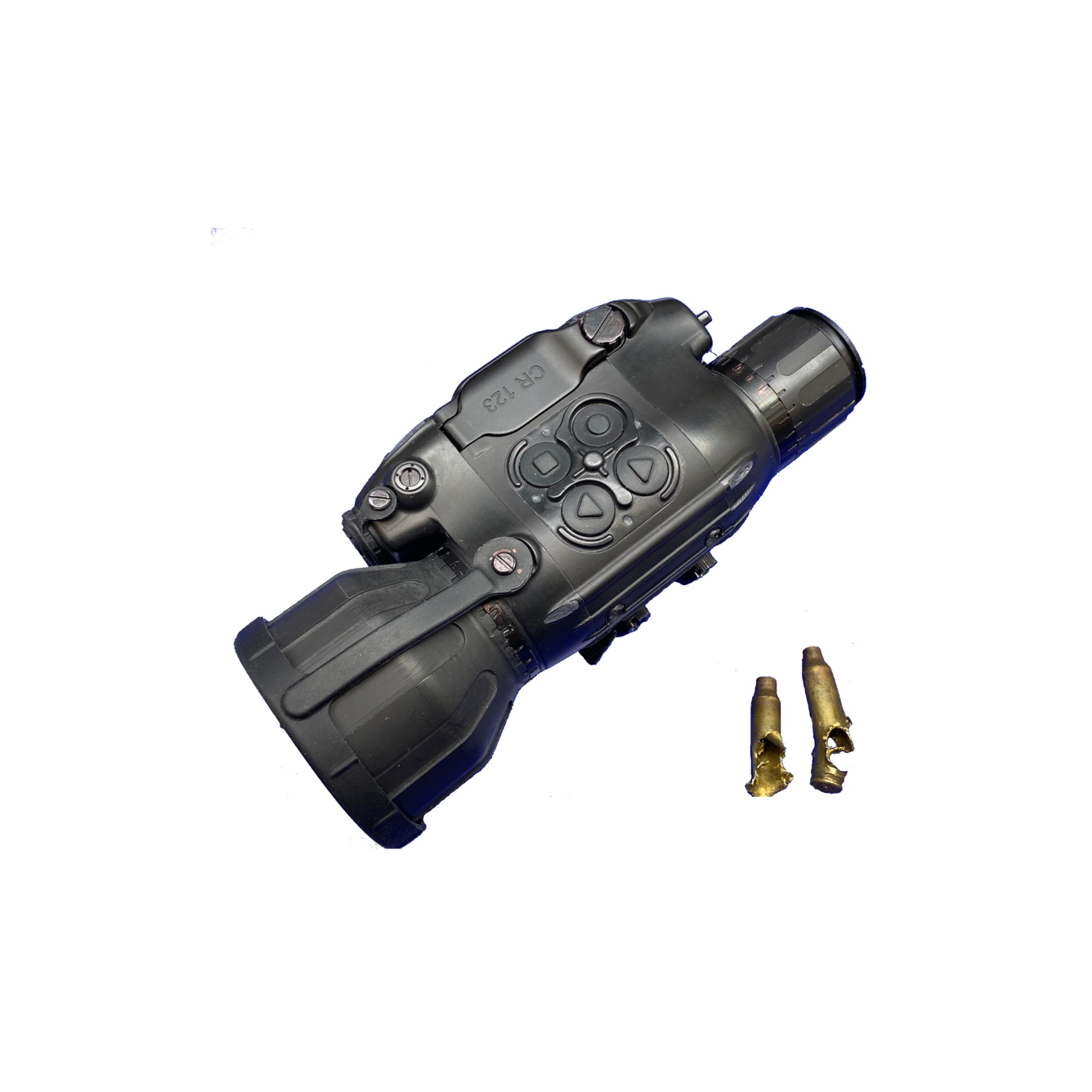

VooDoo-M is built tough to withstand any small arms calibers. We tested without failure or bullet impact shift, 5000 rounds of 7.62 x 51 NATO through the SCAR-17 Heavy.

Lasers Optional

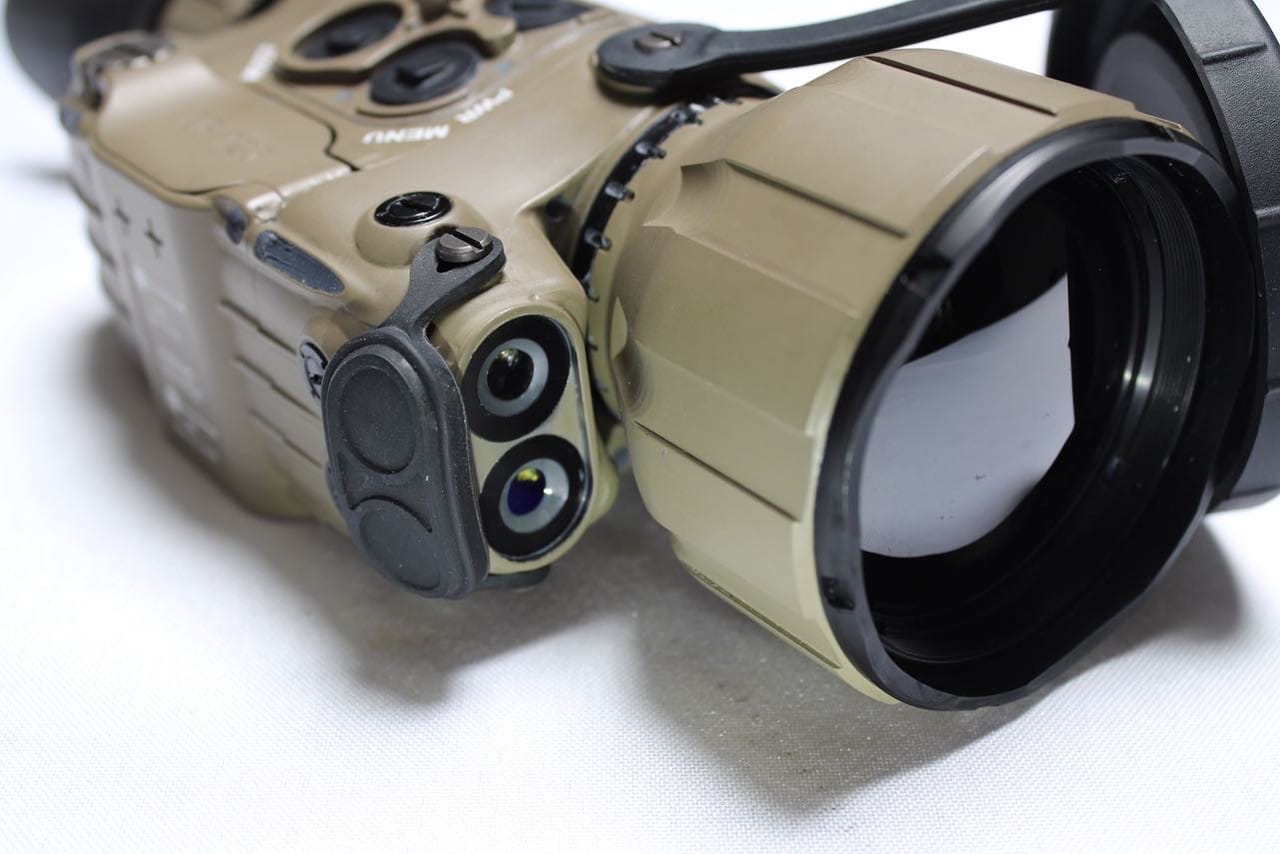

VooDoo-M is available with and without a Eye Safe Laser Module consisting of Visible (Red or Green) & NIR.

AI & ML CAPABLE

VooDoo-M has advanced hardware features to enable integration of Artificial Intelligence and Machine Learning that no other optic of its size, weight and power offers on the world market.

MISSION PROFILES & COMMUNICATIONS

VooDoo-M also has the ability as the first thermal optic to offer such power and connectivity for our modern warfighters. Load mission-specific profiles, integrated communications via secured links, and friendly vs. enemy indicators, thus reducing Blue-on-Blue Safety issues.

Specifications

  • Sensor: 640 x 480 Micro Bolometer
  • Pitch: 12 Micron
  • Sensitivity: < 50 mK
  • Digital Zoom: 0.5x / 1x / 2x / 4x
  • NUC: Customized Solution
  • MOA: < 0.5
  • Day Time Optic Compatibility: Up to 16x
  • Reticle Types: Standard or Custom
  • Polarity Modes:
    • Black Hot
    • White Hot
    • White Edge Detect
    • Black Edge Detect
    • Dynamic
  • Digital Magnetic Compass: Yes
  • OLED Type: Digital Monochrome
  • Resolution: 640 x 480
  • Refresh Rate: 60 Hz
  • Eye Relief: 23mm
  • Adjustable Diopter: +/- 2
  • Startup Time: < 3 SEC
  • Battery: 2x CR123 (Optional Remote Rail Battery Pack or AC/DC Power Cable)
  • Battery Runtime: < 6 HRS
  • Weight: < 18 oz
  • Environmental: MIL-STD-810G
  • Mount: Wilcox Shoe with QD/Flip to Side Mount
Color

Tan, Black
Sensor

640 X 480 Micro Bolometer
Pitch

12 Micron
Sensitivity

<50 mK
Digital Zoom

0.5x / 1x / 2x / 4x
NUC

Customized Solution
MOA

<0.5
Daytime Optic Compatibility

Up to 16x
Reticle Types

Standard or Custom
Polarity Modes

WHITE HOT / BLACK HOT / WHITE EDGE DETECT / BLACK EDGE DETECT / DYNAMIC
Digital Magnetic Compass

Yes
OLED Type

Yes
Resolution

640 x 480
Refresh Rate

60 Hz
Eye Relief

23mm
Adjustable Diopter

+/-2
Startup Time

<3 sec
Battery Type

2 X CR123 (Optional Remote Rail Battery Pack or AC/DC Cable)
Battery Runtime

<6 hrs
Weight

<18 oz
Environmental

MIL-STD-810G
Mount

Wilcox Shoe w/ QD/Flip-to-Side Mount
Model

Voodoo-ML Tan Green Vis IR Lasers, Voodoo-ML BIk Green Vis IR Lasers
