Spuhr A-0227: Angled Universal Interface for ISMS™ Red Dot Interfaces

Angled Intermediary Interface for ISMS™ Red Dot Interfaces

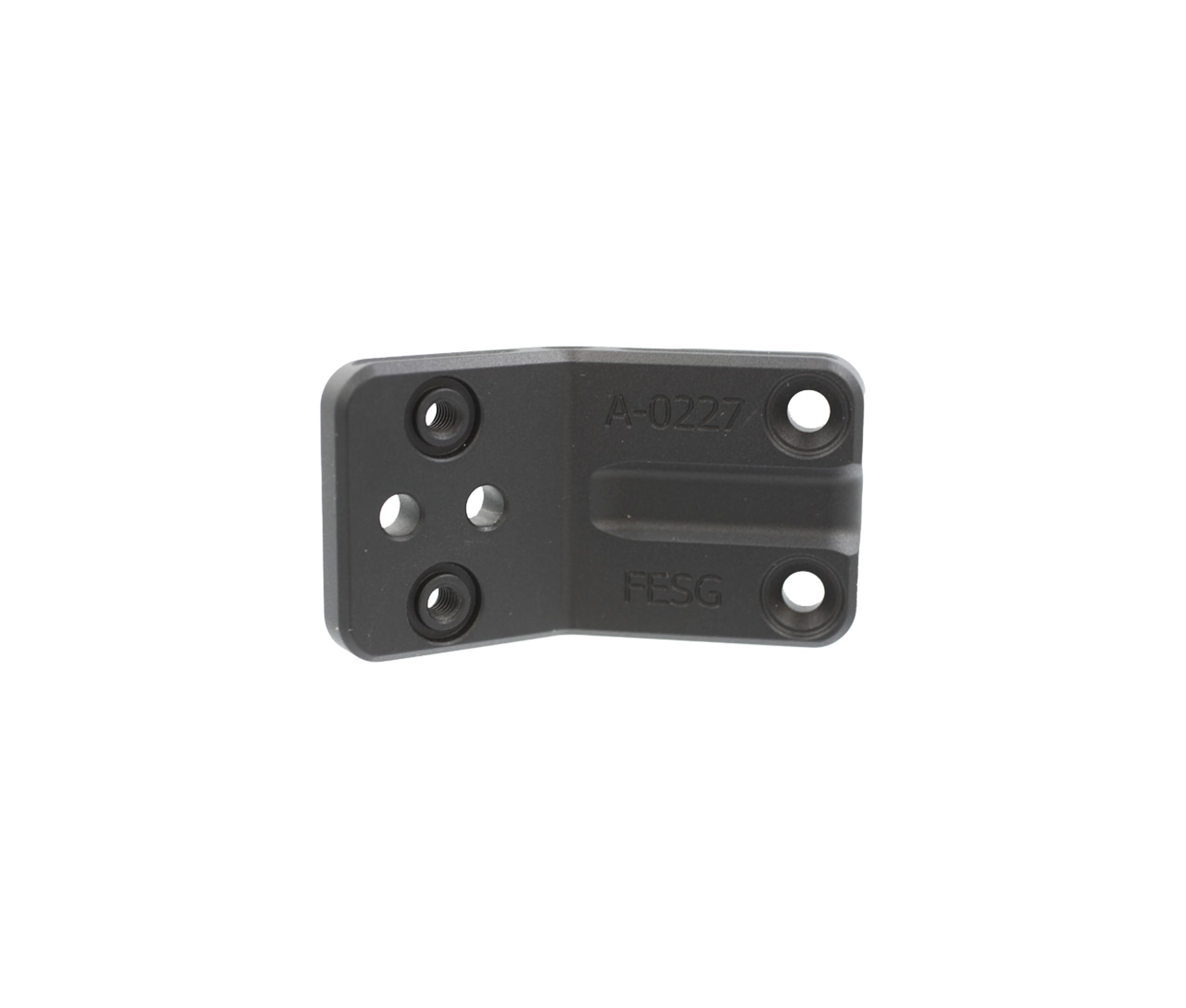

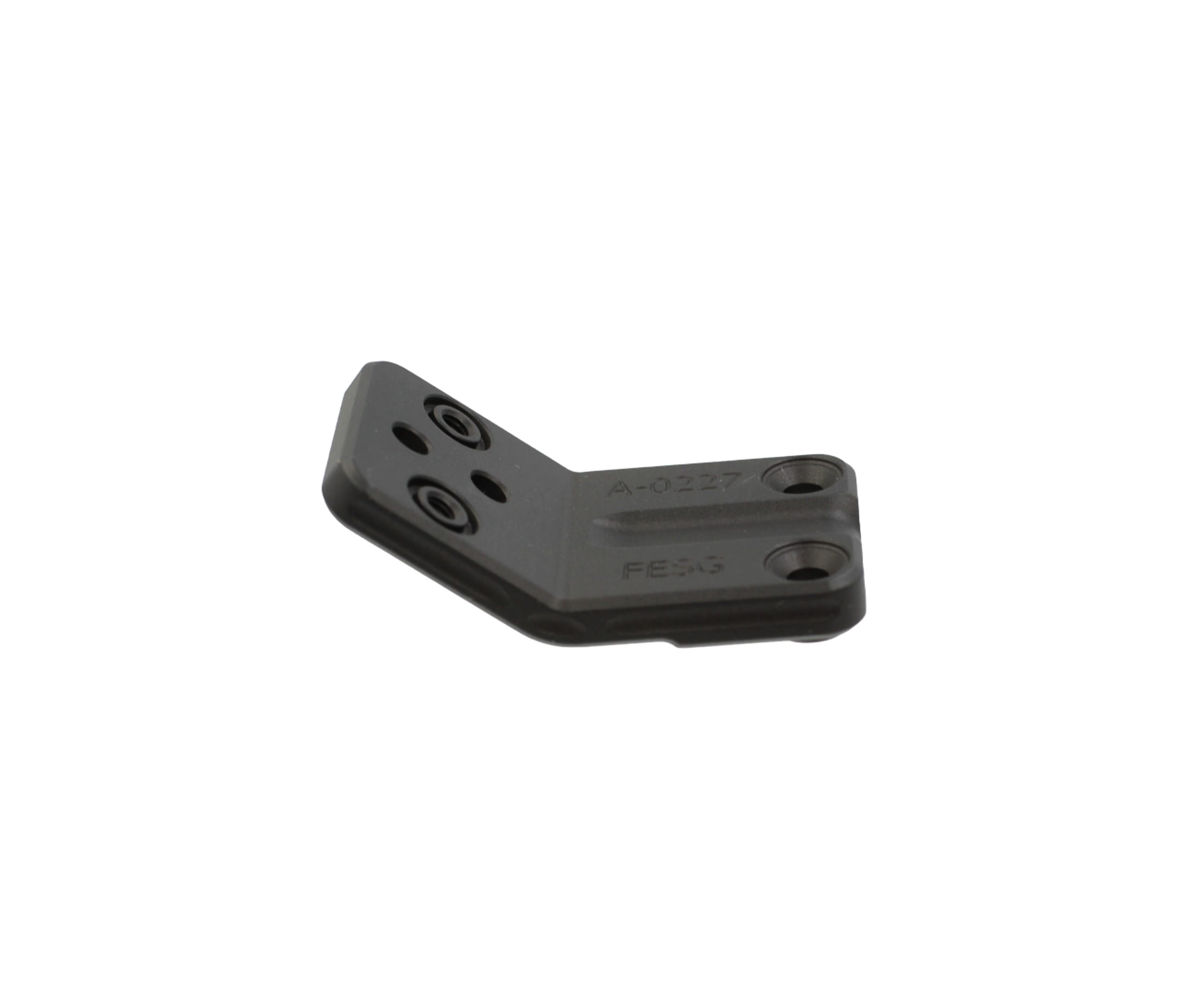

The A-0227 Angled Universal Interface is a lightweight aluminum interface for attaching Ideal Scope Mount System™ (ISMS™) accessories at a 20-degree angle to a Spuhr Interface™, such as on the ISMS™ series of mounts.

Specifications

• Length: 32 mm/1.26”
• Width: 30.5 mm/1.20”
• Height: 55.7 mm/2.19”
• Weight: 33 g/1.7 oz

The A-0227 is designed to position the accessory at the 4:30, or the 7:30-position for left-handed use, so that the rifle can be rotated to the side without the shooter having to break cheek weld to use the accessory.

The A-0227 is especially suitable for the following Red Dot interfaces:

• A-0009 DeltaPoint Interface
• A-0010 Trijicon RMR Interface
• A-0011 Docter/Burris Interface
• A-0055 Aimpoint ACRO Interface
• A-0225 C-More Interface
• A-0226 Shield Interface

Note: The A-0227 is also included in the A-0228 Micro Side Interface for Aimpoint Micro series. The A-0227 is made from 7075 T651 aluminum and is hardcoat anodized and includes ZiNi-coated fasteners.
