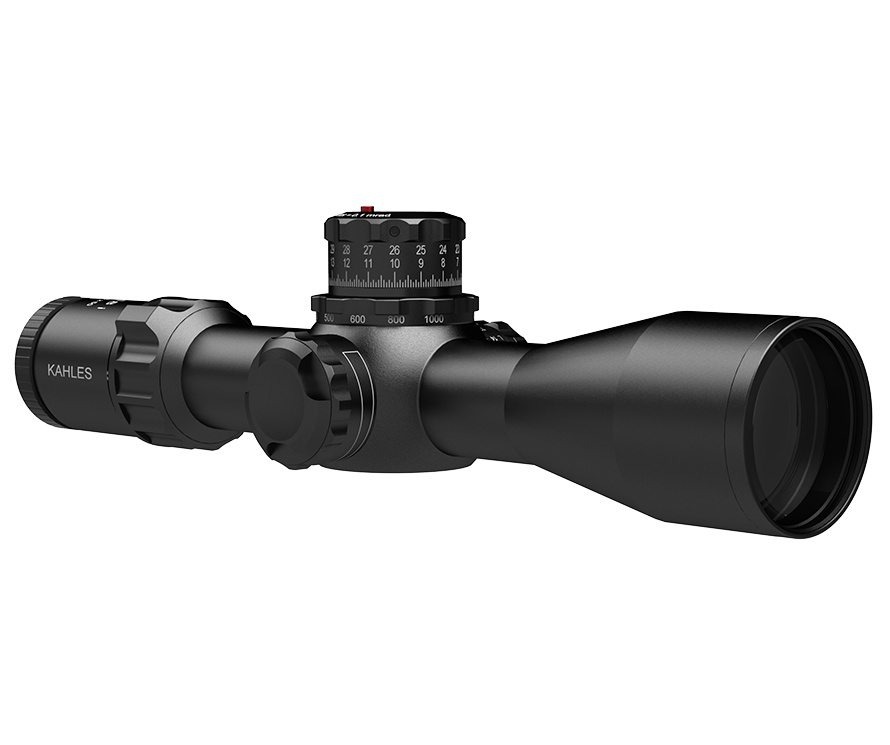

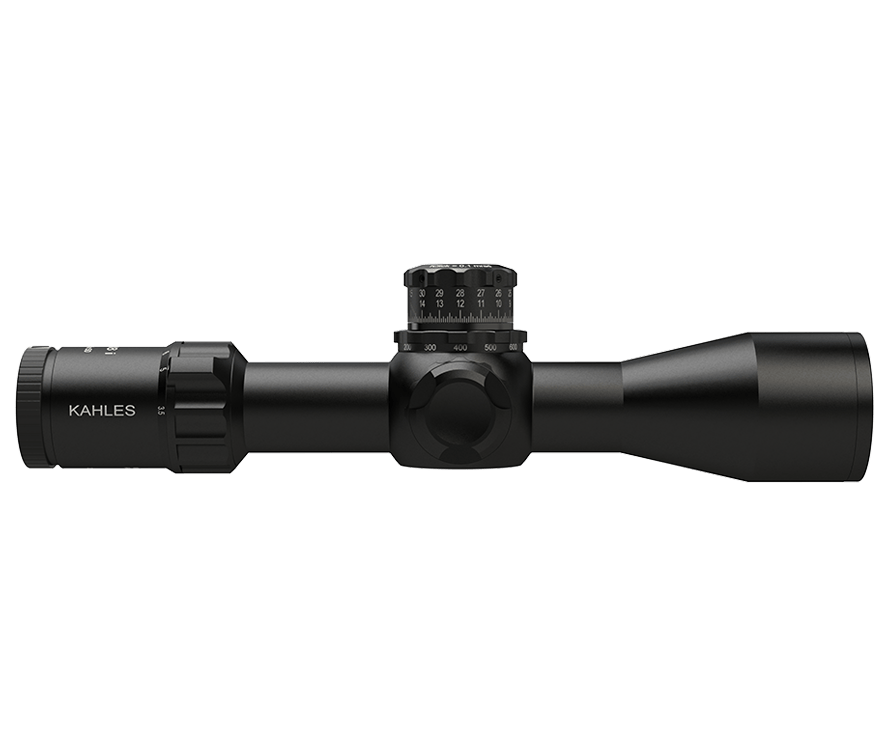

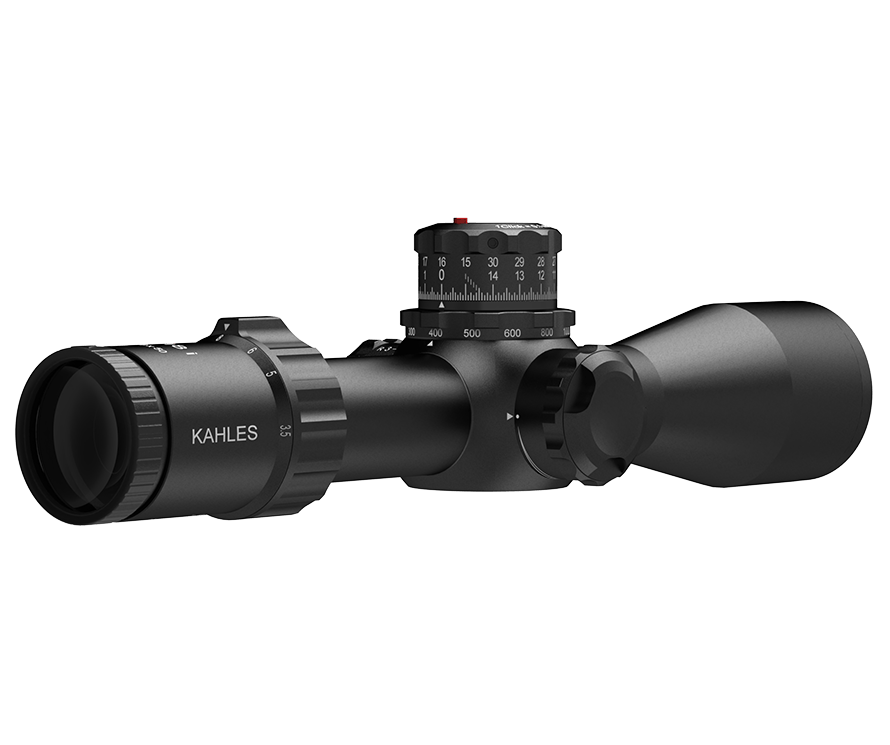

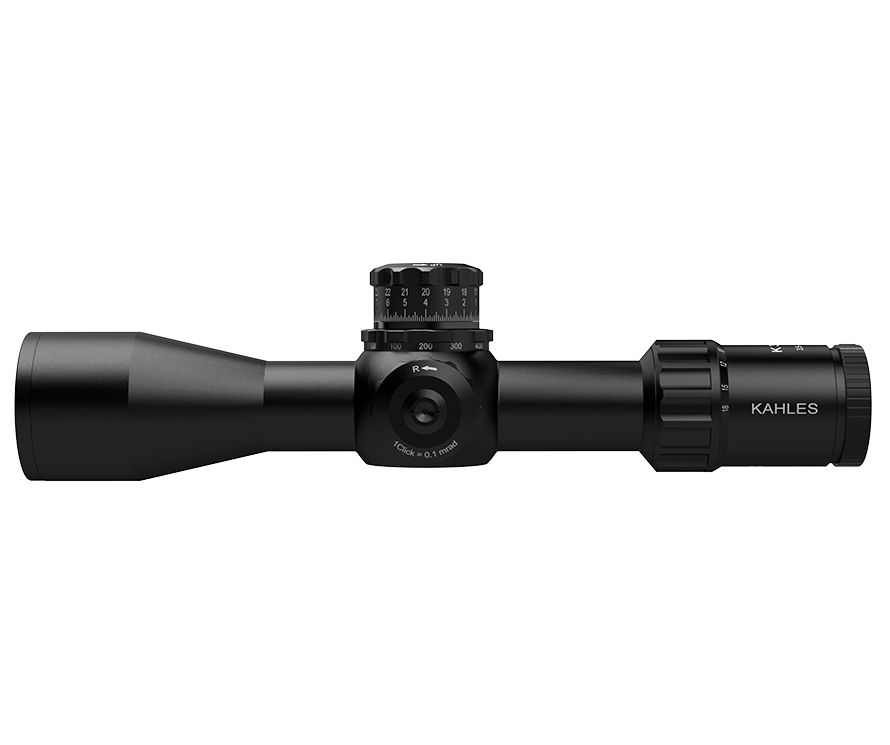

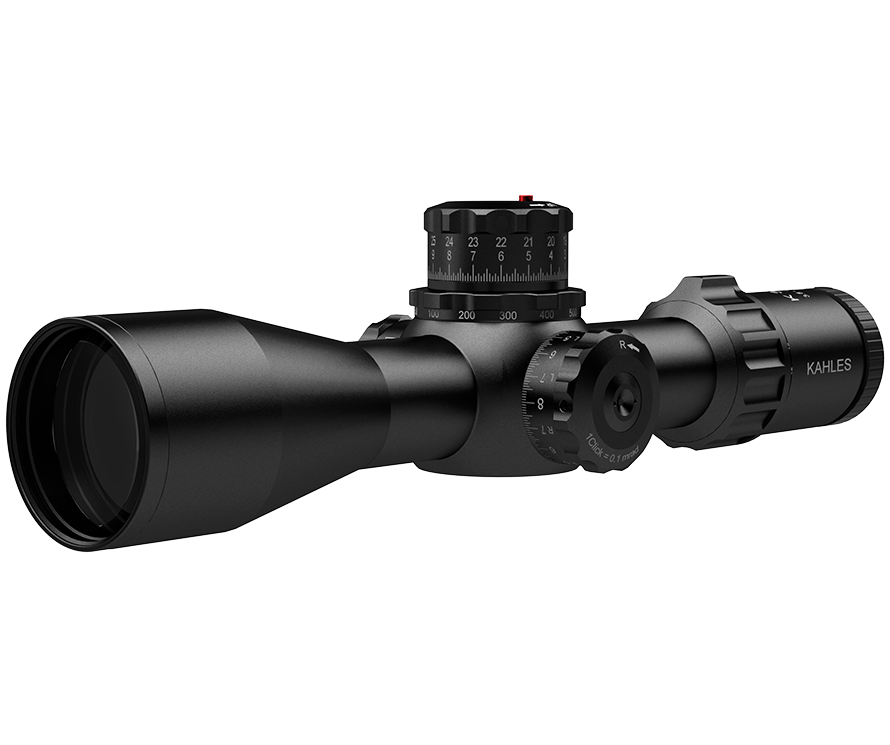

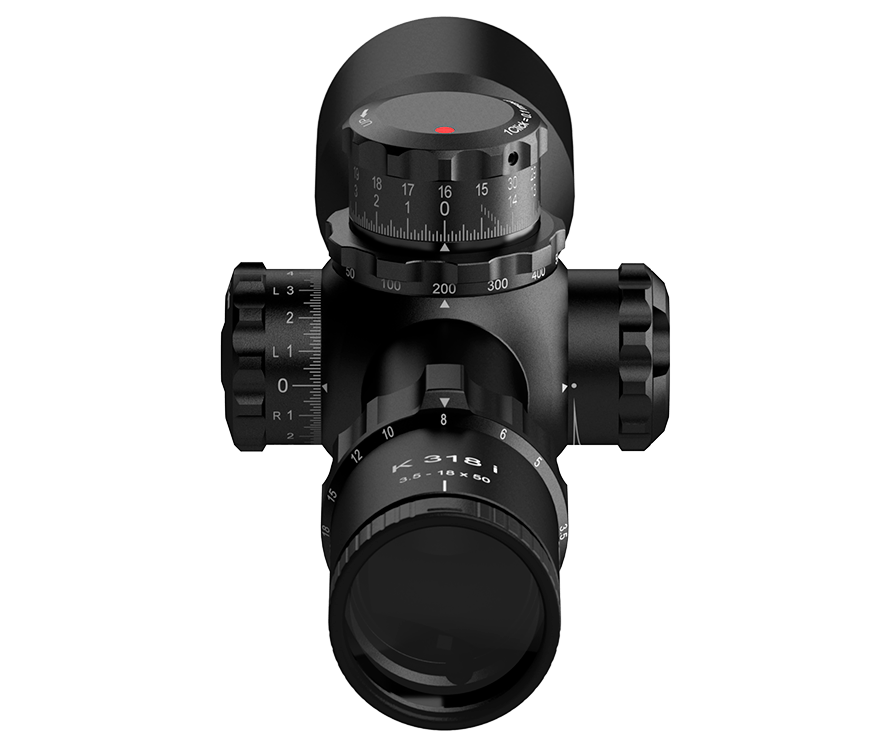

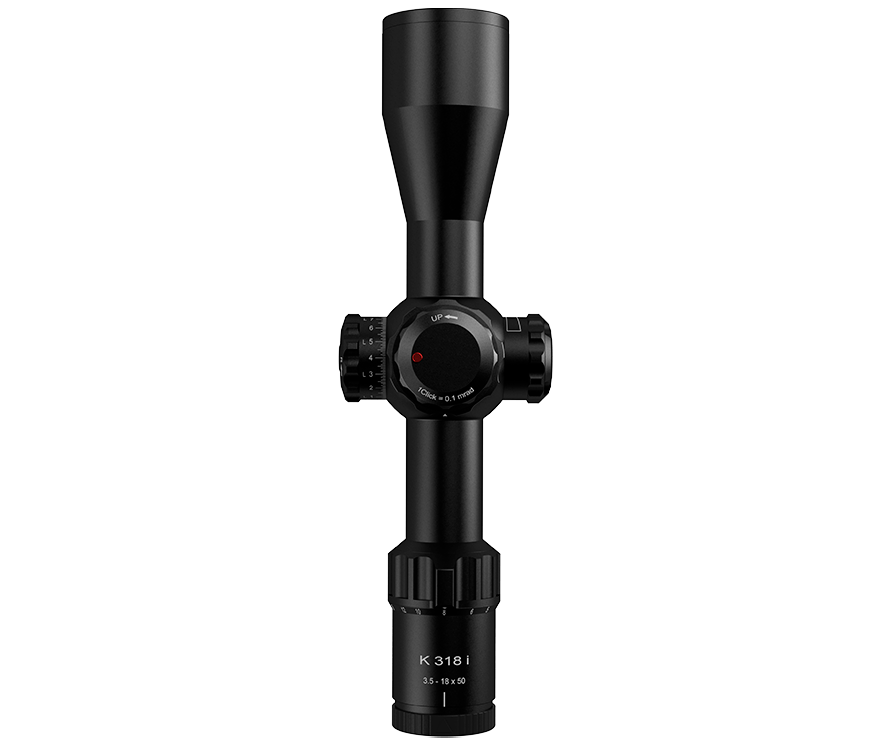

Kahles K318i 3,5-18x50i

Product Features

• Ultrashort and lightweight riflescope for demanding shooters
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Wide field of view and exceptional high contrast image
• Innovative TWIST GUARD windage (patented)

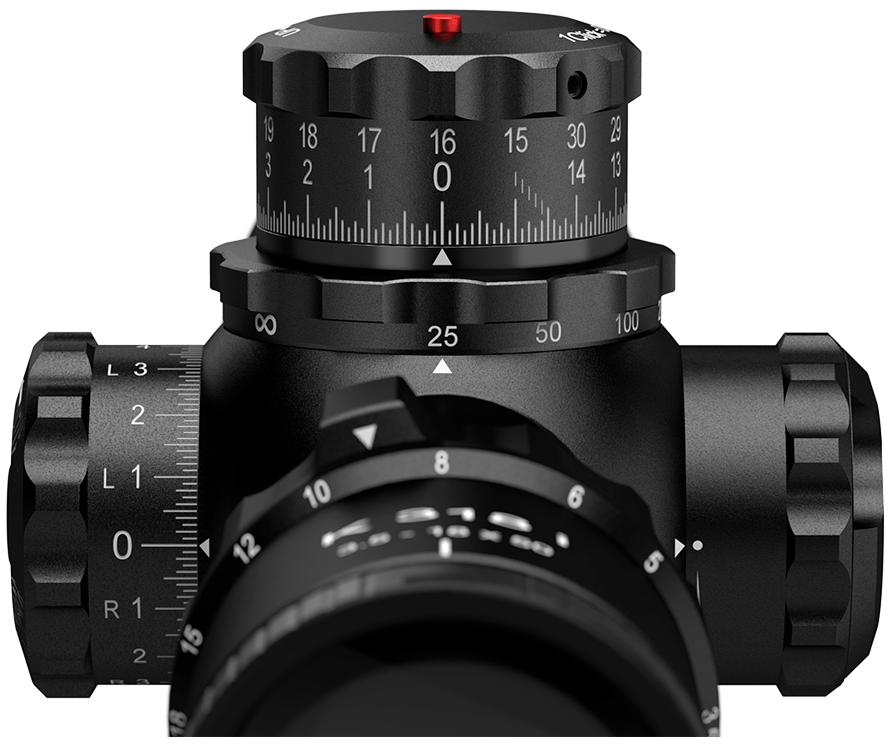

• Parallax wheel integrated into the elevation turret (patented) (25 m to ∞)
• Precise illuminated reticles in 1st focal plane

Product Datasheets

Download Product Datasheet (opens in new browser tab)

Download SKMR4 Reticle Datasheet (opens in new browser tab)

Product Features

1st Focal Plane

When viewing the reticle in the first image plane, the reticle size also changes when the magnification is changed. The bar spacing and the coverage range remain the same.

Main tube 34 mm

The main tube has a diameter of 34 mm which is the standard for tactical scopes.

Adjustment direction CCW

Elevation and windage are working counter-clockwise (= ccw).

Zero Stop

The Zero Stop or mechanical stopping point is 3 or 4 clicks below the zero indicator and can be activated after having zeroed the scope. This feature allows to find intuitively and quickly the zero indicator (e.g. in bad light conditions) and to adapt perfectly to special circumstances, such as e.g. high temperatures or very close targets.

TWIST GUARD windage

Unique TWIST GUARD windage (patented)

The innovative TWIST GUARD windage with it’s freely rotating end cover, reliably prevents accidental movement of the windage. This simple solution not only protects the windage from accidental movement, it also allows the shooter fast and unhindered handling of the windage without the need for cumbersome “locking” and “unlocking”.

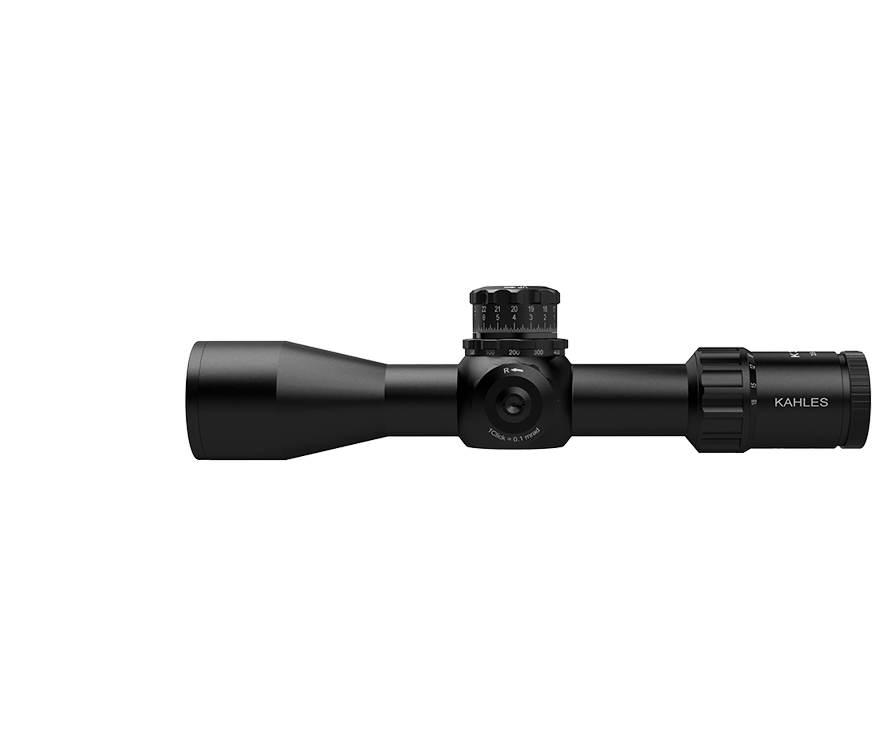

Windage left or right

Superior handling and ergonomics thanks to the unique arrangement of operating elements

Due to the unique arrangement, all operating elements can easily and comfortably be operated with the intuitively preferred hand. Without having to reach over the riflescope or having to move out of the shooting position, all relevant information is always in the visual field. All riflescopes of the K-series have the parallax wheel integrated into the elevation turret.

The patented central arrangement on top of the riflescope makes right and left-handed operation equally comfortable. Ergonomically, the windage is perfectly placed on the left side for right-handed shooters and on the right side for left-handed shooters.

MOA or MIL

Depending on the model the clicks are in MOA or in MRAD. ¼ MOA corresponds to a shift of the point of impact of 0.741 cm/ 100 m. 0.1 MRAD corresponds to a shift of the point of impact of 1 cm/ 100 m.
